Description

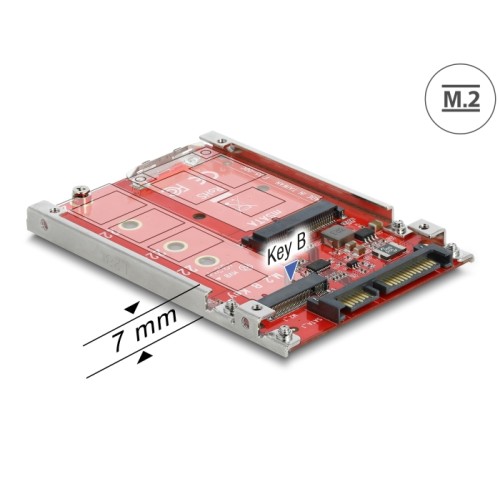

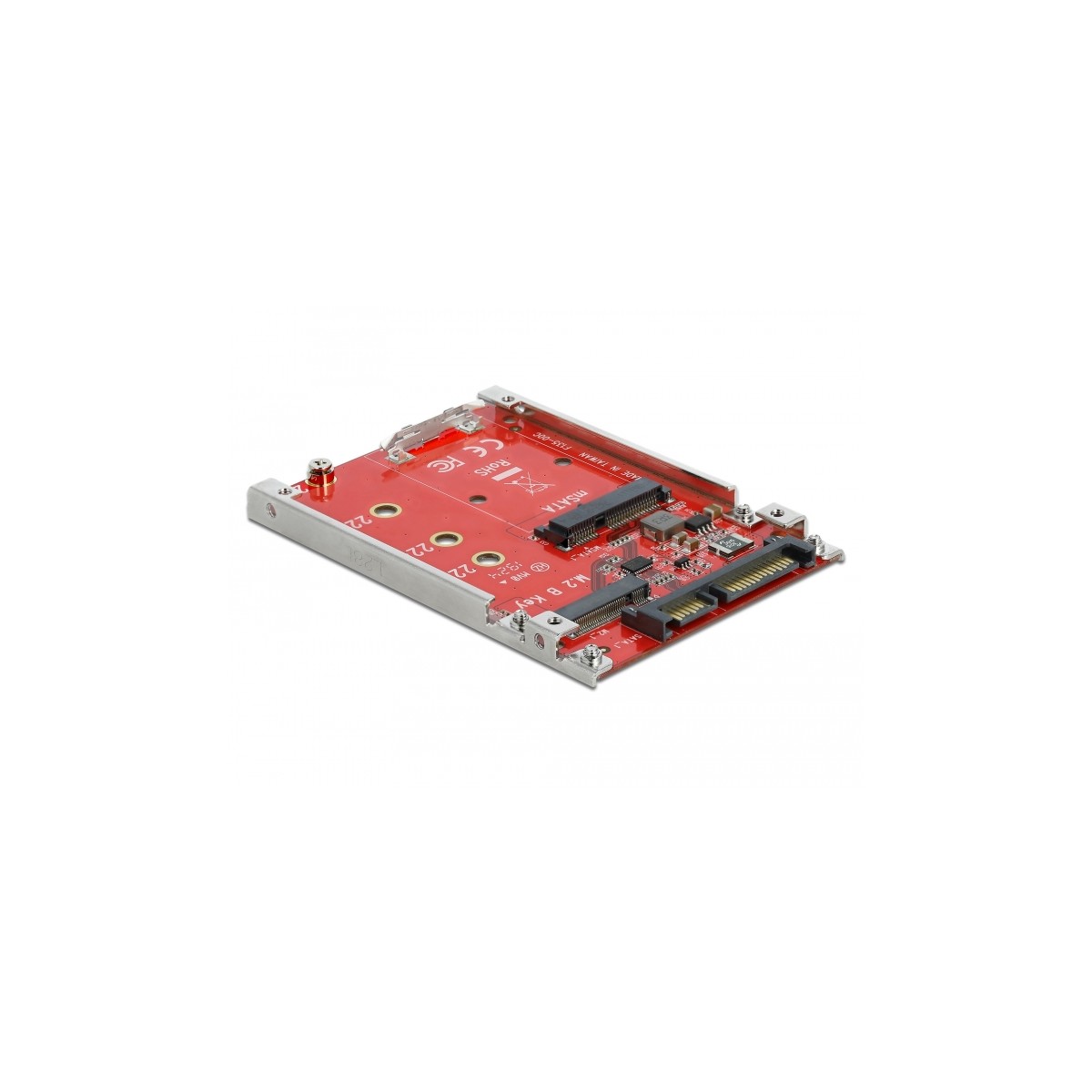

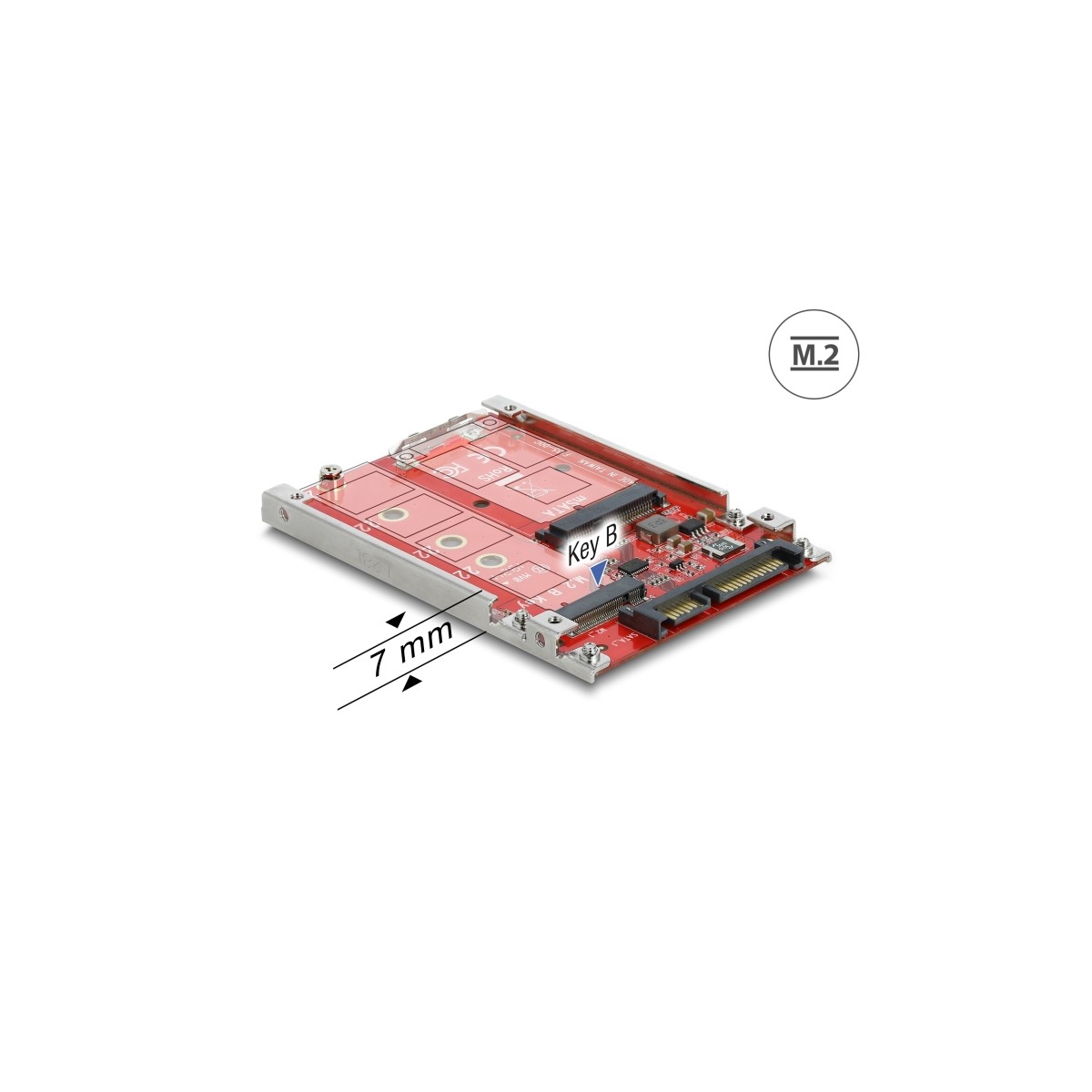

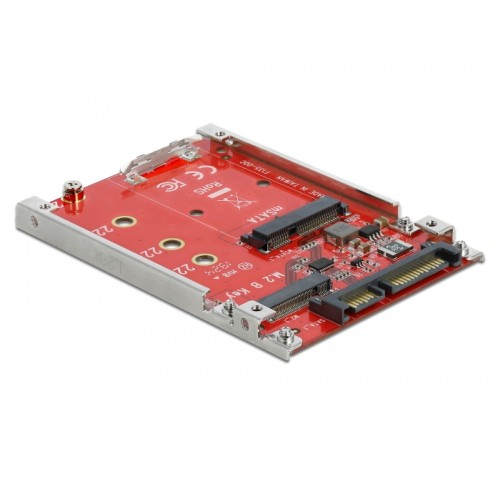

This converter by Delock enables the connection of an M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA module in full size or half size format. If both slots are occupied, only the M.2 SSD can be used. The converter can be installed into the system through the SATA interface.
Specification
• Connector:
1 x SATA 6 Gb/s 22 pin plug >
1 x 67 pin M.2 key B slot
1 x mSATA slot (half size / full size)
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based
on SATA
• Maximum height of the components on the module: 1.5 mm application of double-sided
assembled modules supported
• Maximum power for modules: 4 A
• Bootable
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.x / Kernel 4.x.x
• A free SATA 22 pin interface
Package content
• Converter
• 2.5″ frame

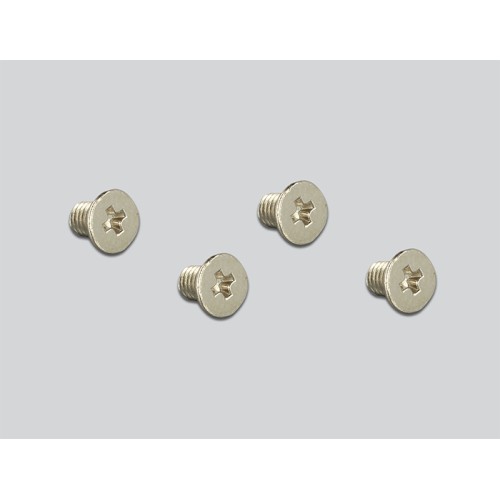

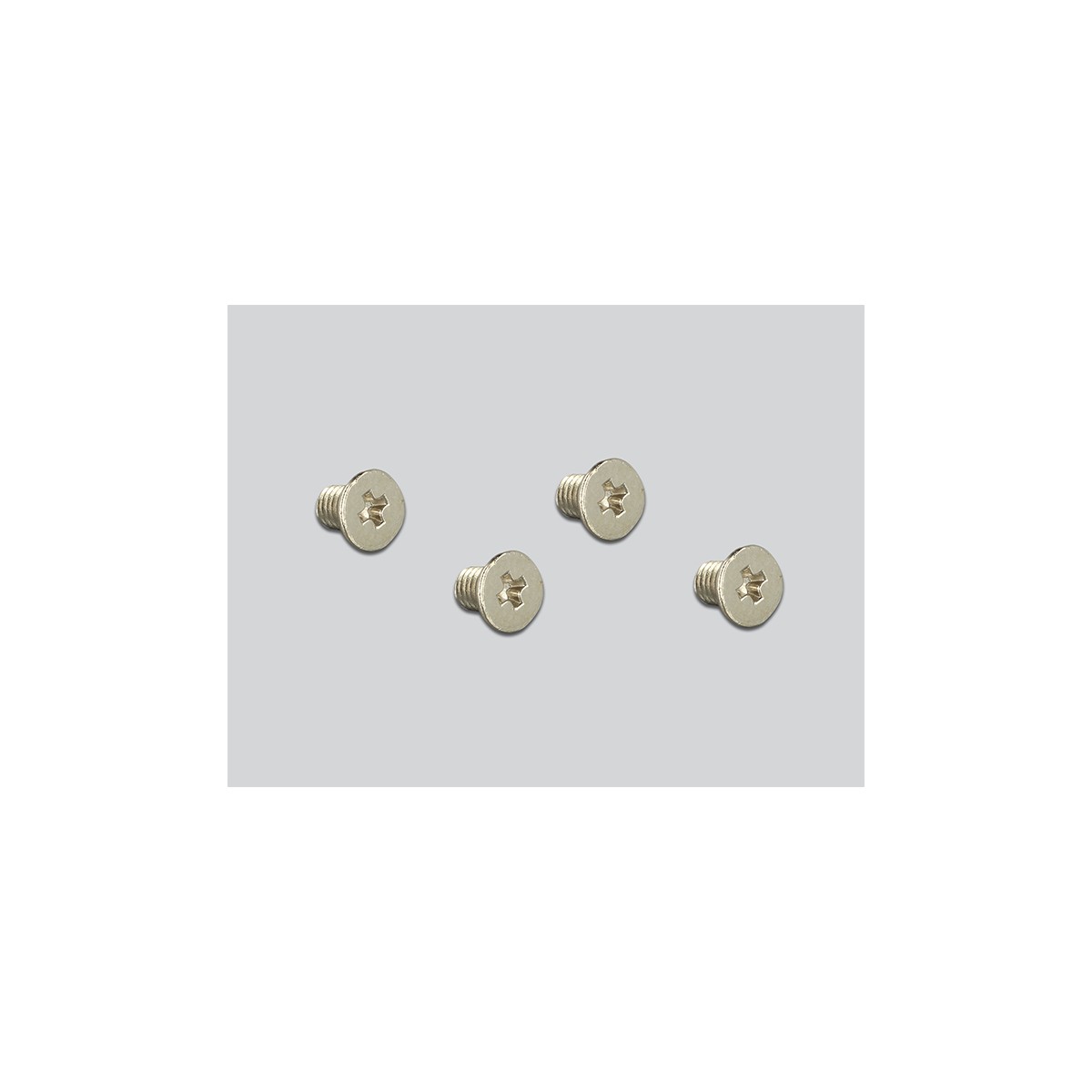

• Mounting material
• User manual
Package
• Retail Box
