Description

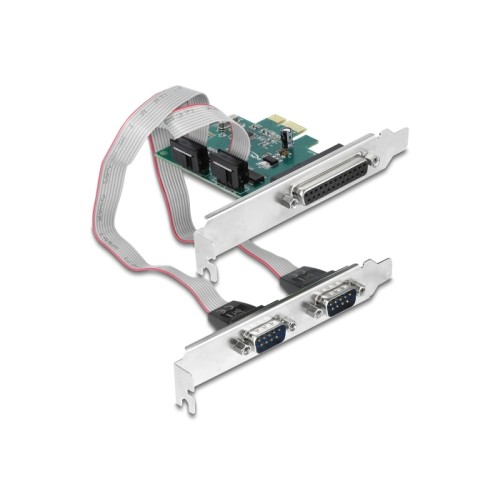

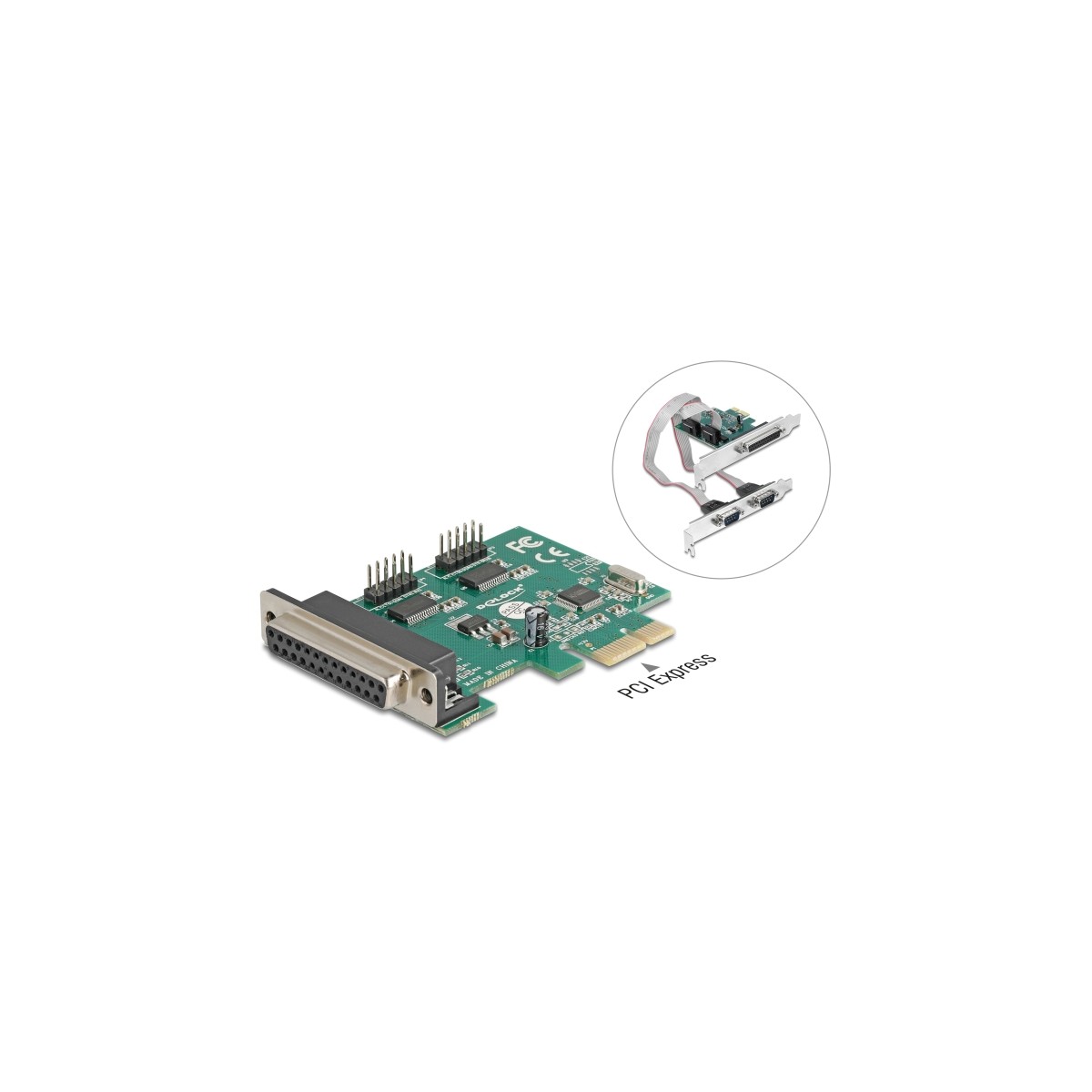

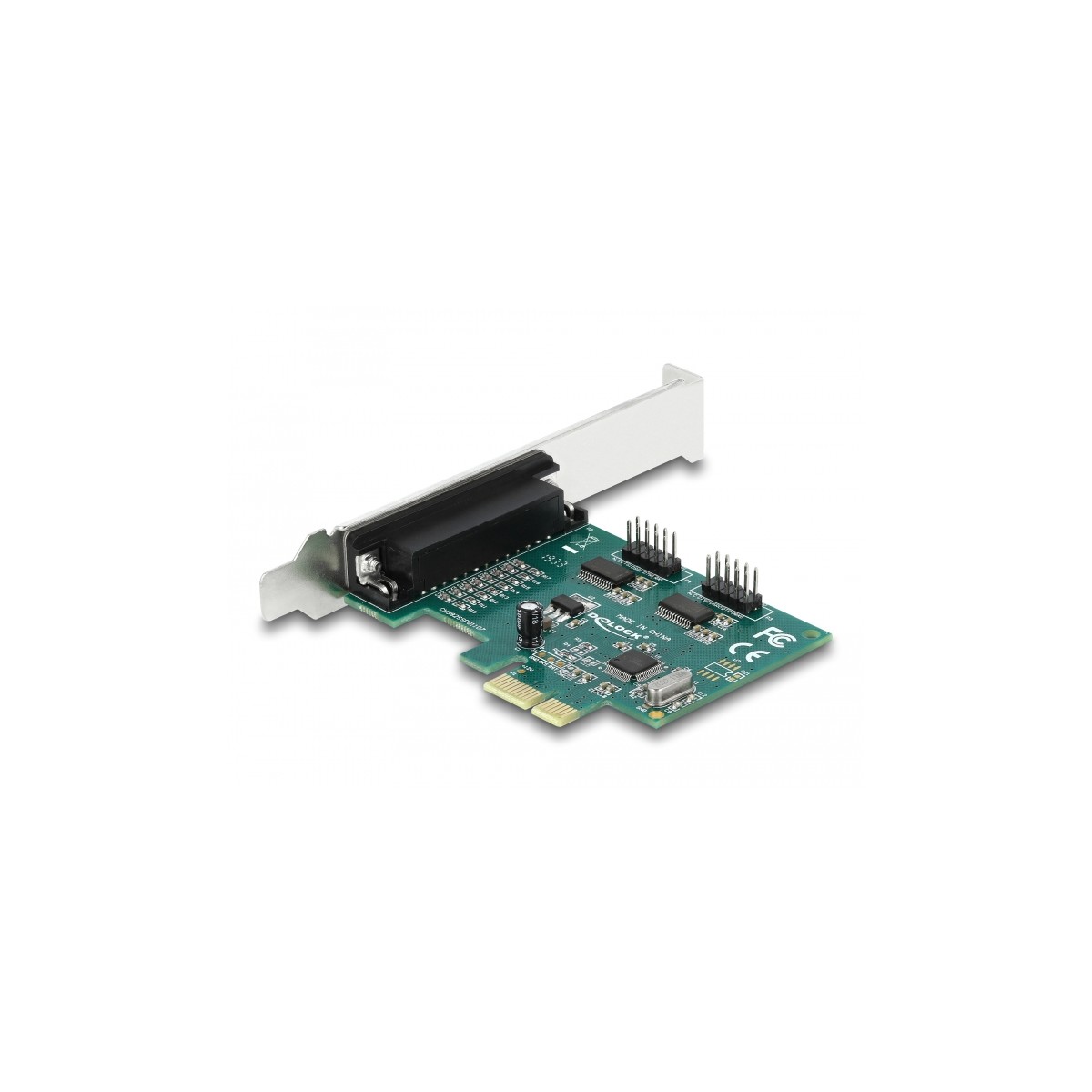

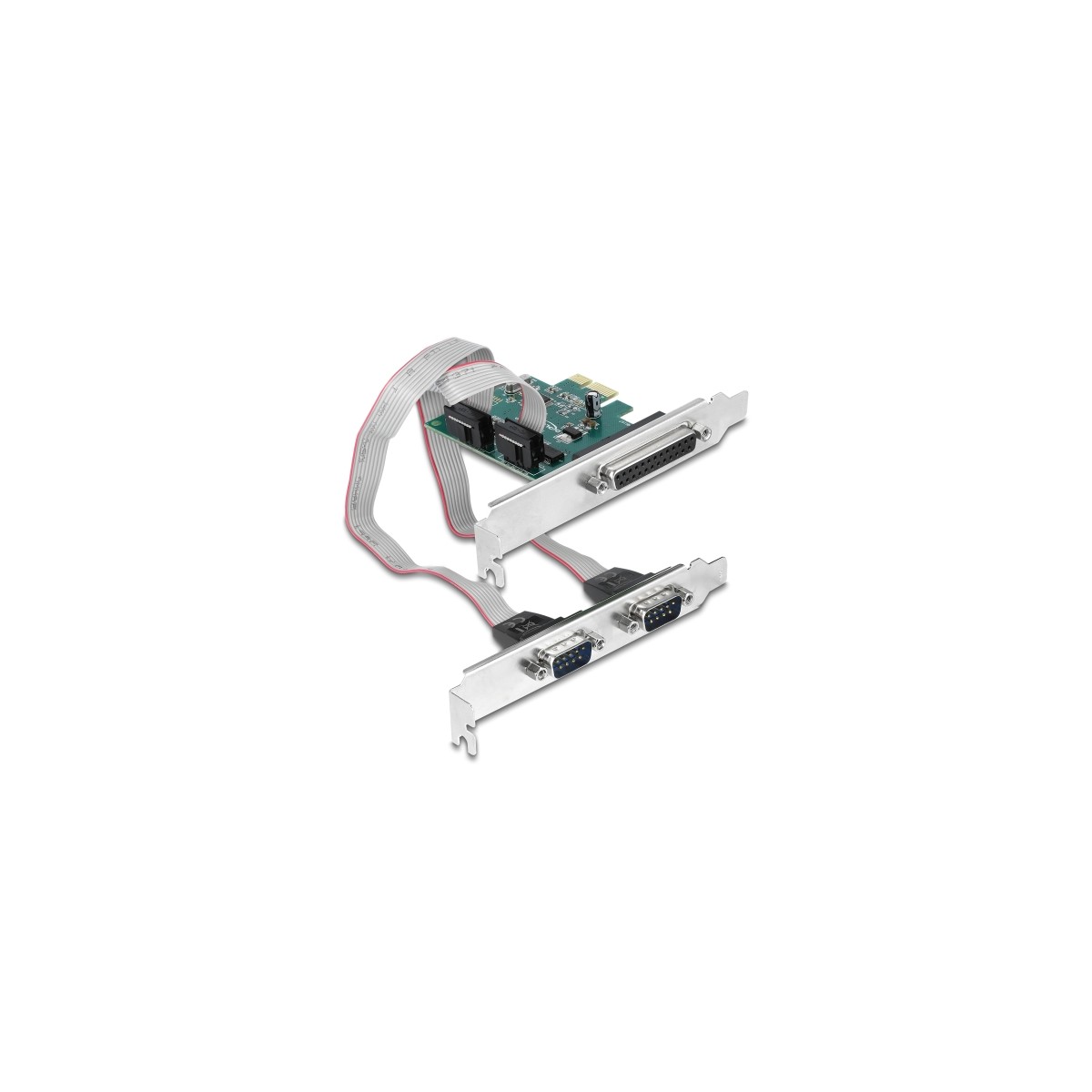

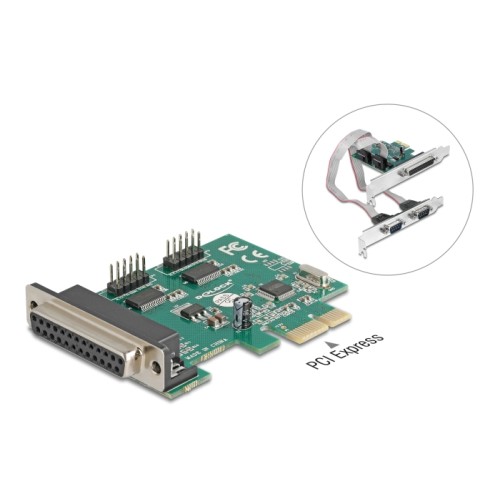

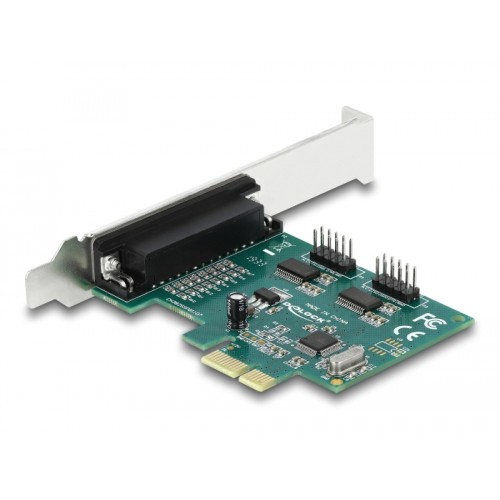

The PCI Express card by Delock expands a PC by two external serial ports as well as one external parallel port. Different devices such as scanner, printer, mouse etc. can be connected to this card.
Specification
• Connectors:
external:
2 x serial RS-232 DB9 male (separate rear bracket)
1 x Parallel DB25 female
internal:
1 x PCI Express x1, V1.1
• Chipset: WCH CH384L
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 79 x 59 x 11 mm
• Serial specification:
• Data transfer rate up to 460.8 Kbps
• FIFO: 256 byte
• Compatible with 16C950 UART
• Parallel specification:
• Data transfer rate up to 1.5 Mbps
• FIFO: 256 byte
• Supports SPP, Byte and ECP mode
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• Slot bracket

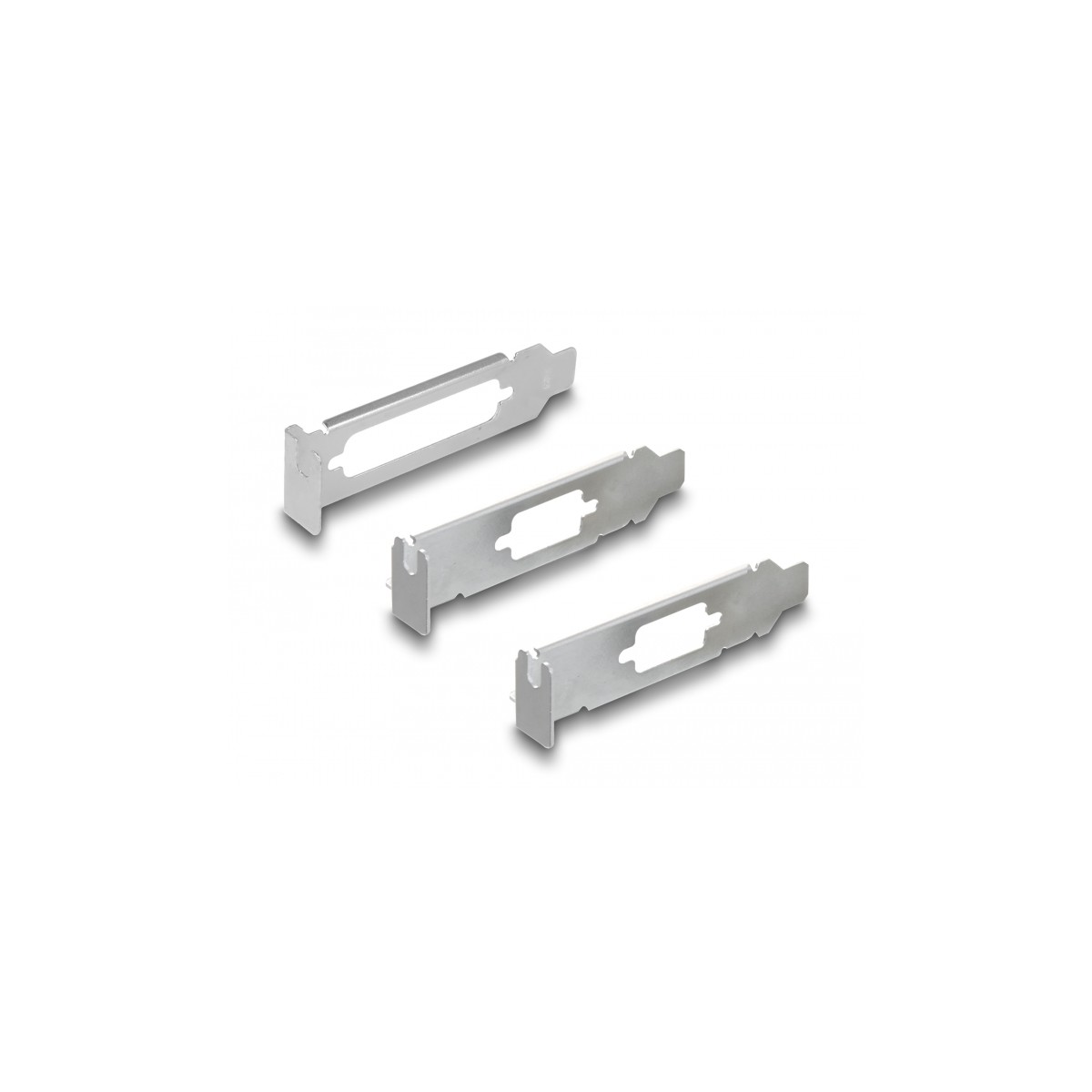

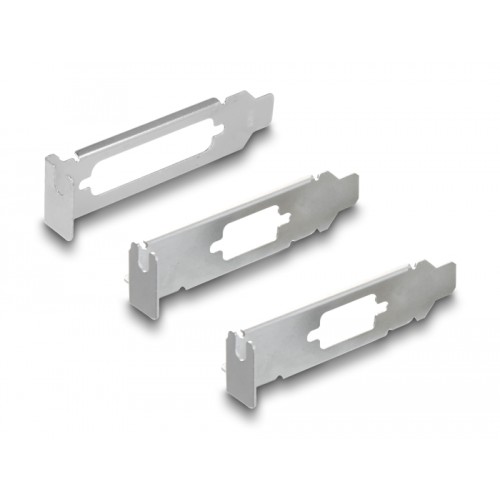

• 3 x low profile bracket
• Driver CD
• User manual
Package
• Retail Box
