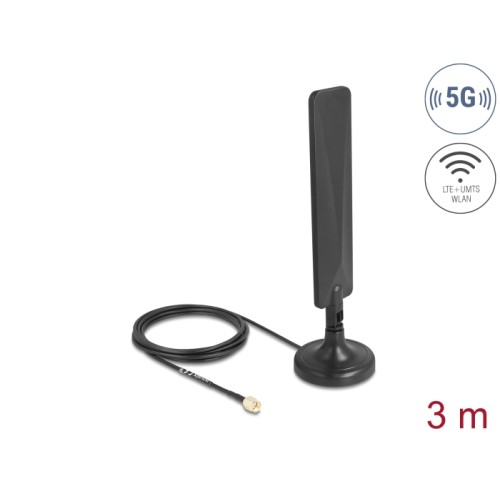

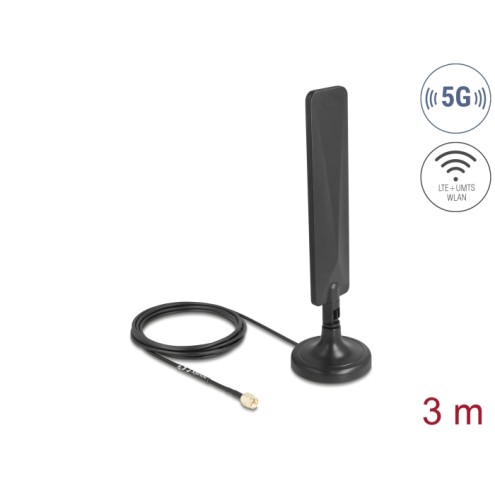

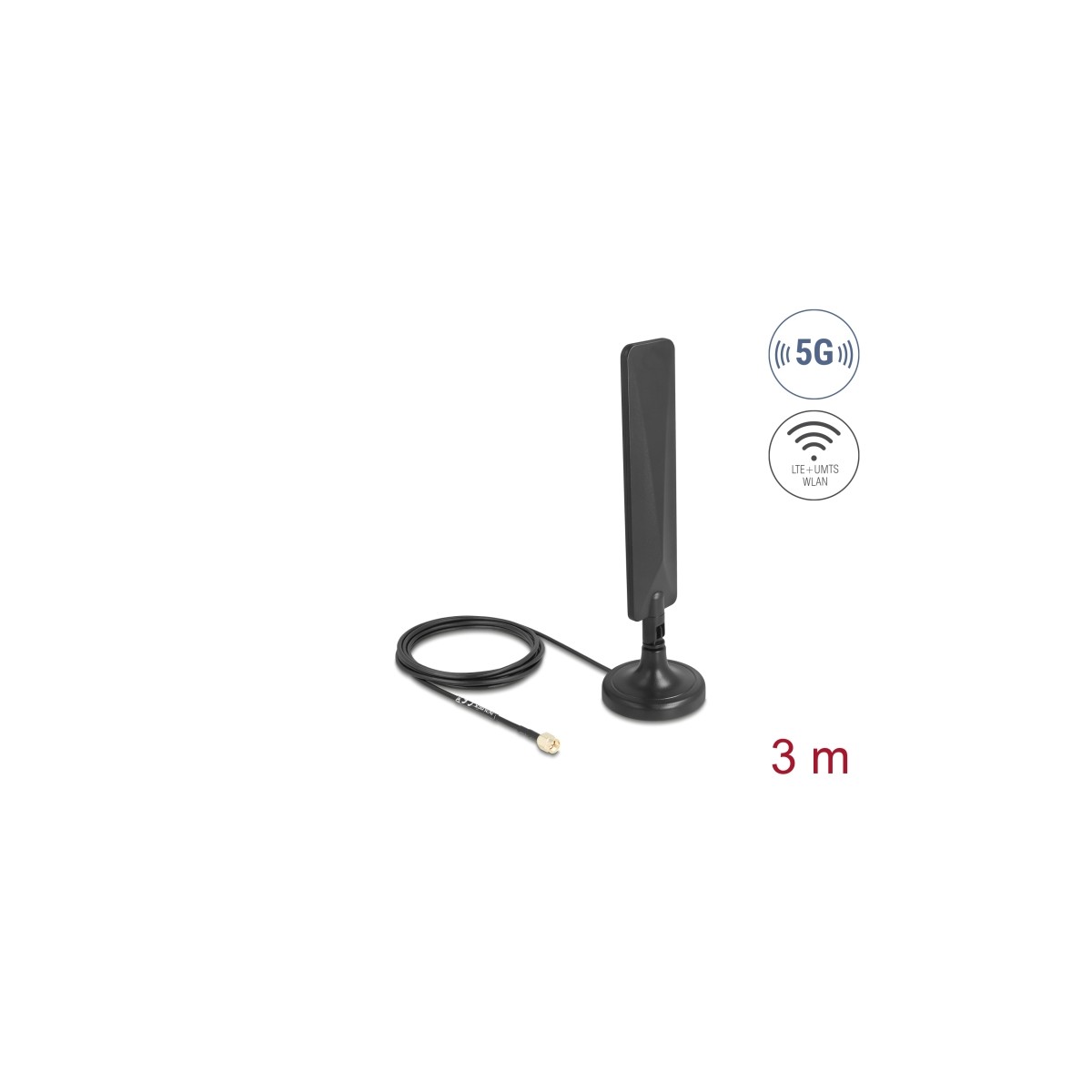

Delock 5G LTE Antenna SMA plug 3 dBi omnidirectional with connection cable RG-174 3 m with tilt joint with magnetic base black
10040
Description
This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
Specification
• Connector: 1 x SMA plug
• Frequency range:
600 - 960 MHz
1710 - 2700 MHz
3300 - 4000 MHz
5150 - 6000 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Cable type: RG-174
• Cable attenuation: 0.9 dB @ 800 MHz per meter
• Cable colour: black
• Cable length: ca. 3 m
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 70 °C
• Housing material: ABS
• Colour: black
• Dimensions:
antenna (LxWxH): ca. 205 x 60 x 11 mm
base (DxH): ca. 31 x 61 mm
System requirements
• Device with a free SMA jack
Package content
• Antenna
