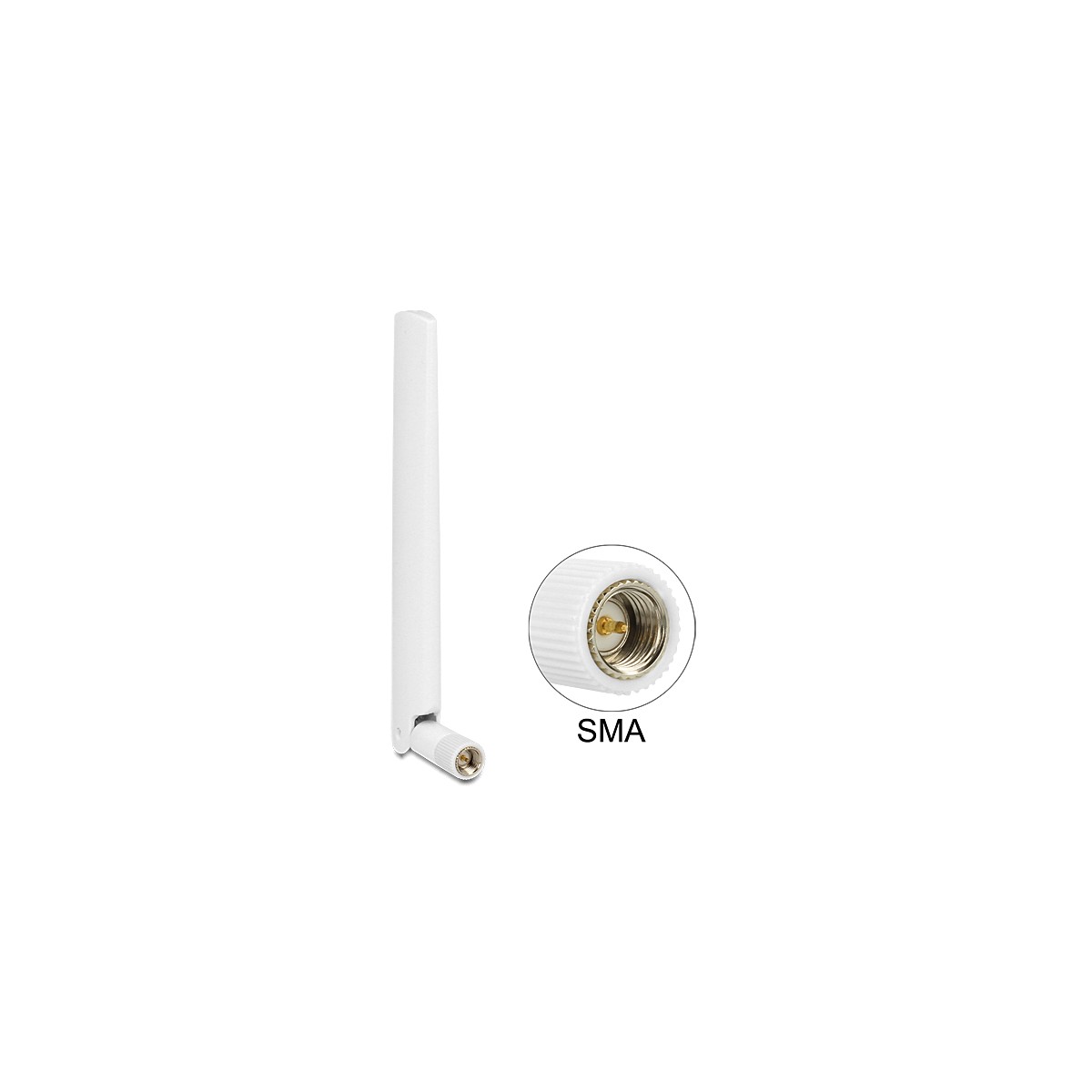

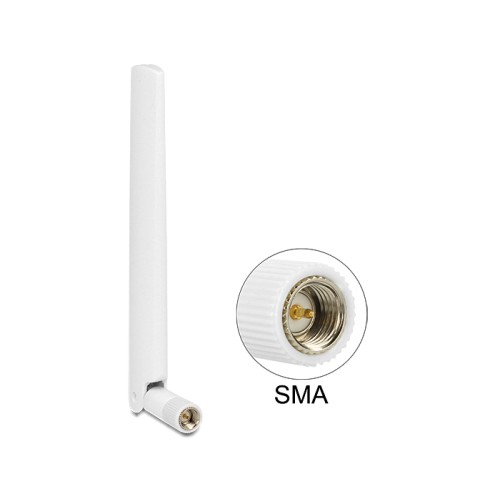

Delock LTE Antenne SMA plug 1 - 2,5 dBi omnidirectional with flexible joint white

Name: Delock LTE Antenne SMA plug 1 - 2,5 dBi omnidirectional with flexible joint white
Brand: Delock
SKU: 88790
Price: 11.4 EUR
Availability: InStock

Reference 88790

Condition New

€11.40

tax excl.

Do you need information or want to request a customized quote?
Click here

Fast ShippingFast and secure shipping worldwide.

Custom Industrial HardwareWe manufacture specific custom-made computers in our laboratory.

Secure PaymentsSimple, easy, and secure payment methods.

Certified StoreStore with ISO 9001 & 14001, IQNET, ESG AA- certification.

Description
Product Details

Description
This GSM/UMTS/LTE antenna can be connected to a GSM/UMTS/LTE device with SMA interface, in order to receive and send signals. Due to the very small diameter of the SMAconnector, it is very easy to operate on different routers.

Specification
• SMA plug screw interface
• With flexible joint, rotatable
• Frequency range/ gain:  790 ~   870 MHz, -1.0 ~ 0.0 dBi
                                        1710 ~ 1880 MHz, -0.5 ~ 0.5 dBi
                                        2500 ~ 2690 MHz,  0.5 ~ 2.5 dBi
• LTE band 3/7/9/20
• GSM1800/UMTS
• WLAN 2.4 GHz
• Bluetooth
• ZigBee
• VSWR: 3.0 max.
• Polarisation: linear, vertical
• Impedance: 50 Ohm
• ABS UV resistant
• Operation temperature: -10 °C to +55 °C
• Length incl. flexible joint 137.70 mm
• Ø:                                    10.00 mm (SMA plug)

Package content
• Antenna

Package
• Poly bag

Condition New

EAN13 4043619887903
