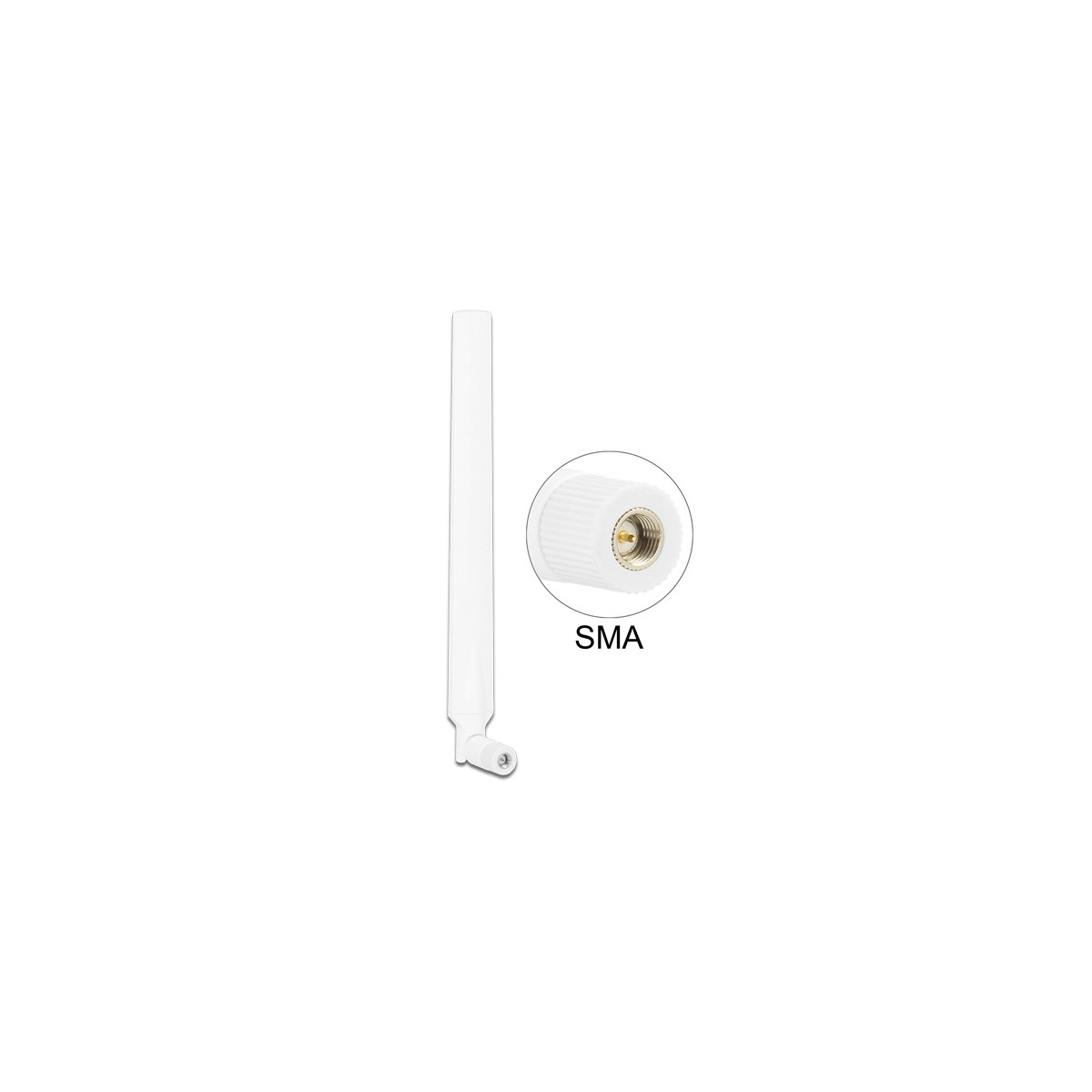

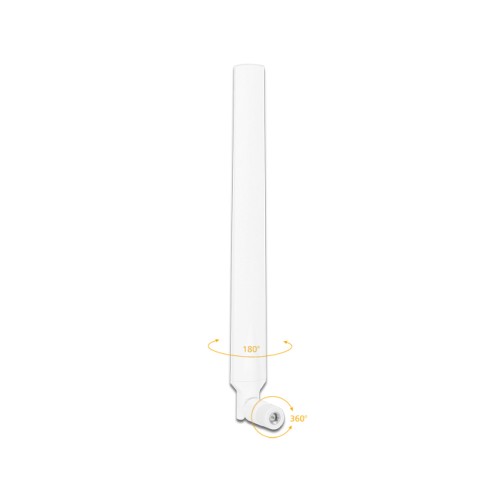

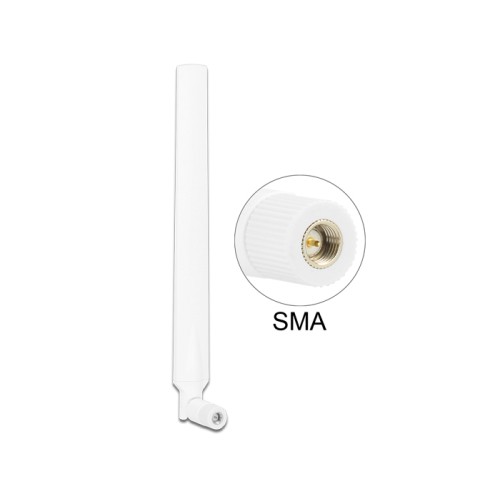

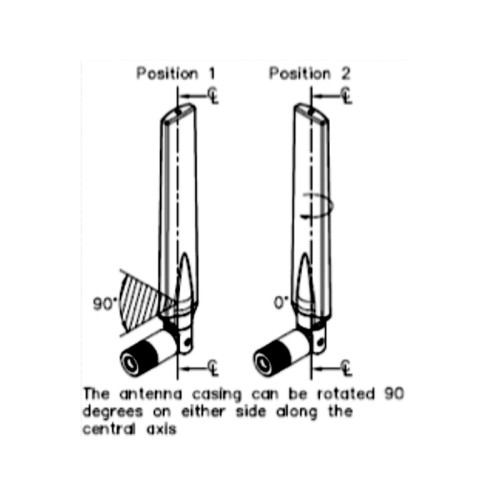

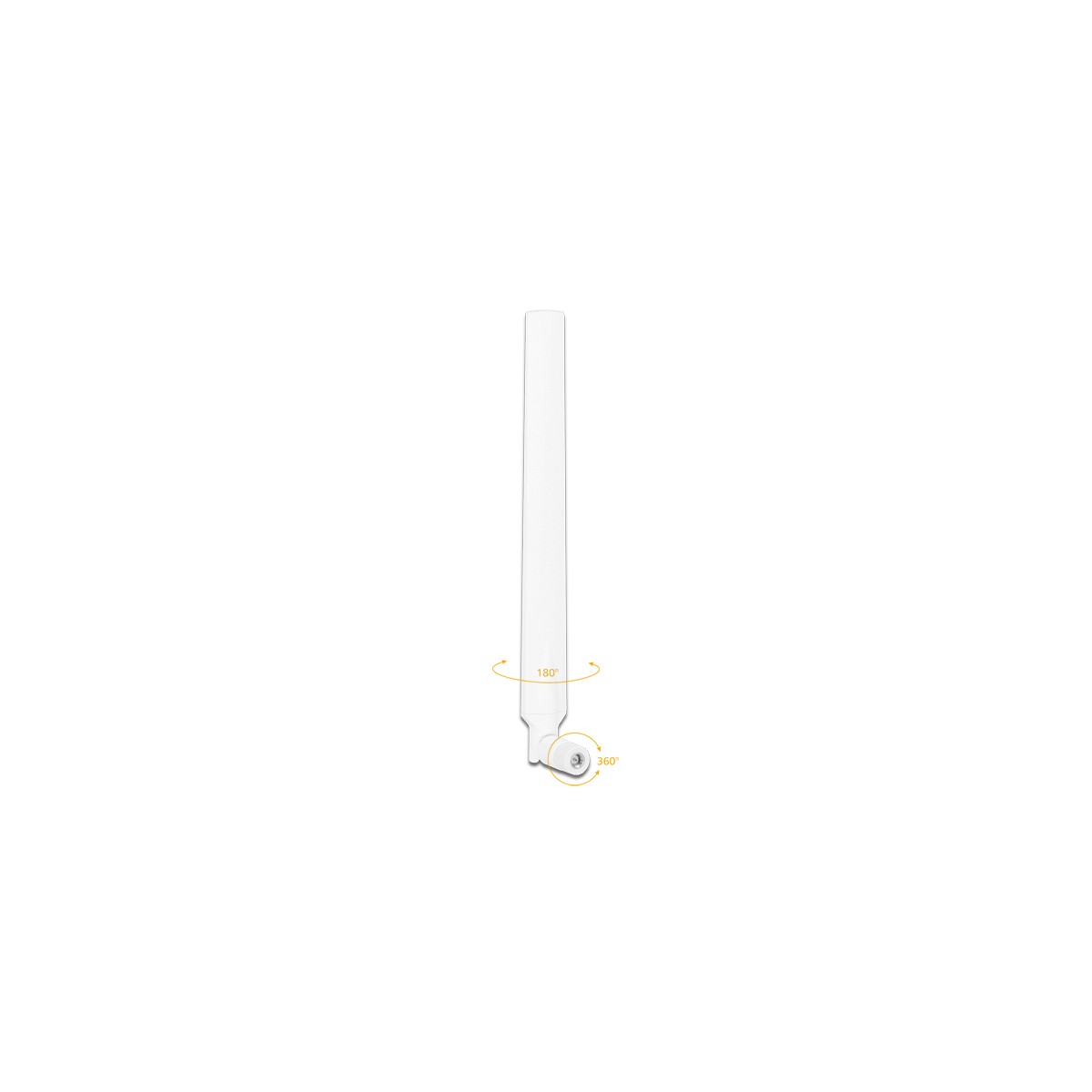

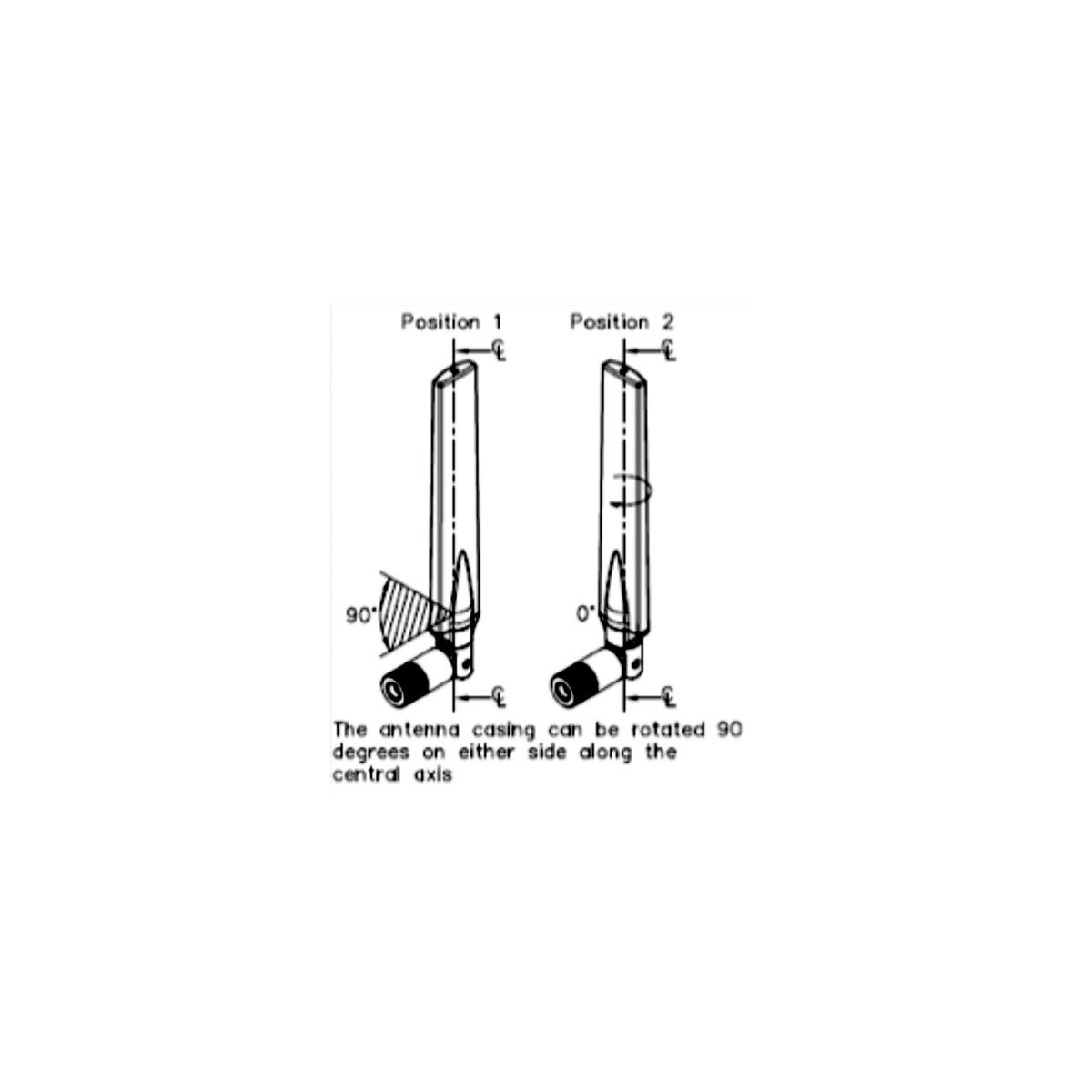

Delock LTE Antenna SMA plug 0 - 4 dBi omnidirectional rotatable with tilt joint white

Delock LTE Antenna SMA plug 0 - 4 dBi omnidirectional rotatable with tilt joint white

Name: Delock LTE Antenna SMA plug 0 - 4 dBi omnidirectional rotatable with tilt joint white
Brand: Delock
SKU: 88977
Price: 20.57 EUR
Availability: InStock

Reference 88977

Condition New

€20.57

tax excl.

Do you need information or want to request a customized quote?
Click here

Fast ShippingFast and secure shipping worldwide.

Custom Industrial HardwareWe manufacture specific custom-made computers in our laboratory.

Secure PaymentsSimple, easy, and secure payment methods.

Certified StoreStore with ISO 9001 & 14001, IQNET, ESG AA- certification.

Description
Product Details

Description
This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4GHz and ZigBee compatible.

Specification

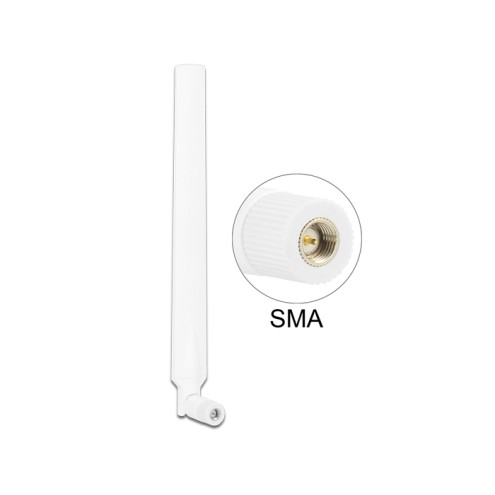

• Connector: SMA plug
• LTE Band: 1/3/7/9/20

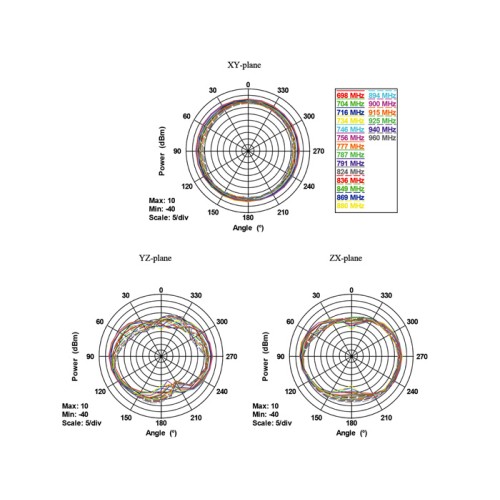

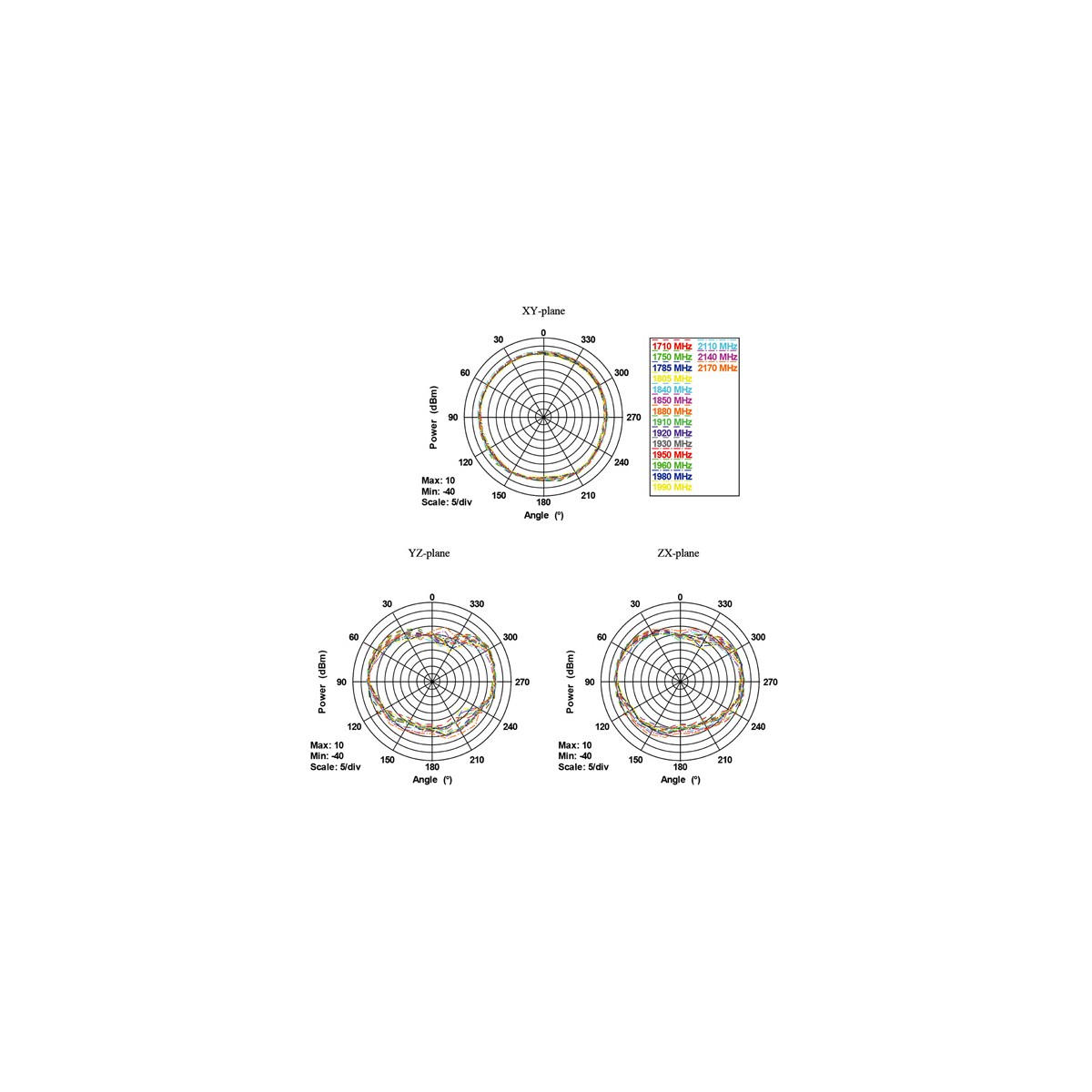

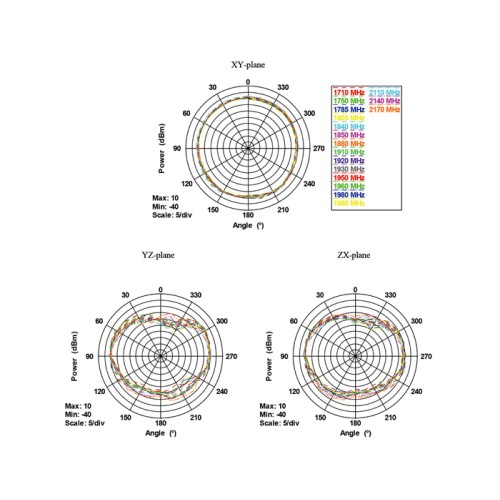

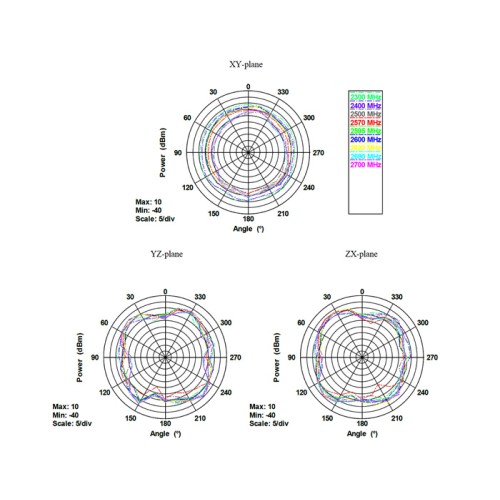

• Frequency range: 698-791 / 824-960 / 1710-2170 / 2300-2400 / 2500-2700 Mhz
• GSM/UMTS/WLAN 2.4GHz/ZigBee

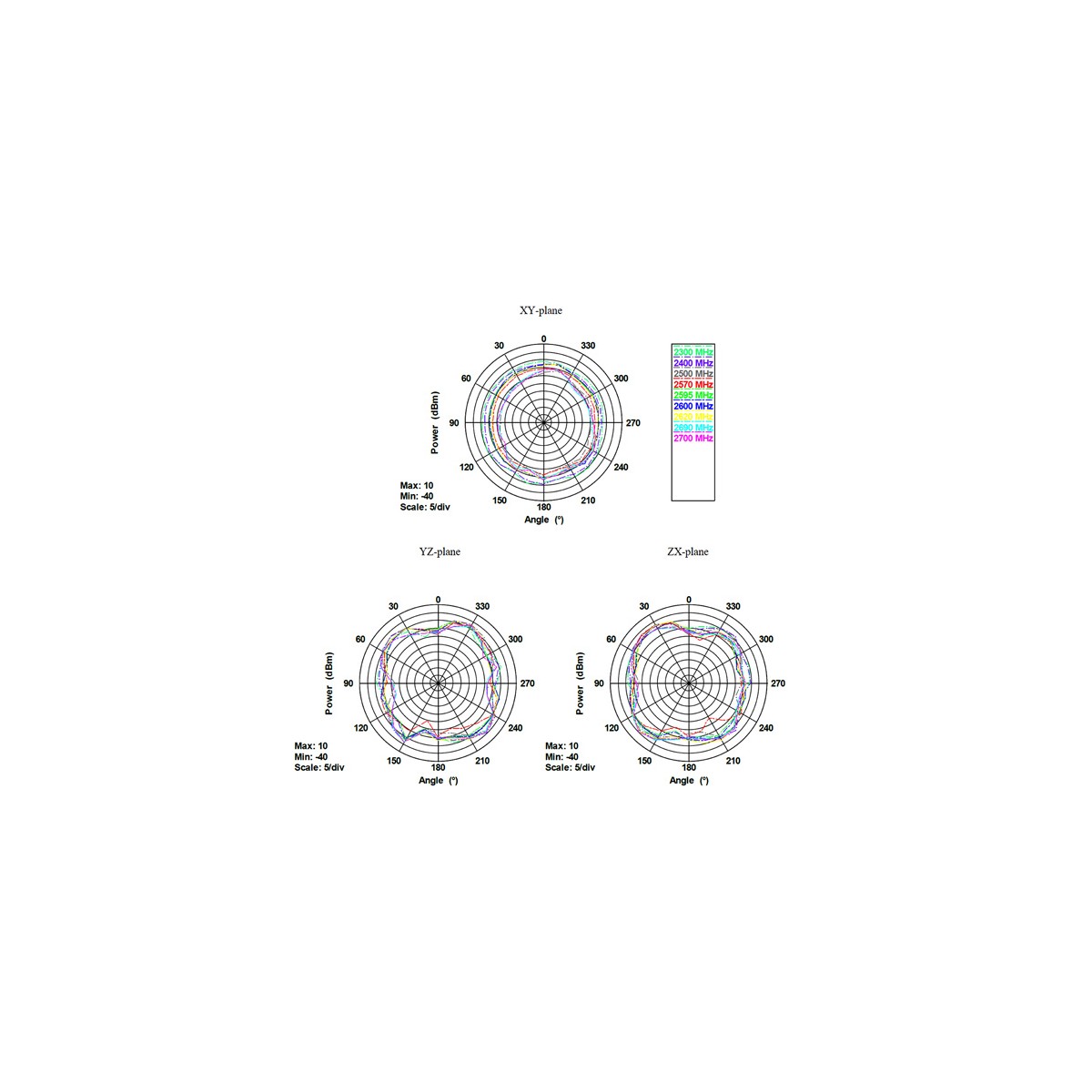

• Gain: 0~4 dBi
• Impedance: 50 Ohm

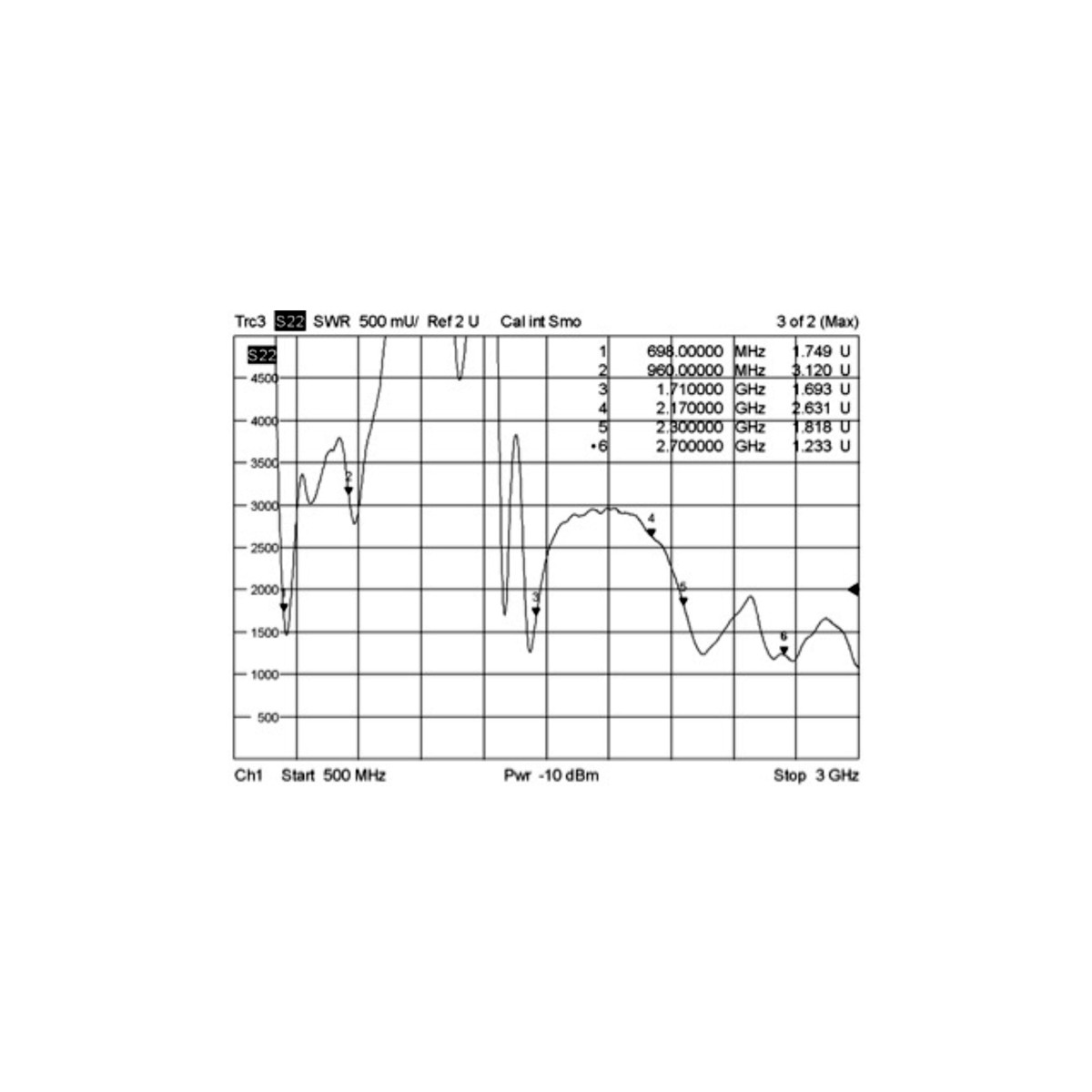

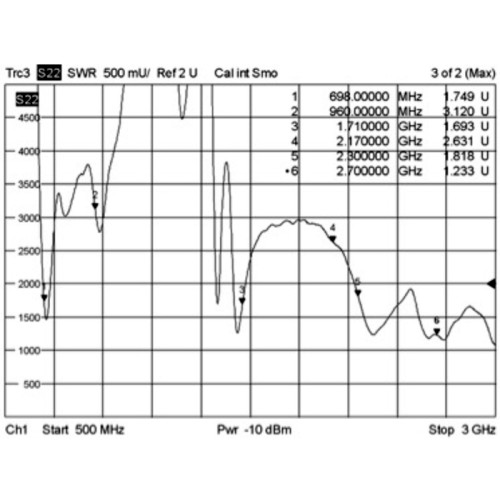

• VSWR: 4.0:1 max.
• Operating temperature: -10°C ~ 55°C
• Housing: ABS UV resistant

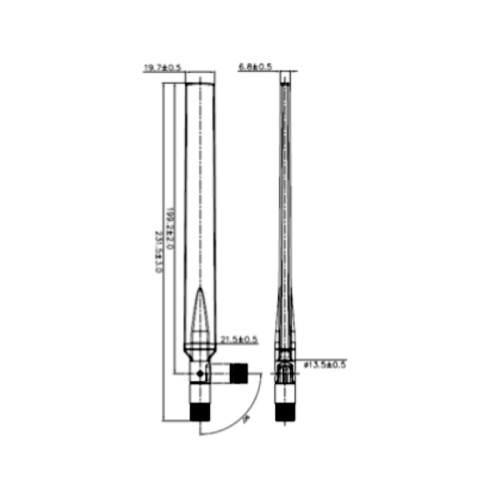

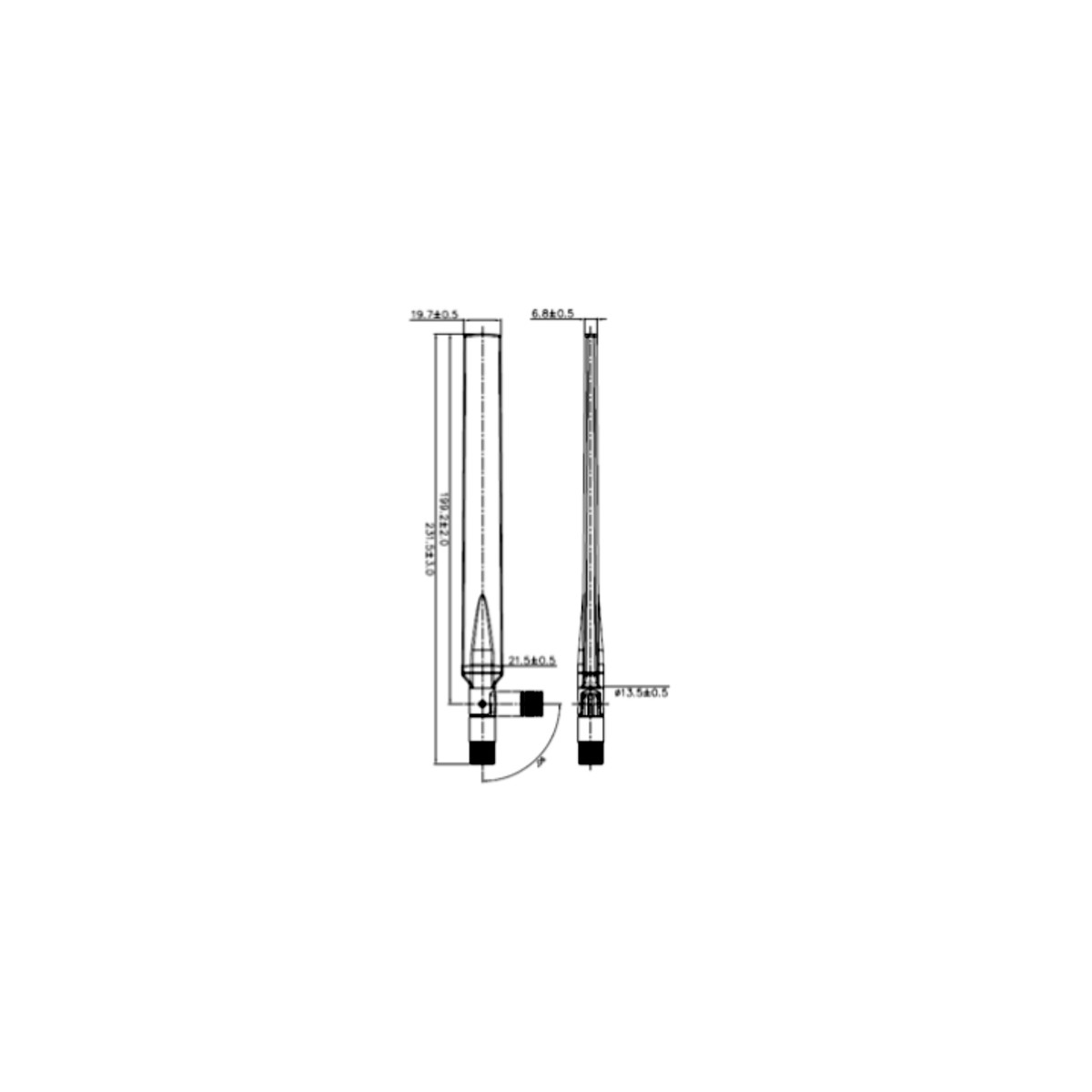

• Dimensions (LxWxH): ca. 231.5 x 21.5 x 6.8 mm
• Diameter SMA: 13.2 mm

System requirements
• A device with free SMA connector

Package content
• LTE antenna

Package
• Poly bag

Condition New

EAN13 4043619889778
