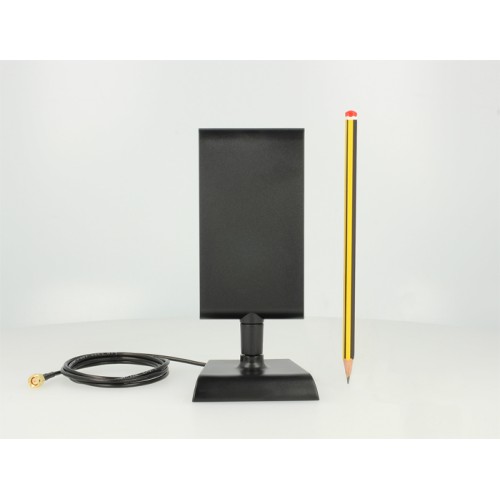

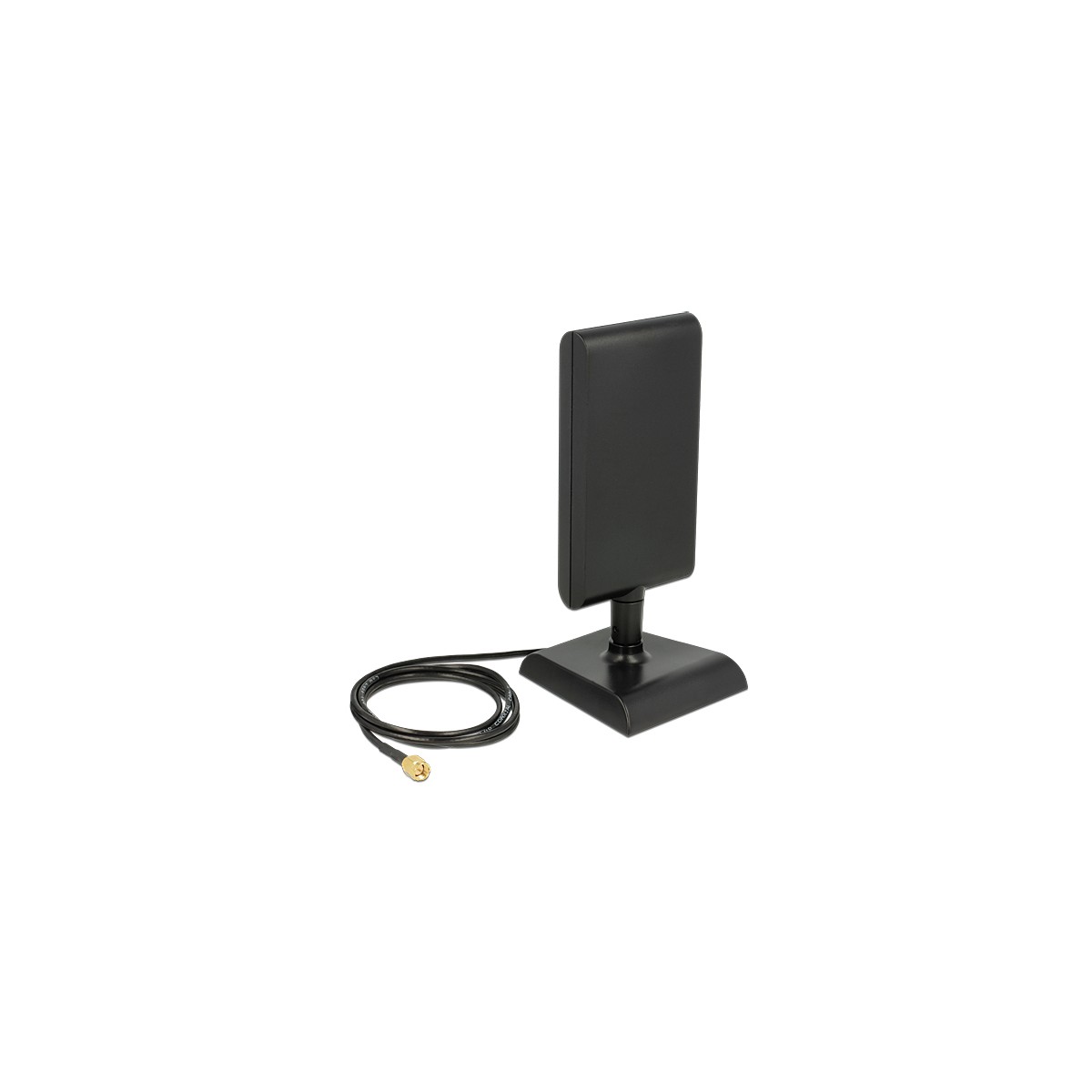

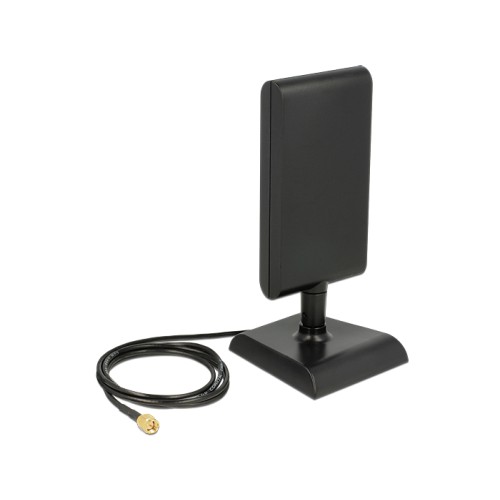

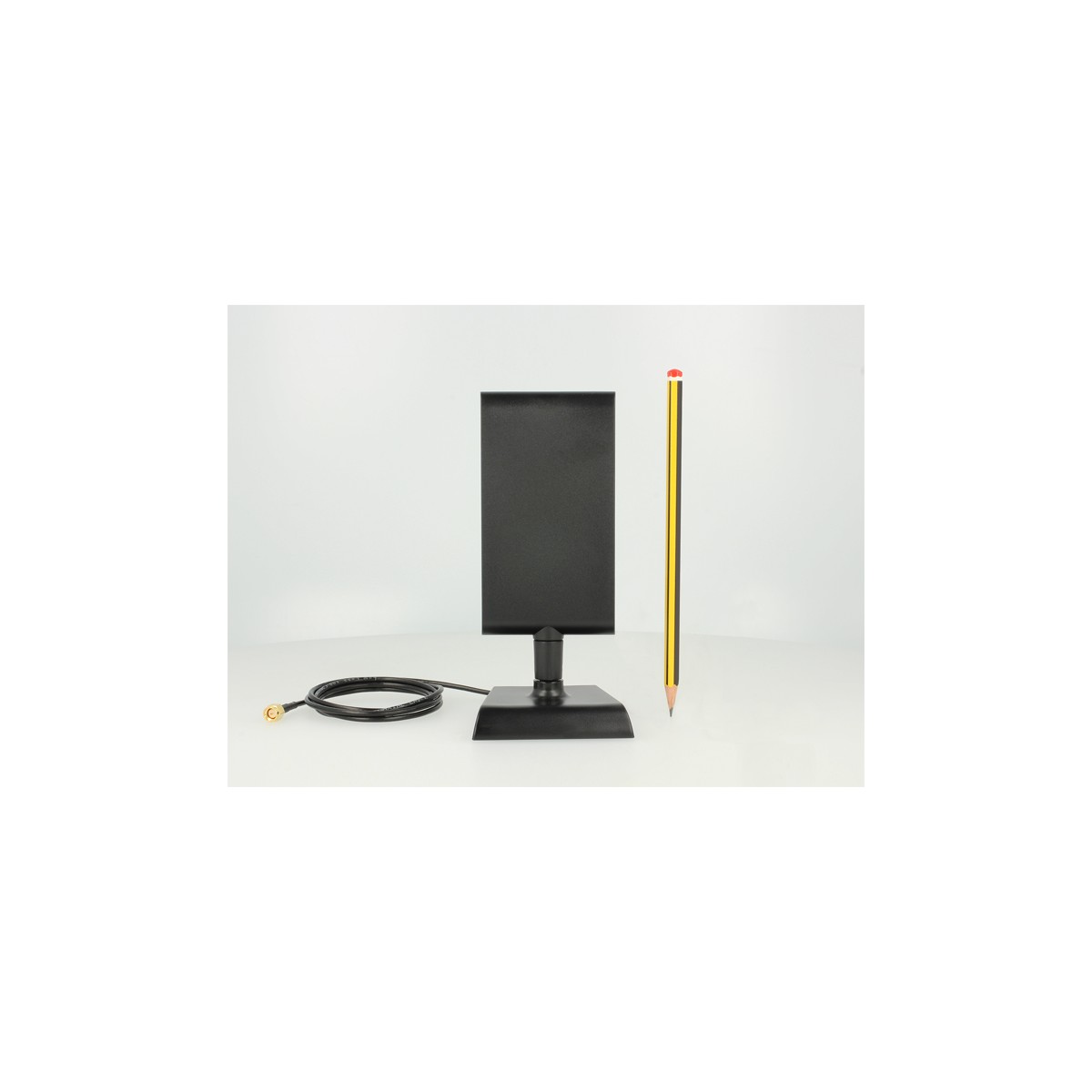

Delock LTE Antenna SMA plug 2 - 4 dBi omnidirectional with magnetic base and connection cable (ULA 100, 1 m) black

Description
This LTE antenna by Delock can be installed indoors and takes advantage of all LTE bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.

Specification
• Connector: SMA plug
• LTE band: 1-10; 12; 13; 17-20; 25-27; 29; 33-39
• Frequency range:
  698 - 787 MHz
  791 - 960 MHz
  1710 - 2170 MHz
  2500 - 2700 MHz
• Compatible to GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 2 - 4 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical

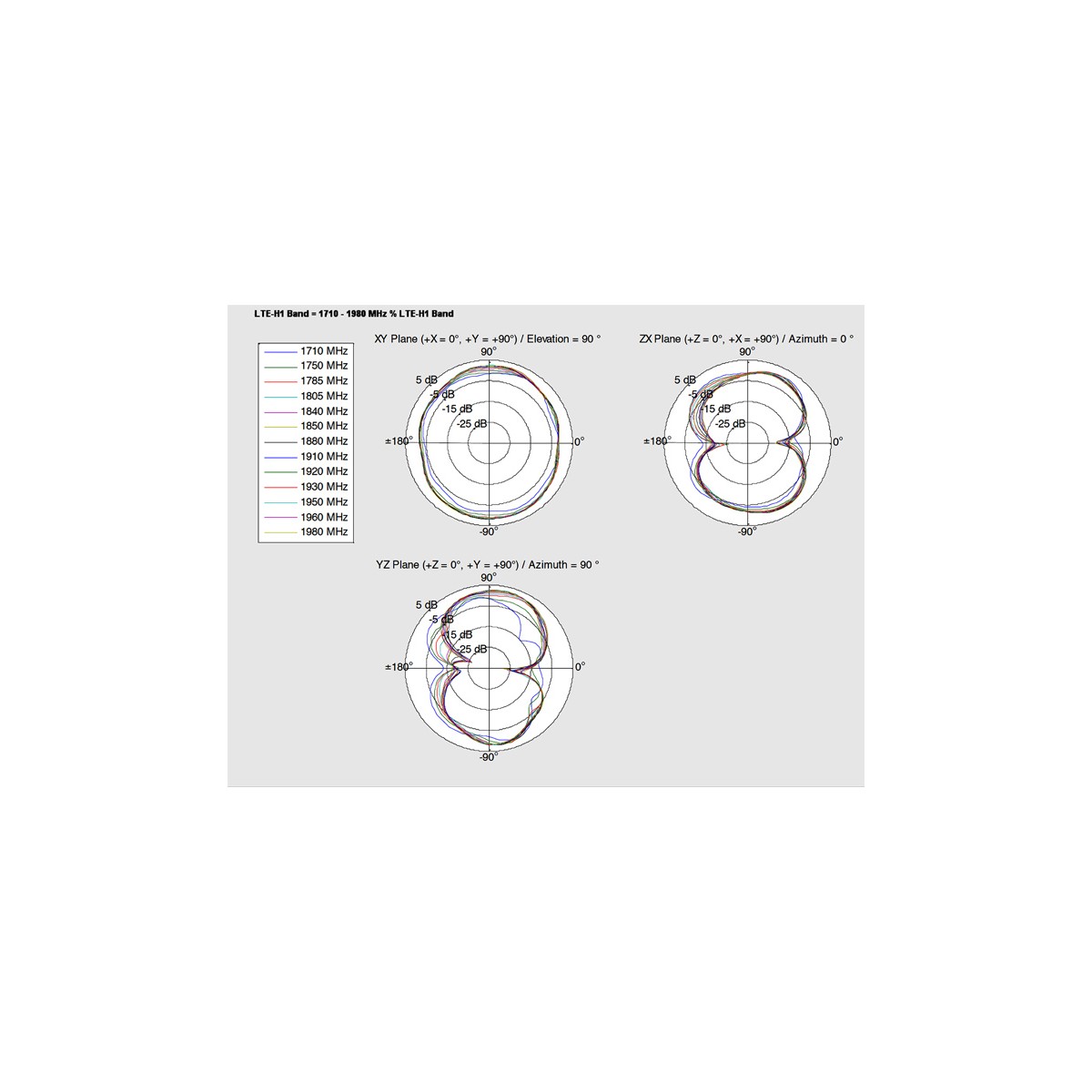

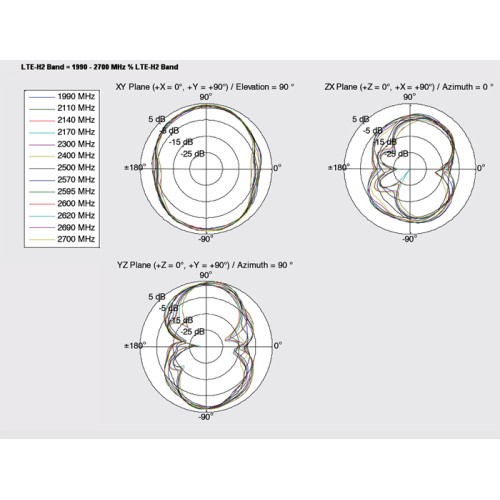

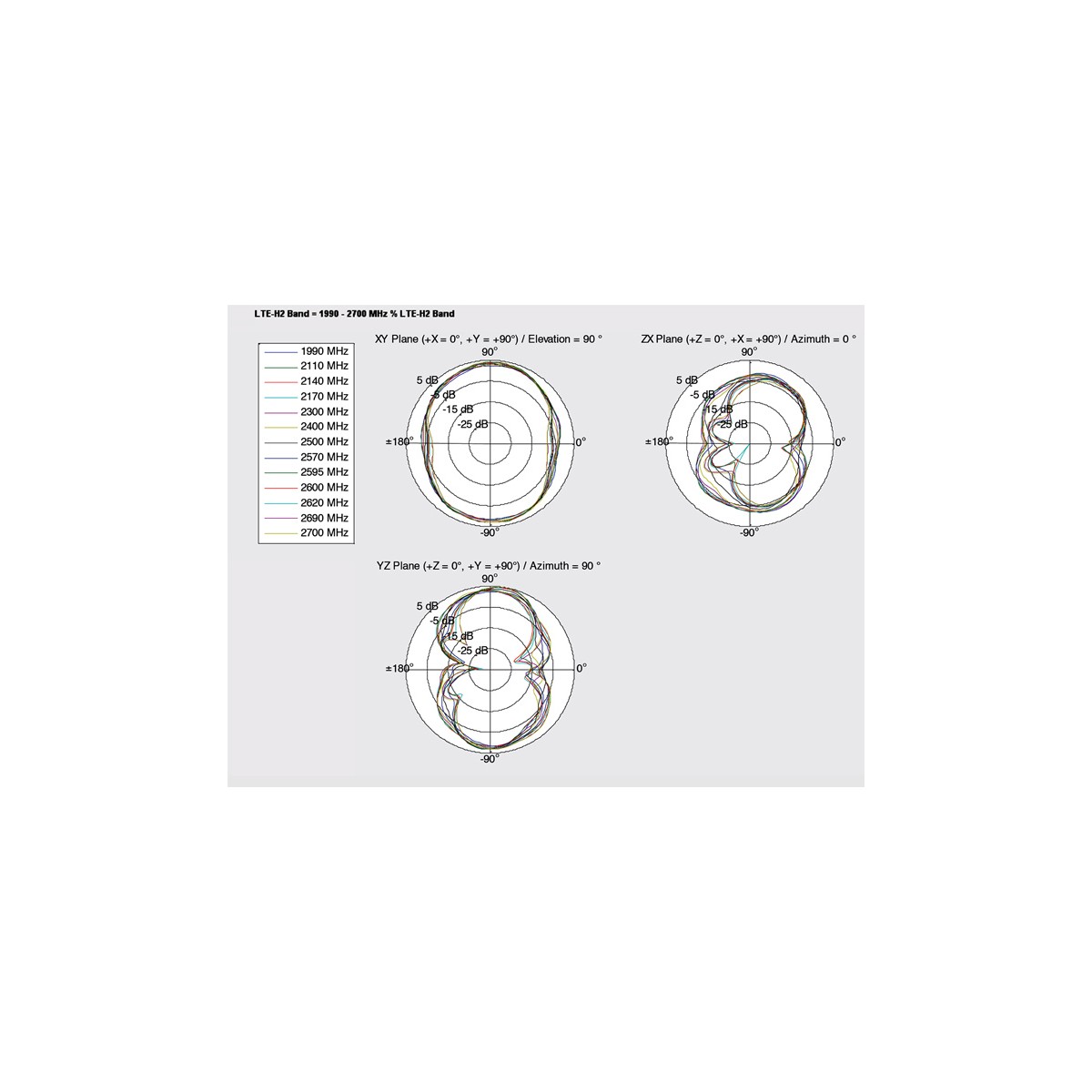

• Horizontal beam angle: 360°

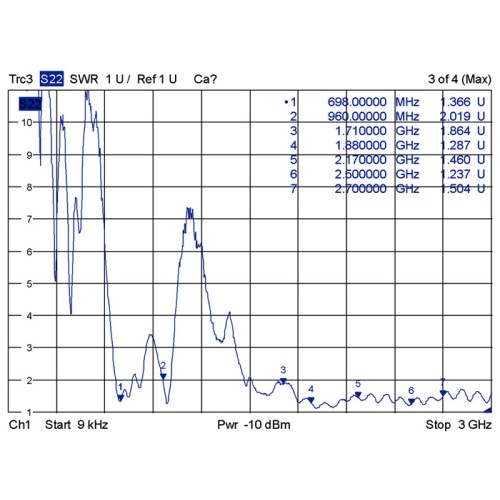

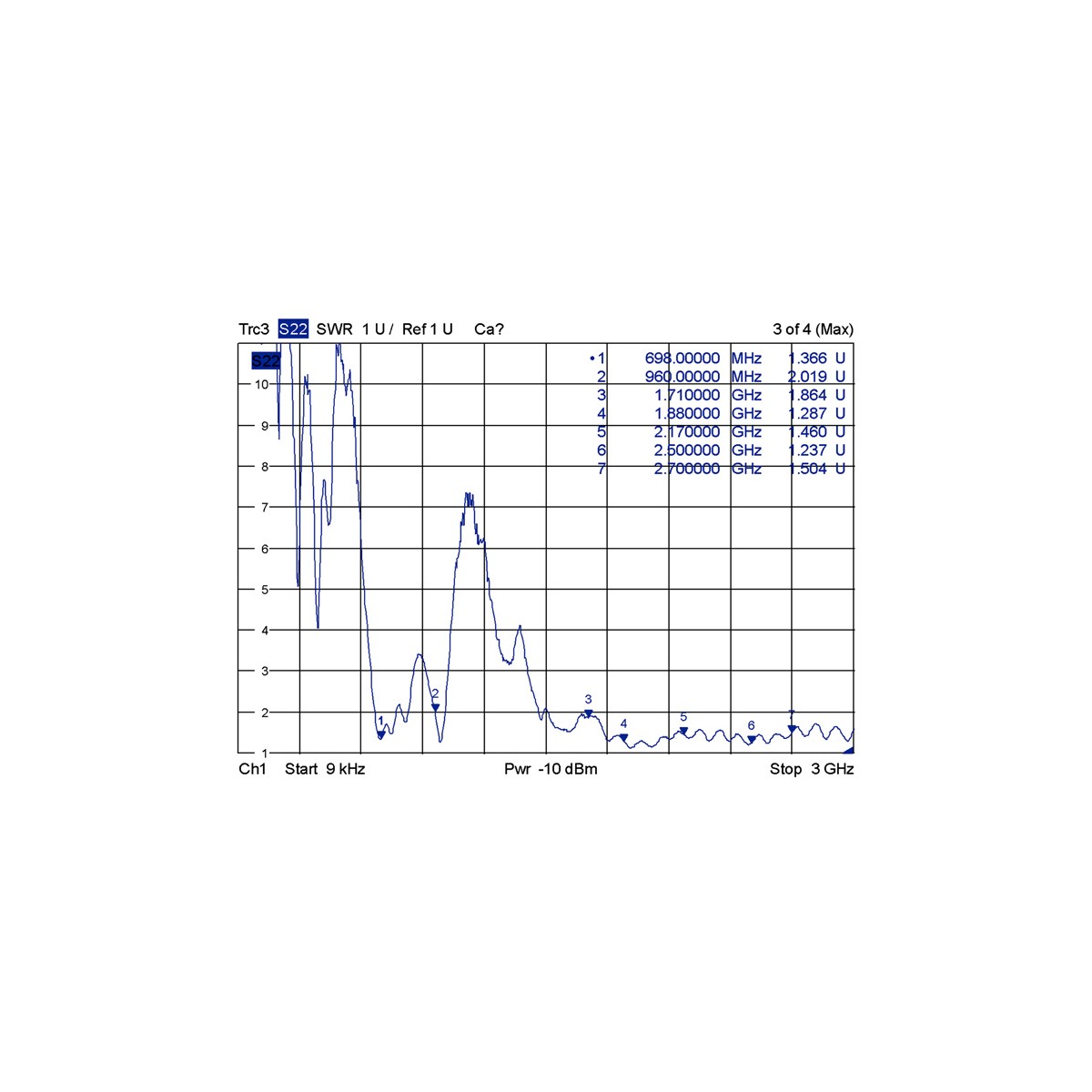

• VSWR: 2.0 - 4.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Antenna length including magnetic base: ca. 16.2 cm
• Features of the base:
  magnetic on the bottom
  rubberized bottom
  wall mountable
• Cable: coaxial
• Cable type: ULA 100
• Cable colour: black
• Cable Attenuation: 1.4 dB @ 2.500 GHz per meter
• Cable diameter: ca. 2.79 mm
• Cable length: ca. 1 m

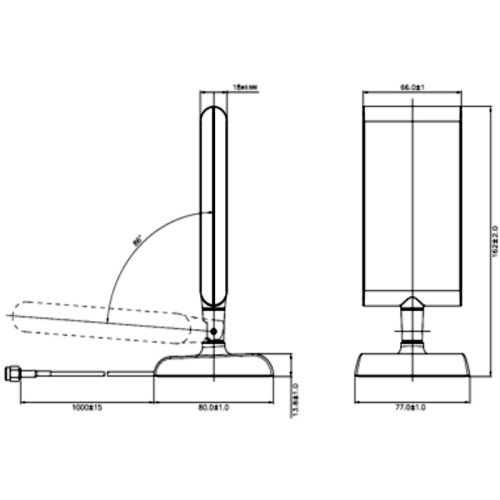

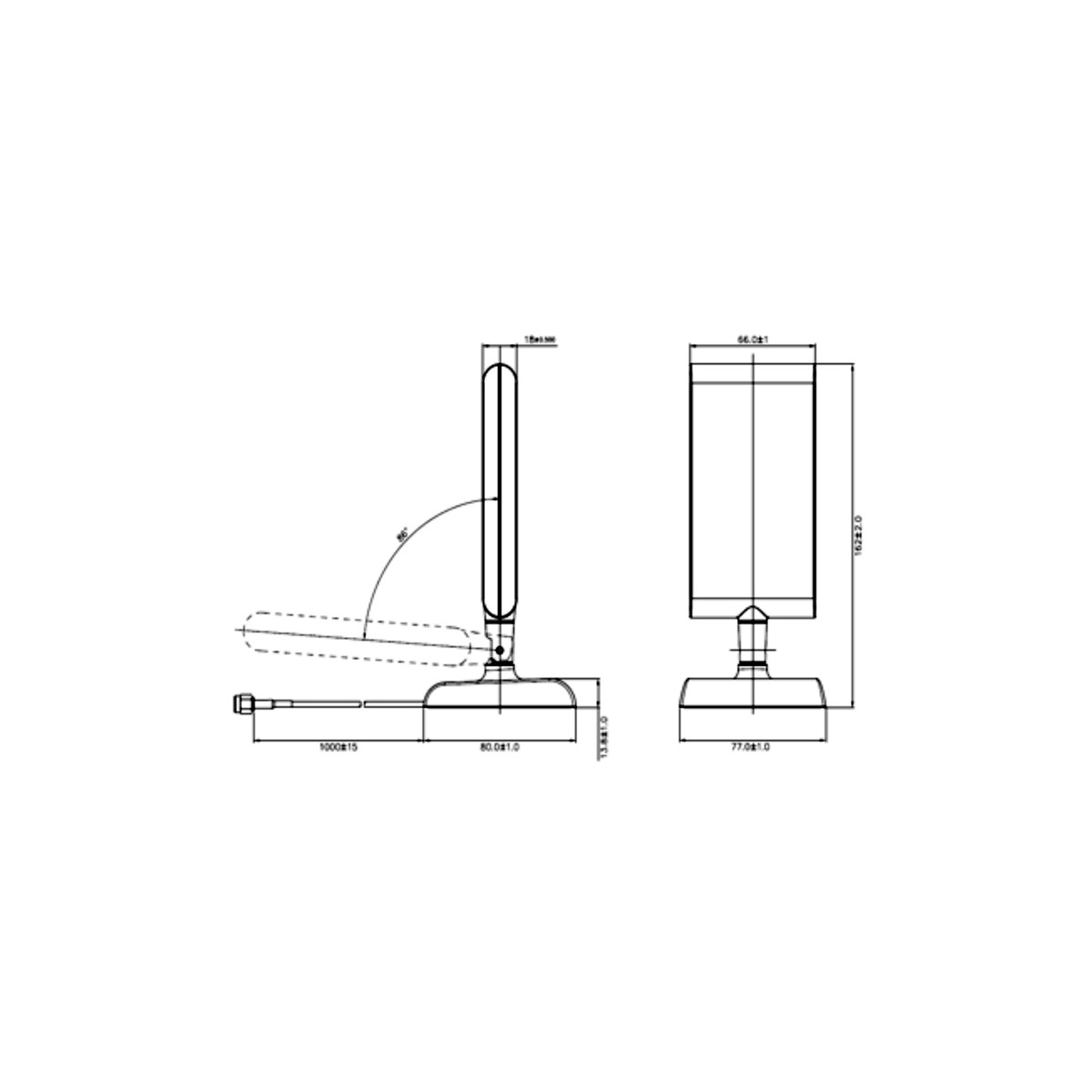

• Dimensions:
  antenna (LxWxH): ca. 162 x 66 x 18 mm
  base (LxWxH): ca. 80 x 77 x 15 mm

System requirements
• Device with a free SMA jack

Package content
• LTE antenna

Package
• Retail Box
