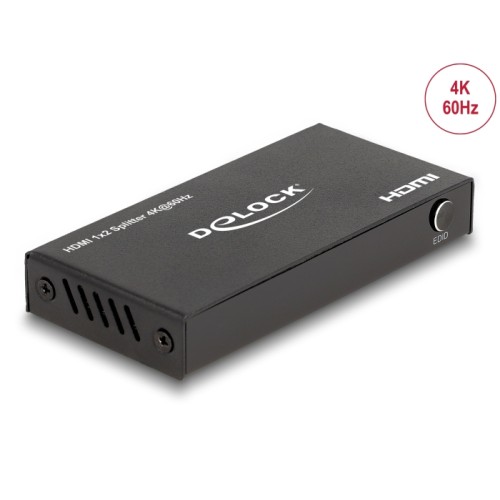

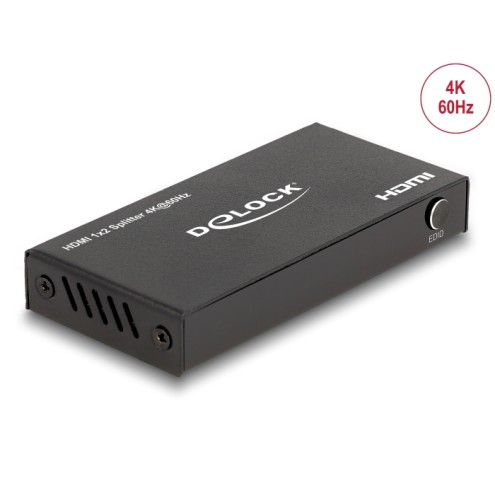

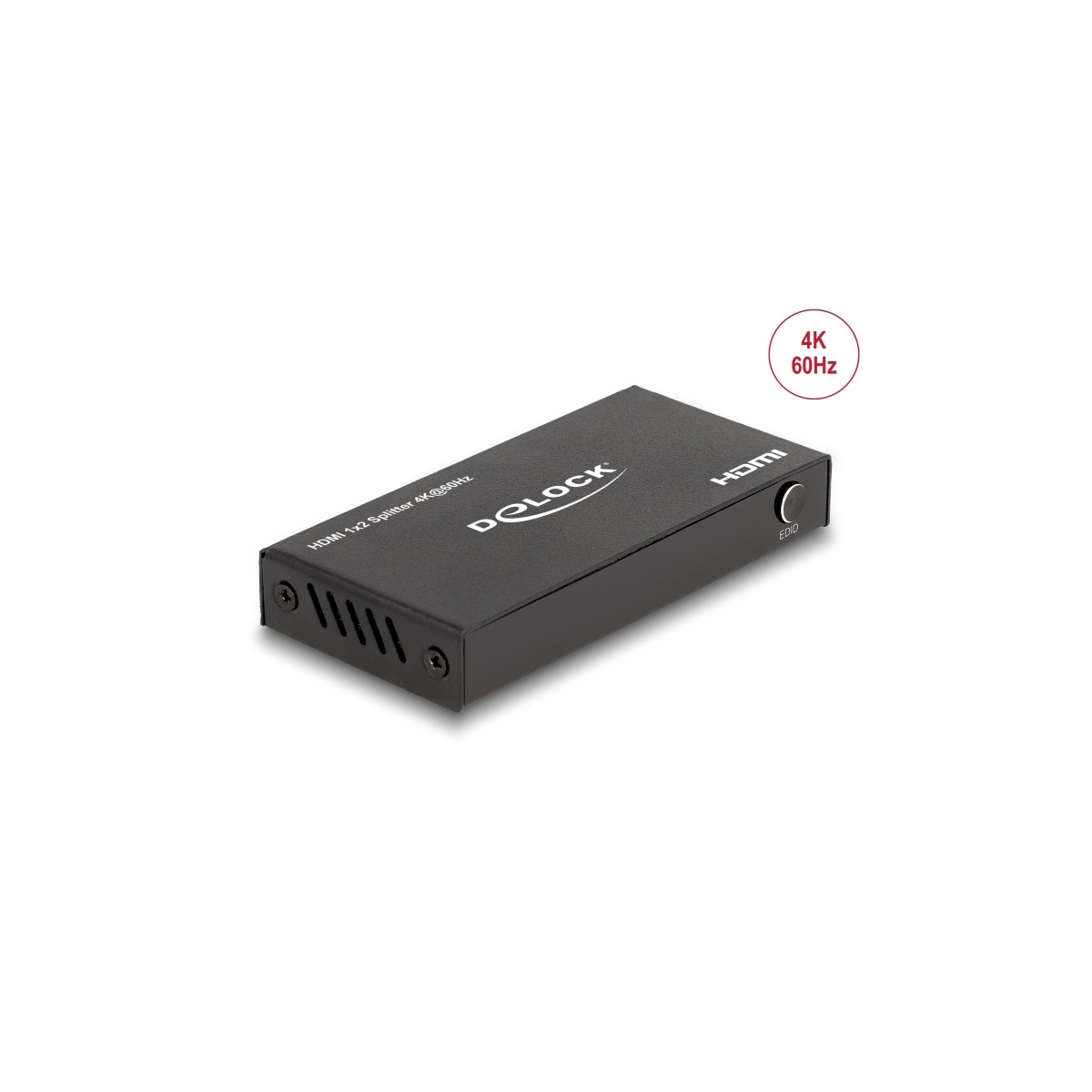

Delock HDMI Splitter 1 x HDMI in to 2 x HDMI out 4K 60 Hz with downscaler

Description
This splitter by Delock receives an HDMI signal from a PC or laptop and splits it to two connected displays. Thereby one HDMI connection can be used to operate two HDMI monitors.

Downscaler
If a monitor does not support the high resolution, the image can be scaled from 4K to 1080p with the integrated downscaler.


The device is powered via a USB port, a suitable USB cable is included. If no free USB-A port is available, an optional external power supply is required.

Specification

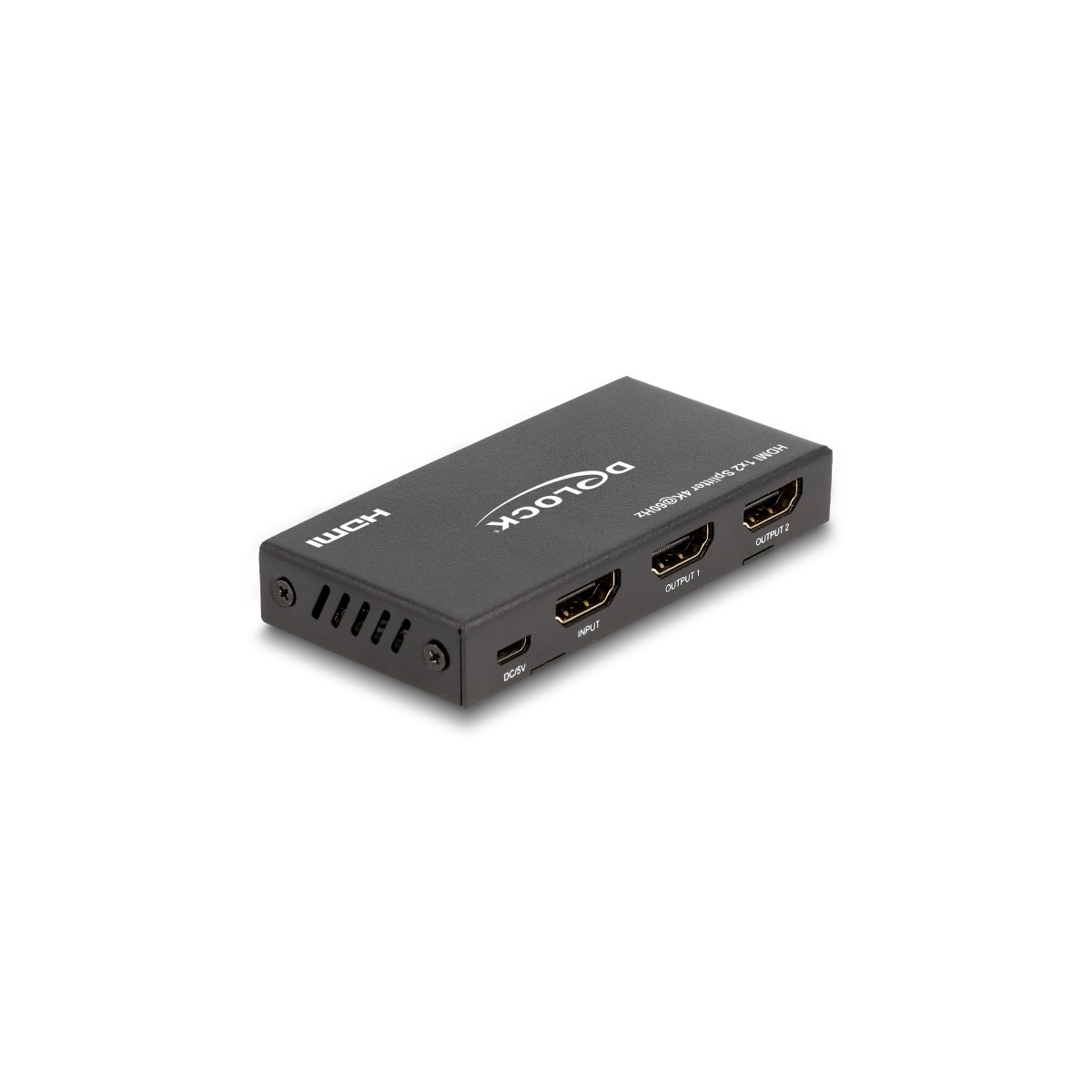

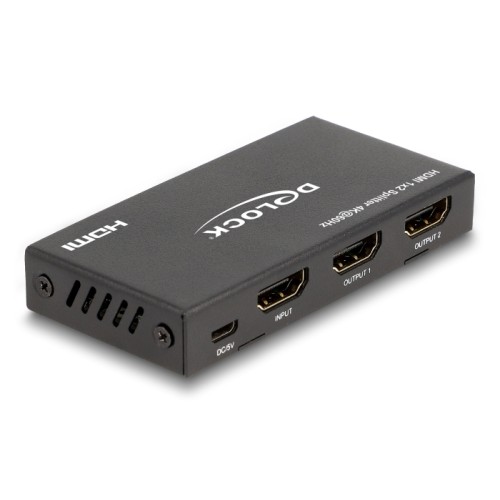

• Connectors:
Input:
1 x HDMI-A female
1 x USB Type Micro-B female (5 V power supply)
Output:
2 x HDMI-A female
• Supports EDID management
• High Speed HDMI specification
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Function: Mirrored
• Transmission of audio and video signals
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps
• Power consumption: max. 2.5 W
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 90 x 44 x 14 mm

System requirements
• HDMI cable
• Power source with a free USB Type-A female port

Package content
• HDMI Splitter

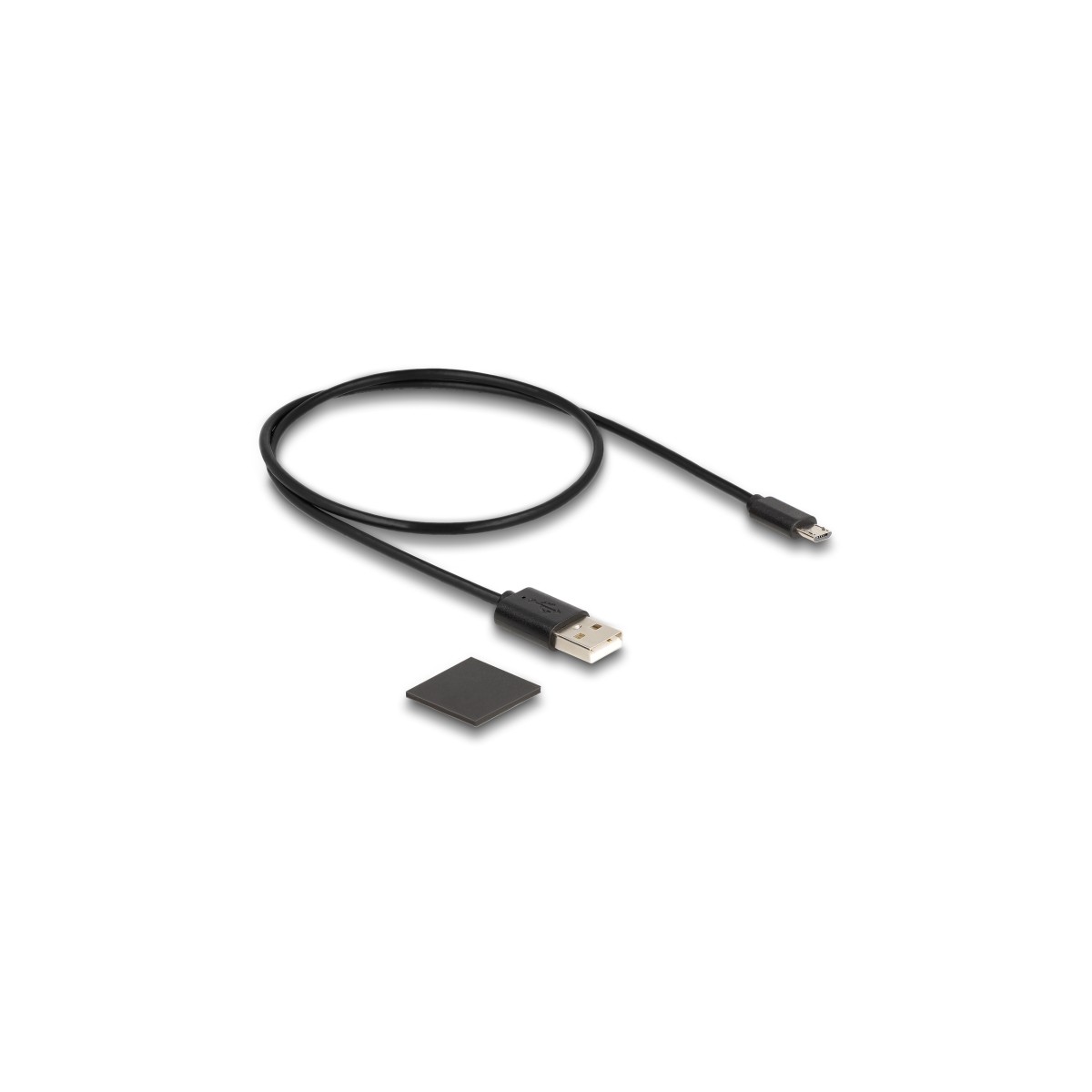

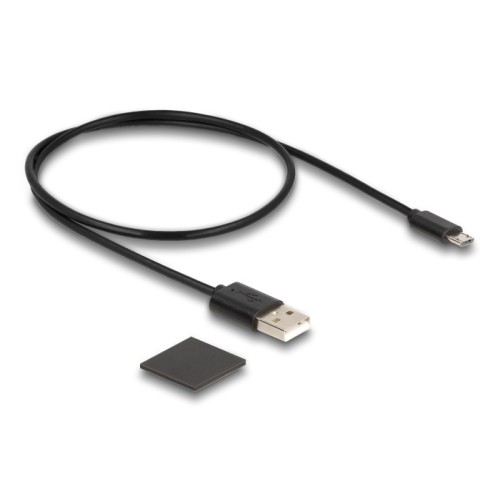

• USB power cable, length: ca. 0.75 m
• User manual
