Description

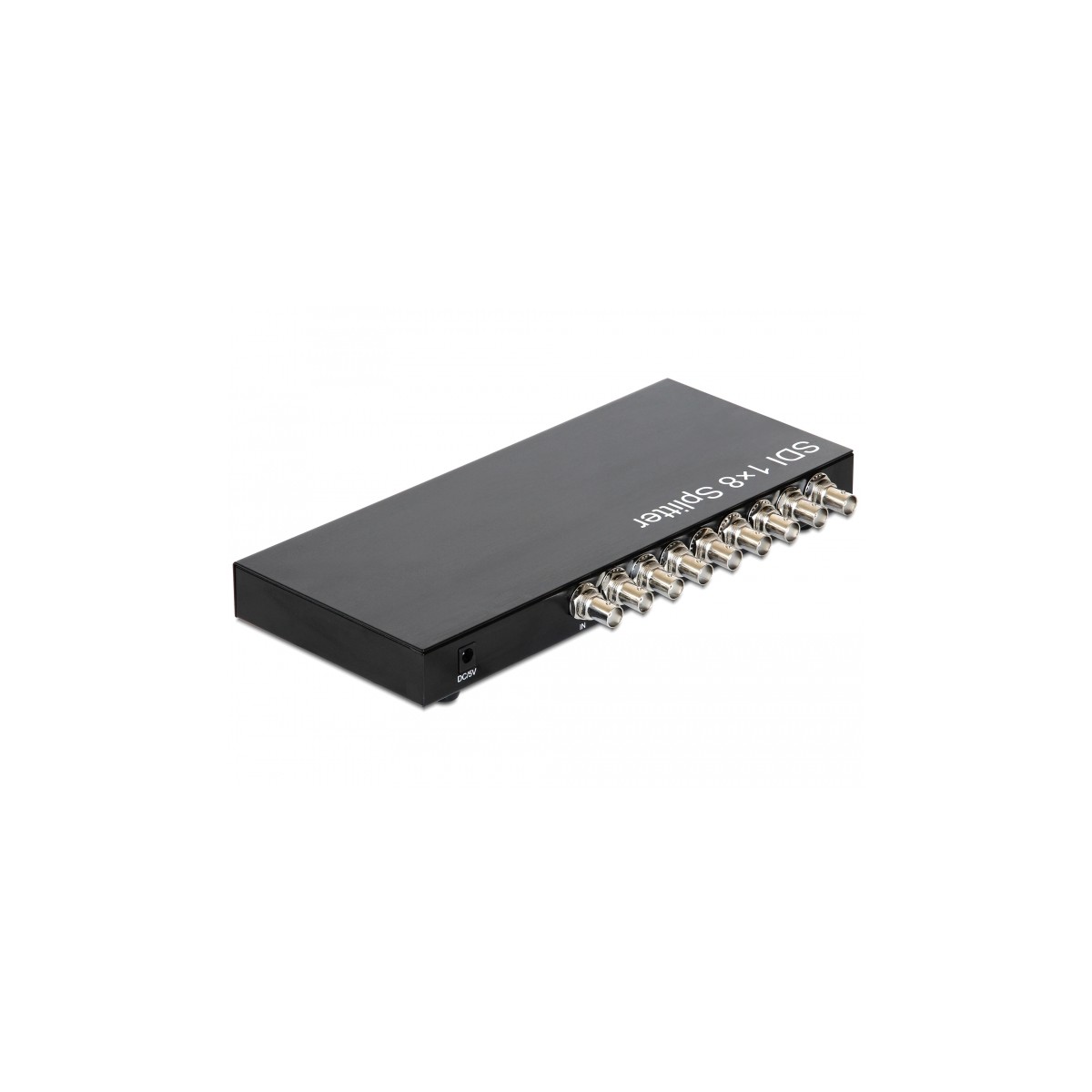

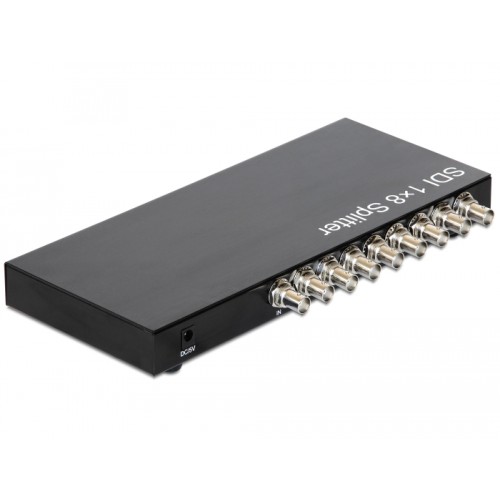

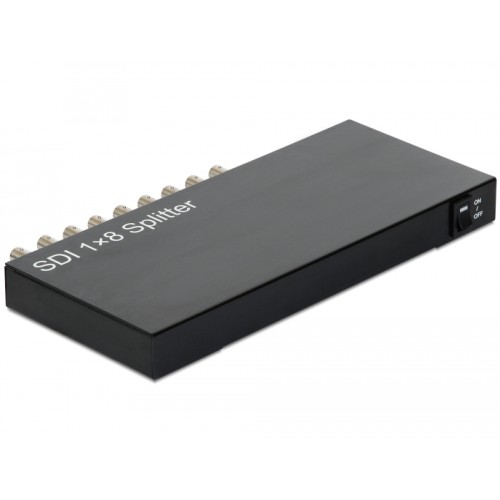

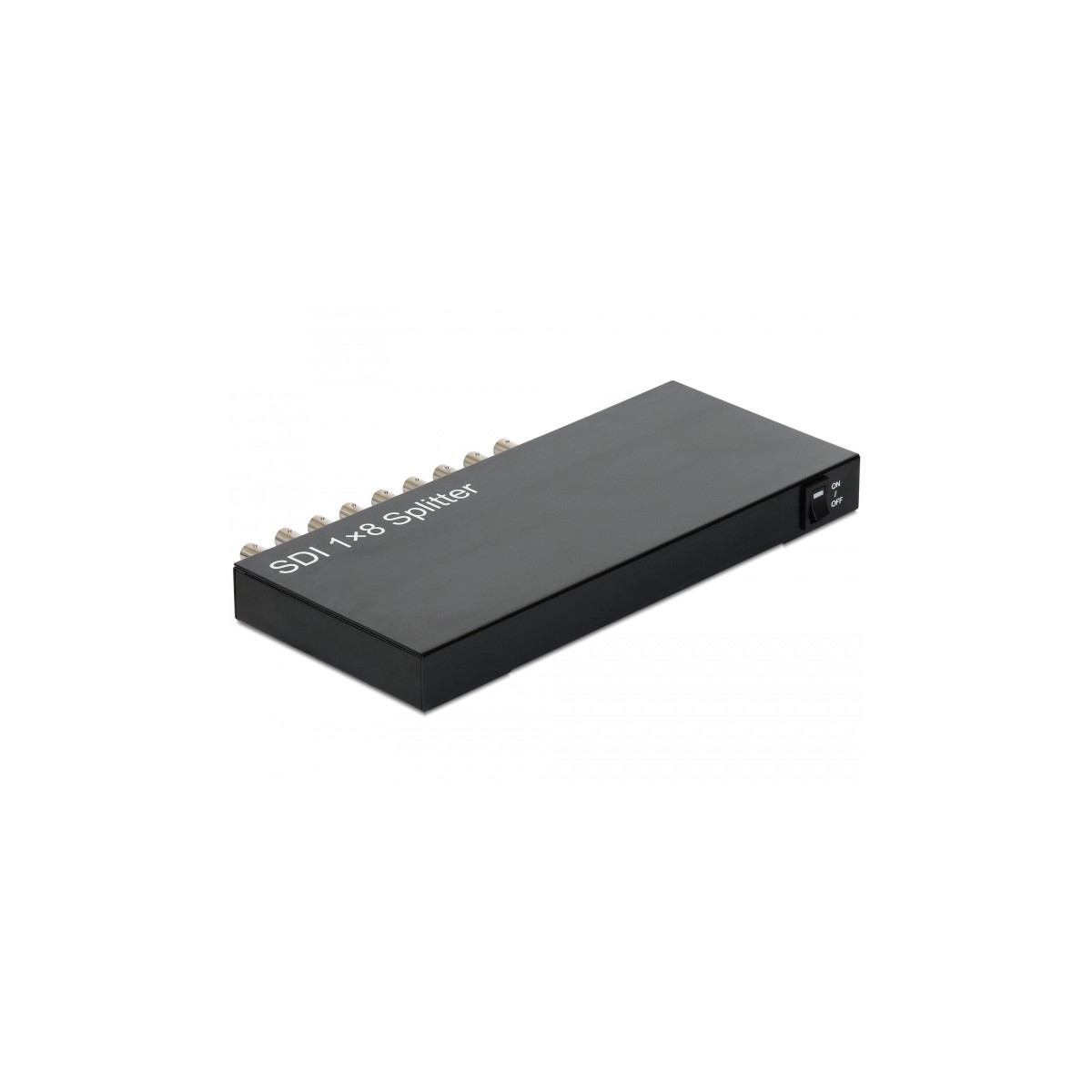

This SDI splitter by Delock can be used to receive signals of one SDI input source, such as a DVR, an HD-SDI camera or other SDI device, to up to eight different output devices such as SDI monitors.
Specification
• Connectors:
Input:
1 x BNC female (3G-SDI)
Output:
8 x BNC female (3G-SDI)
1 x 5 V DC jack
• Supported resolution:
SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Robust metal housing
• Power consumption: max. 1.8 W
• Dimensions (LxWxH): ca. 257 x 133 x 26 mm

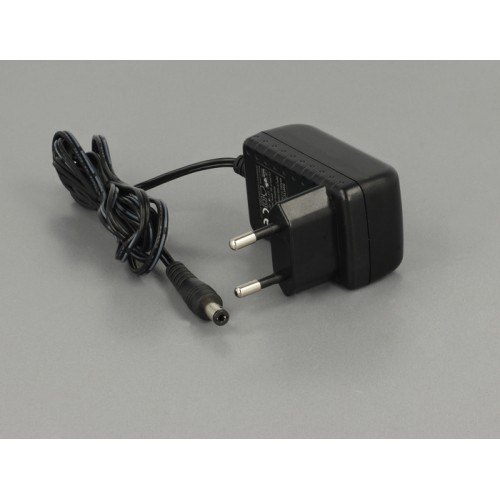

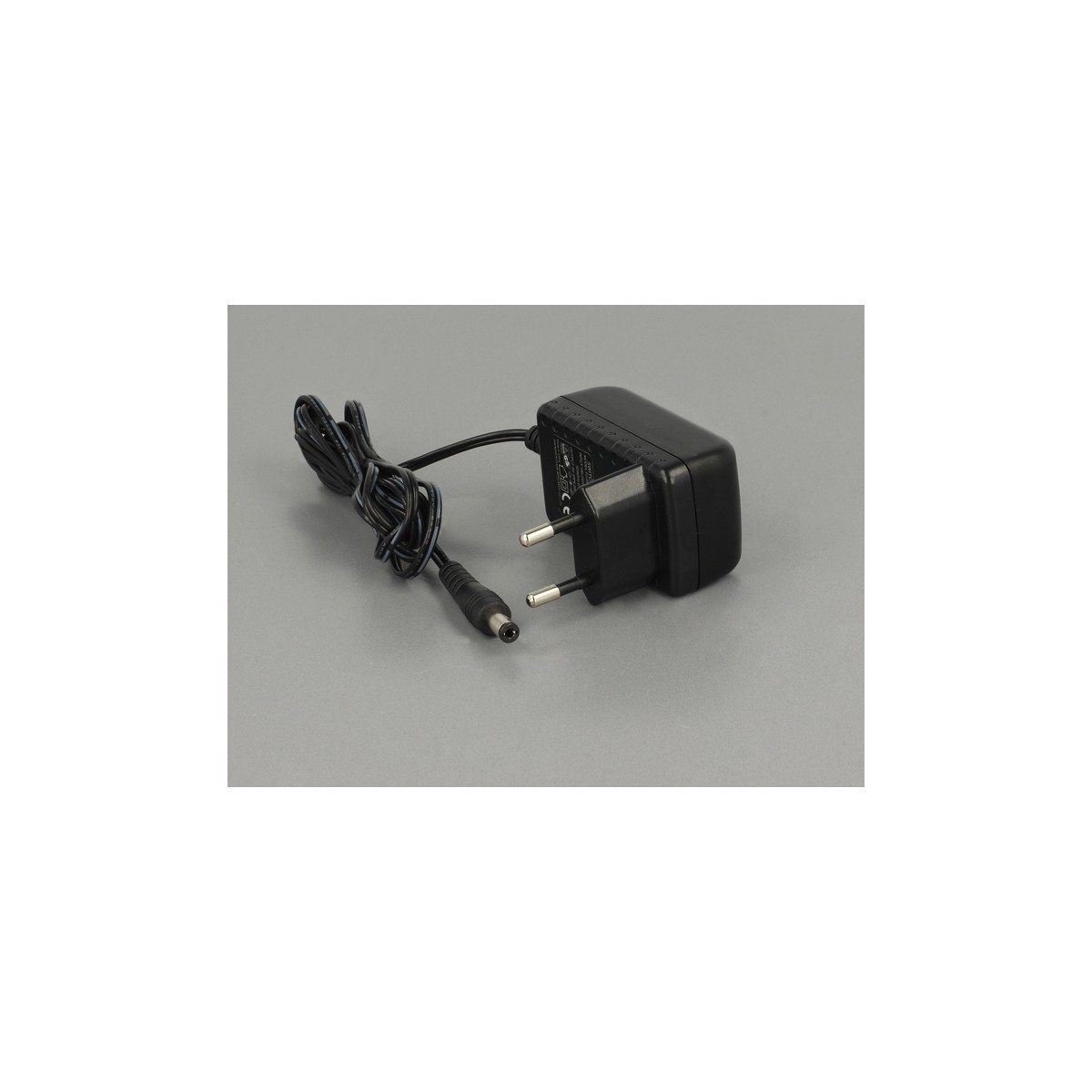

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
Package content
• 3G-SDI splitter
• Power supply
Package
• White Box
New
4043619932535
