Delock DisplayPort 2 - 1 Switch bidirectional 4K 60 Hz

Description

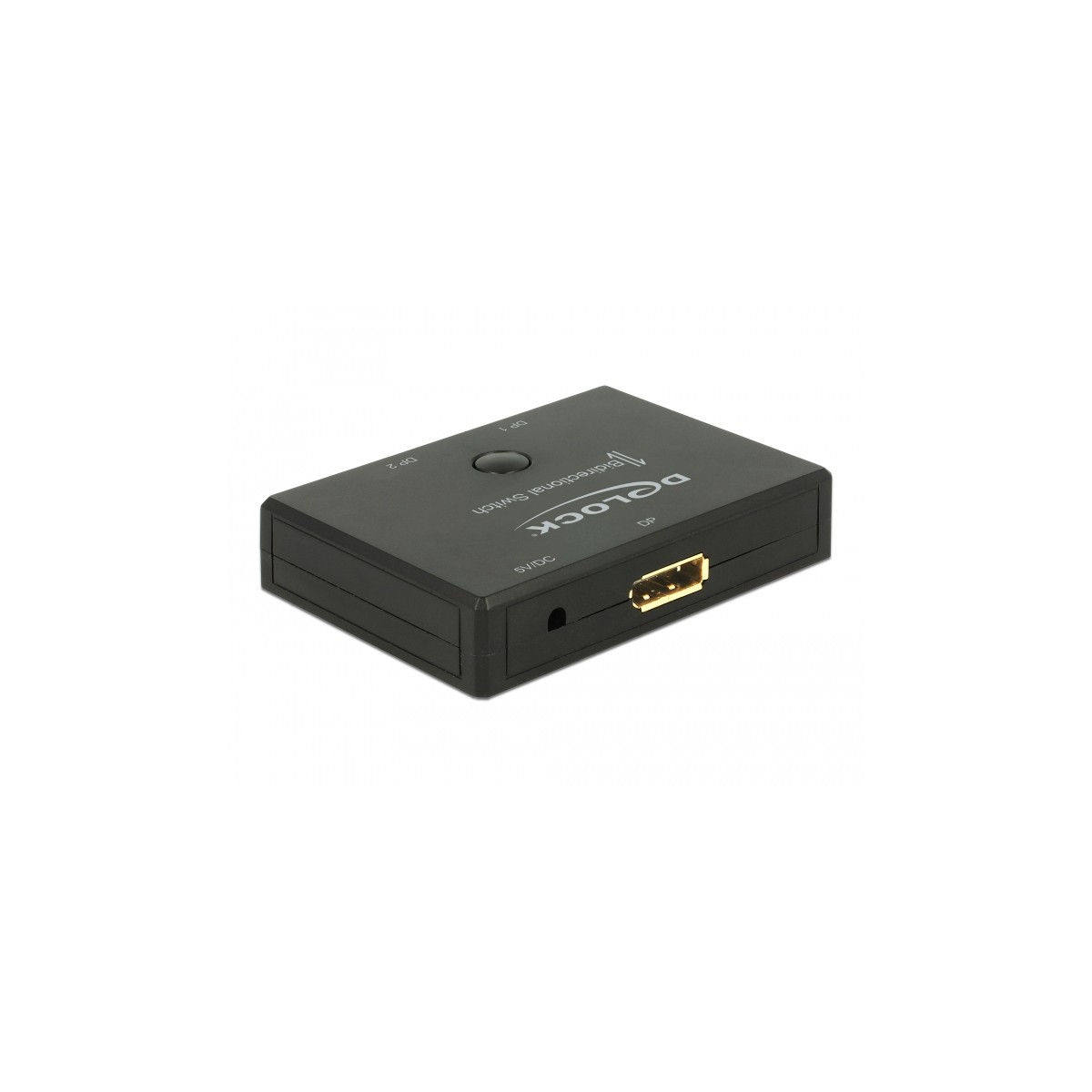

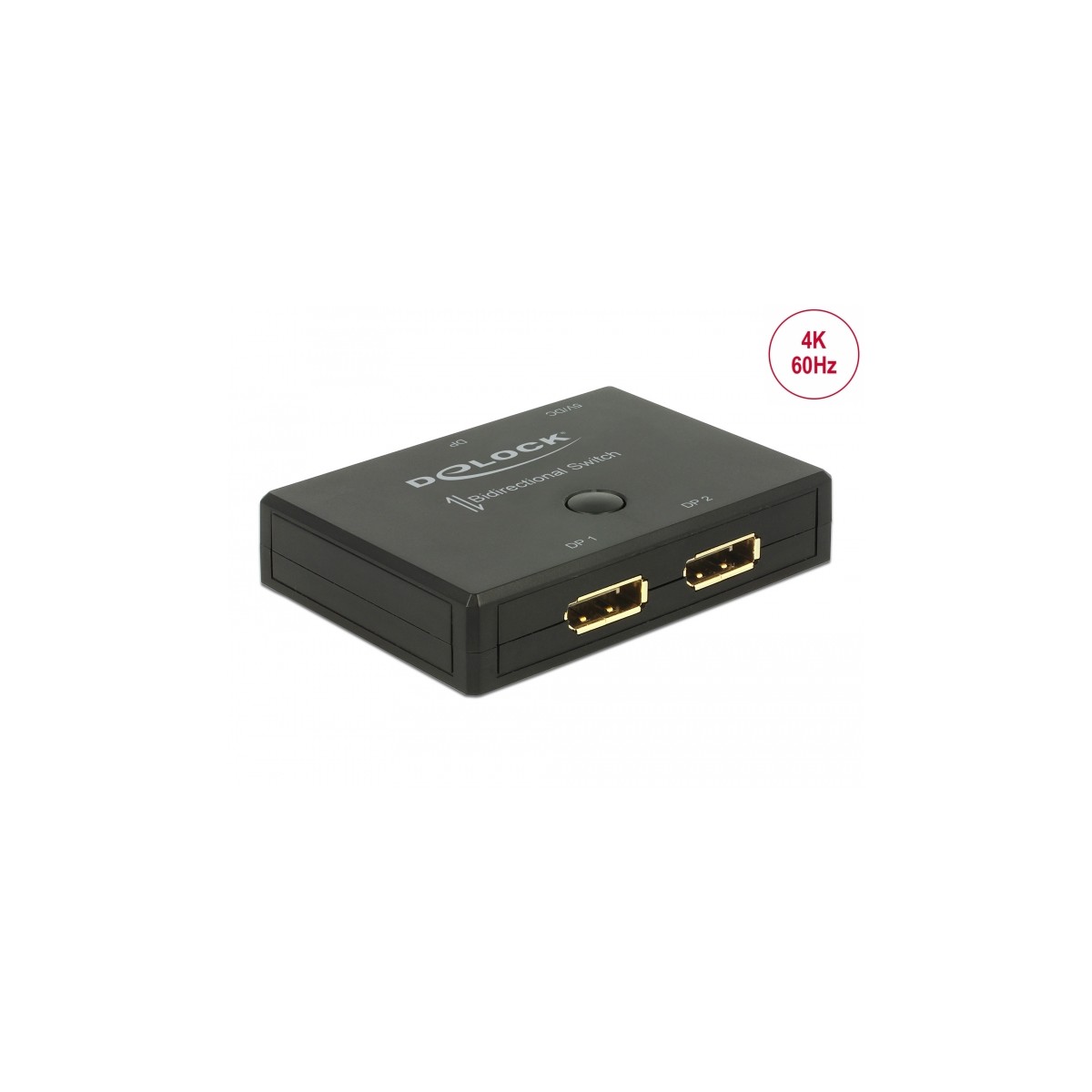

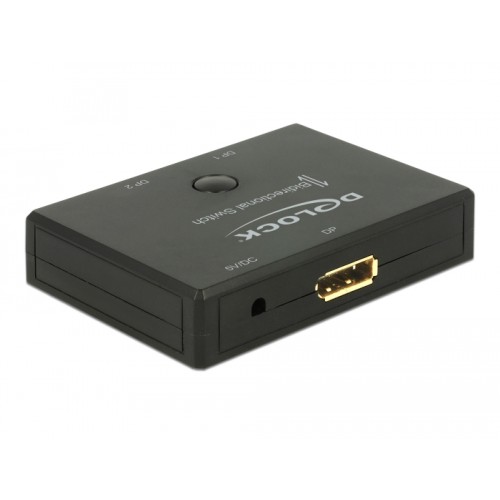

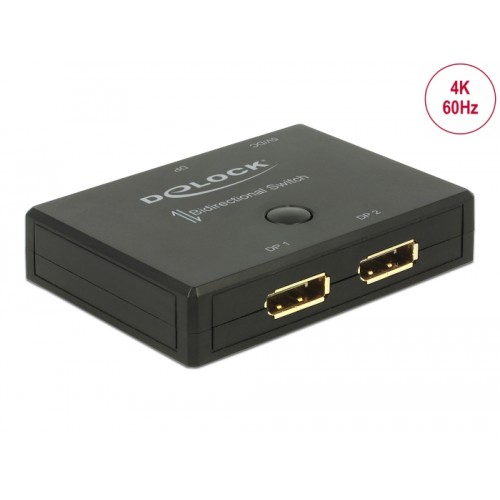

This Displayport switch by Delock is a manual bidirectional switch for connecting different devices with Displayport port. This switch offers two different applications.
1.
Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.
2.
An Displayport device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.
Note
By using a 20 pin Displayport cable at the video source, the repeater can be supplied with power.

Specification

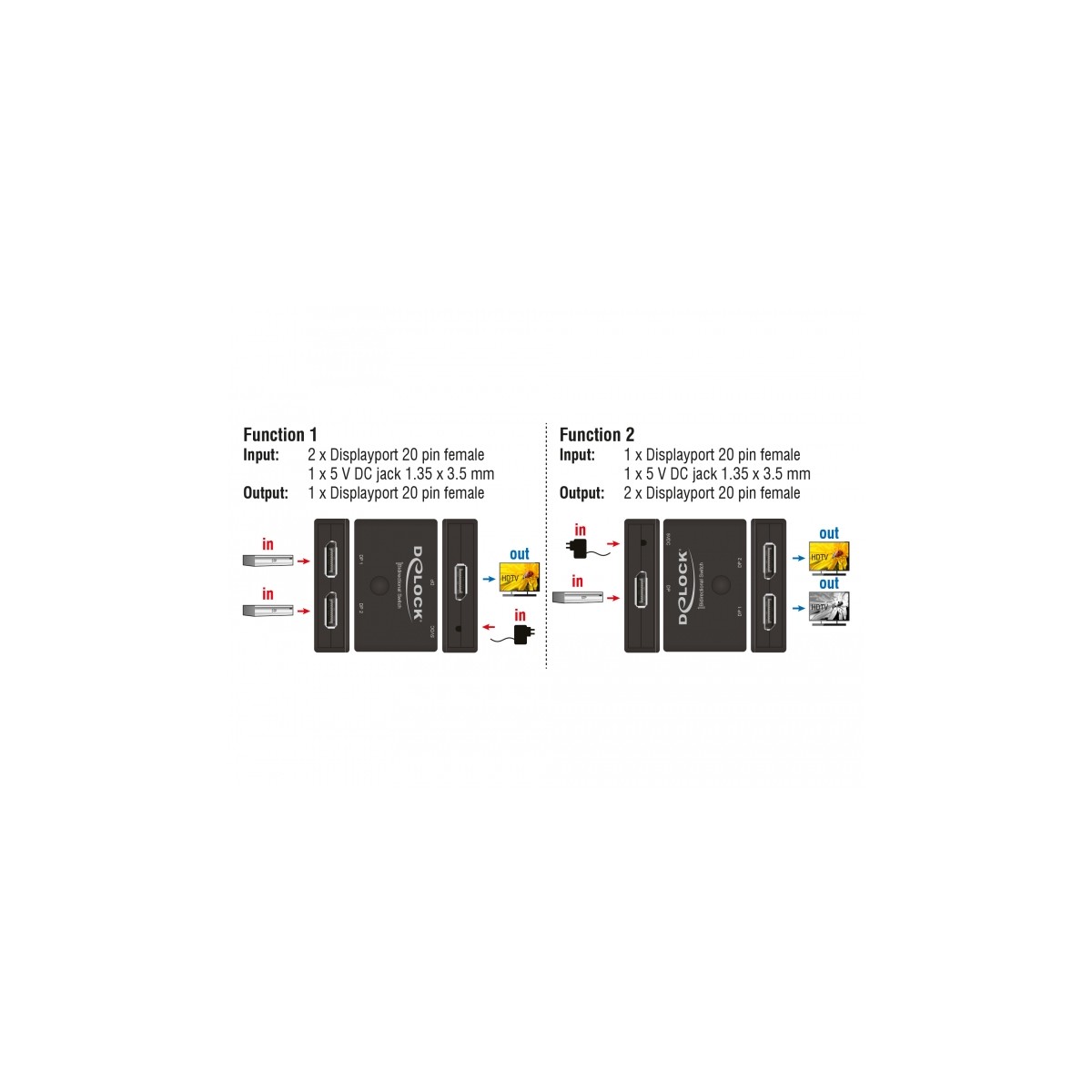

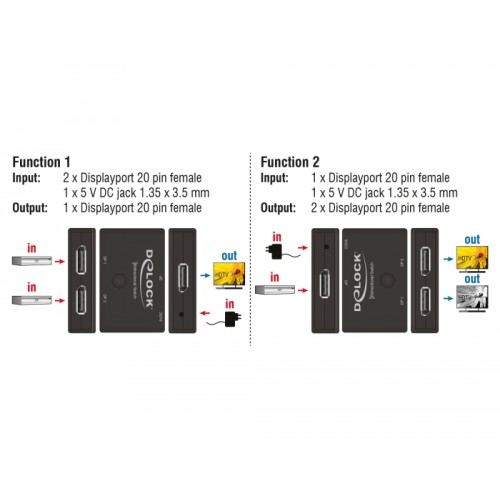

• Connectors:
  Function 1
    Input:
      2 x Displayport 20 pin female
      1 x 5 V DC jack 1.35 x 3.5 mm
    Output: 1 x Displayport 20 pin female
  Function 2
    Input:
      1 x Displayport 20 pin female
      1 x 5 V DC jack 1.35 x 3.5 mm
    Output: 2 x Displayport 20 pin female
• Displayport port selection by button
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
  hardware)
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 82 x 62 x 17 mm


System requirements
• A free Displayport female
• Displayport cable


Package content
• Switch bidirectional

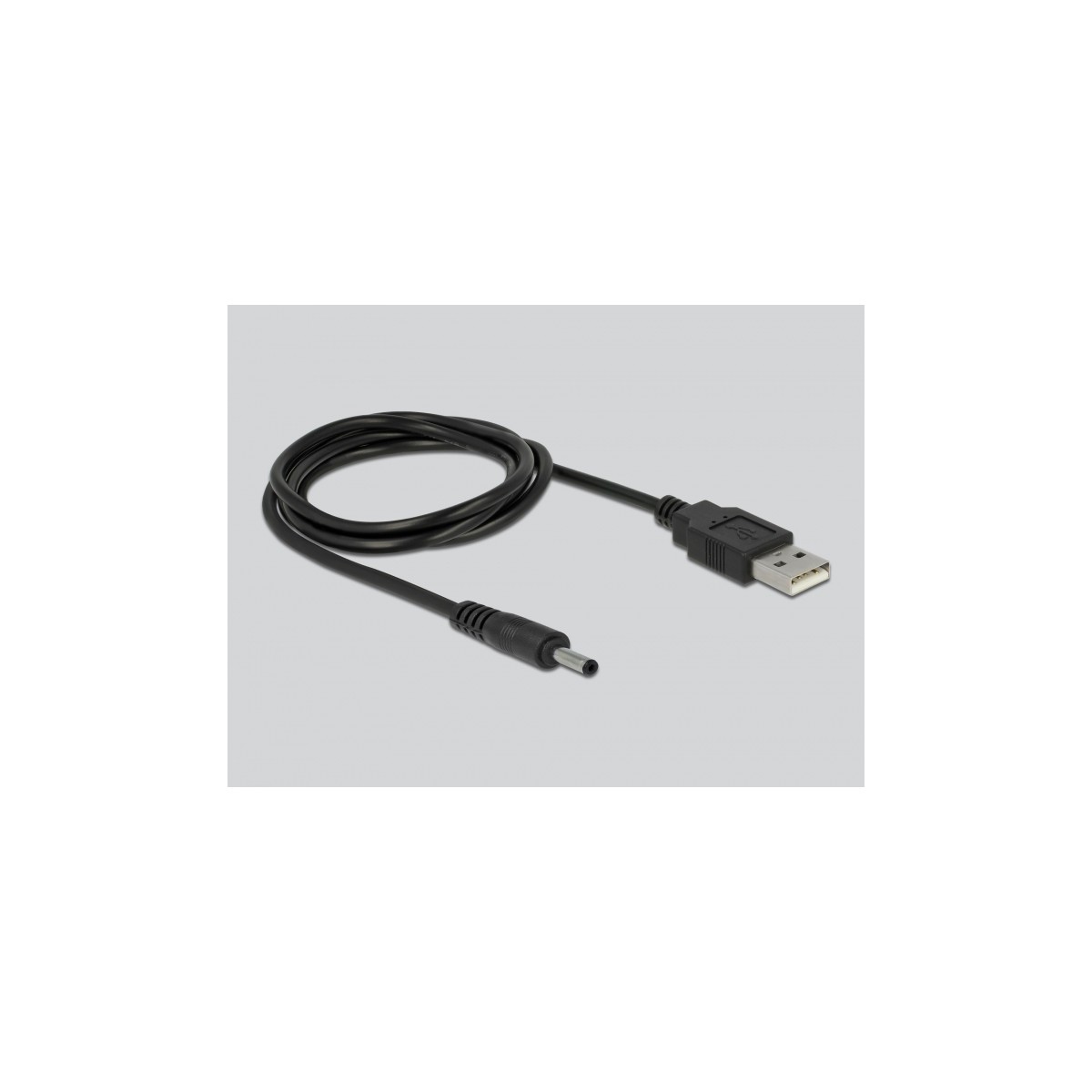

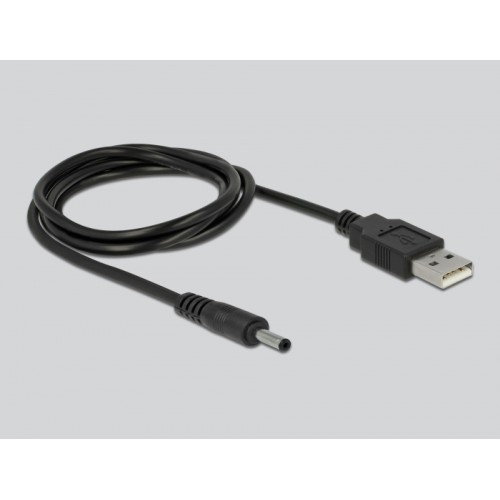

• USB power cable, length: ca. 1 m
• User manual

Package
• Retail Box
