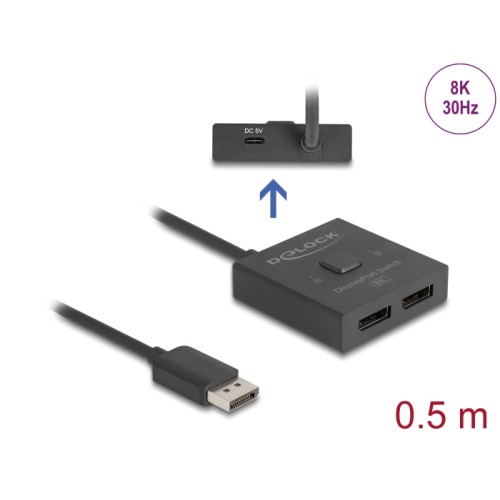

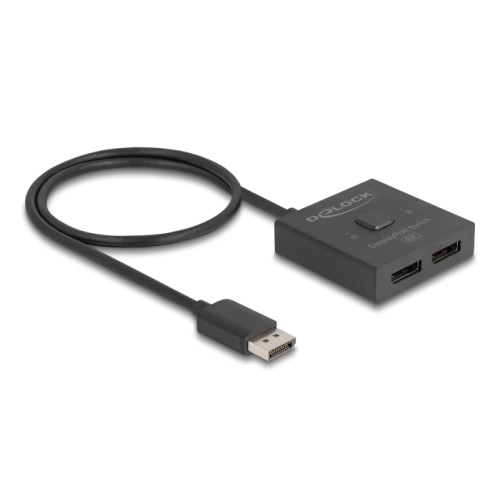

Delock DisplayPort Switch 2 to 1 bidirectional 8K

Description
This DisplayPort switch by Delock is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications.

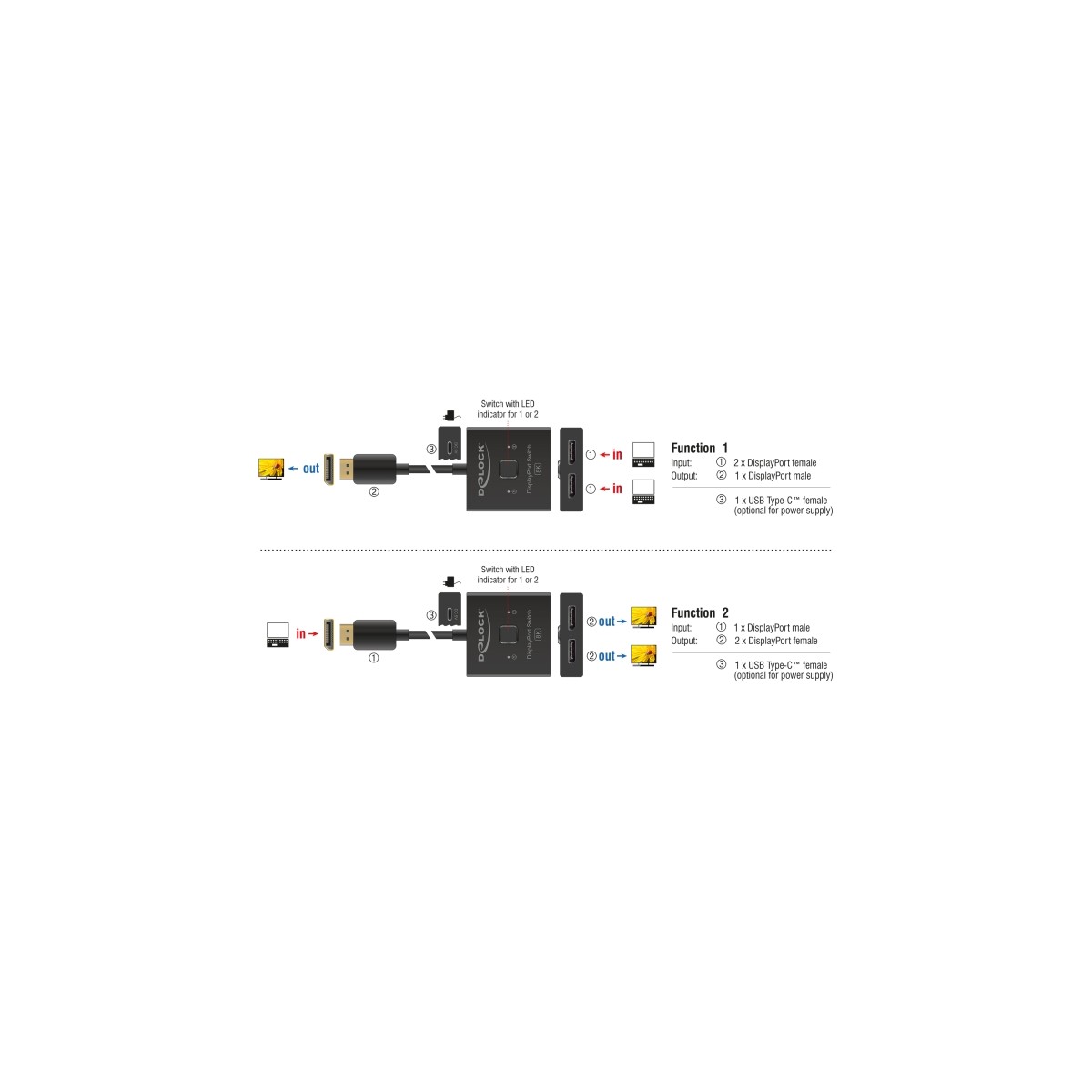

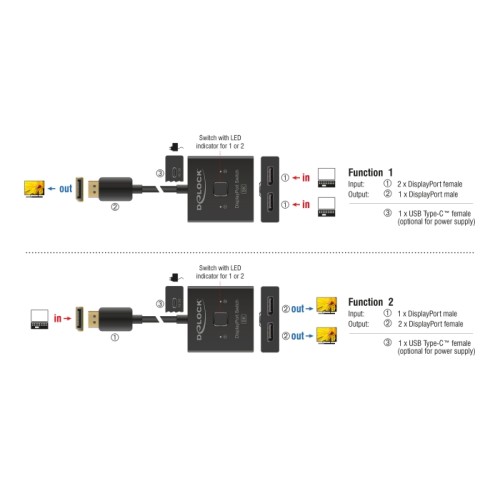

Function 1
Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.

Function 2
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.

Note
The switch can be powered via the DisplayPort connector. If a device does not support DisplayPort power, the switch can be powered via the USB-C™ connector.

Specification
• Connectors:
Function 1
Input:
2 x DisplayPort female
Output:
1 x DisplayPort male
Function 2
Input:
1 x DisplayPort male
Output:
2 x DisplayPort female
• 1 x USB Type-C™ female (optional for power supply)
• 1 x button with LED indicator for 1 or 2
• DisplayPort 1.4 specification
• Supports HDR
• Resolution up to:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 55 x 55 x 15 mm
• Cable length without connectors: ca. 50 cm

System requirements
• A free DisplayPort female port
• DisplayPort cable

Package content
• Switch bidirectional
• User manual
