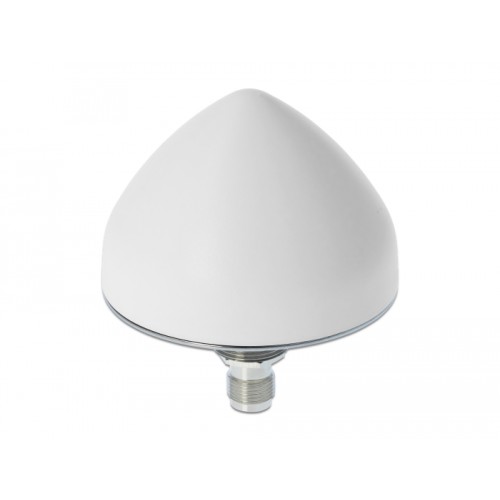

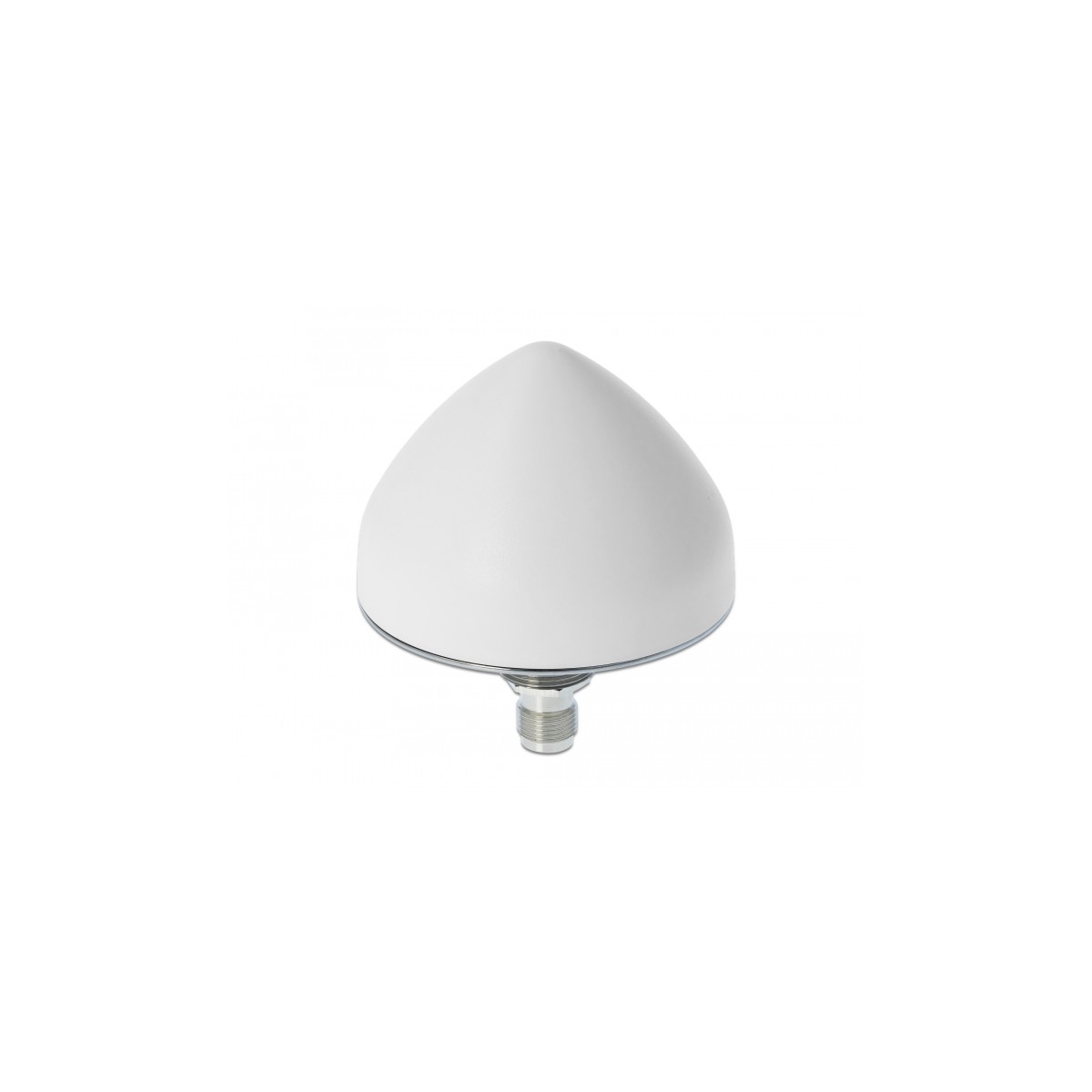

Navilock NL-250GG Multi GNSS GALILEO GLONASS GPS antenna TNC active outdoor
60559
New
Description
This antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS and GALILEO satellite signals at the same time.
Specification
• Connector:

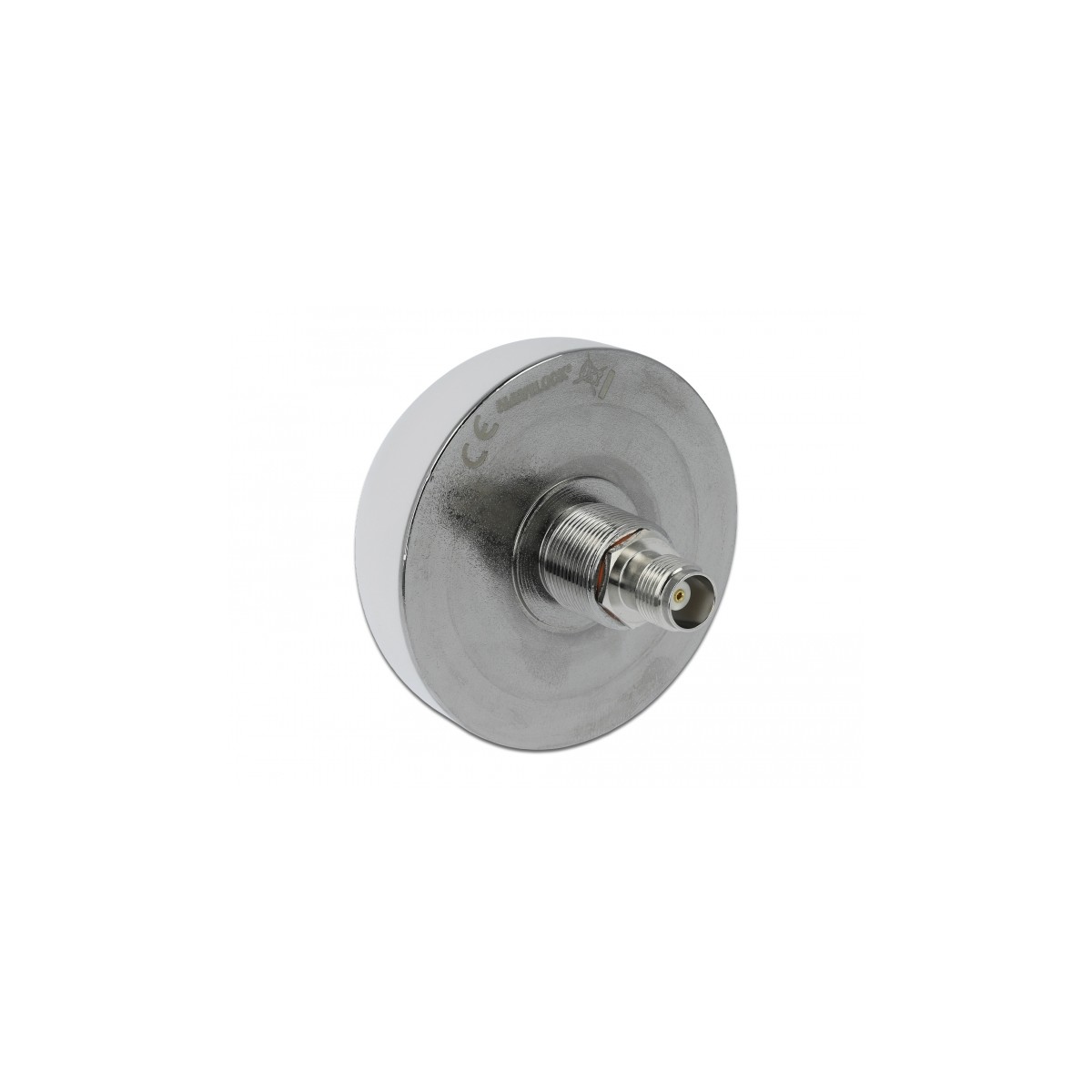

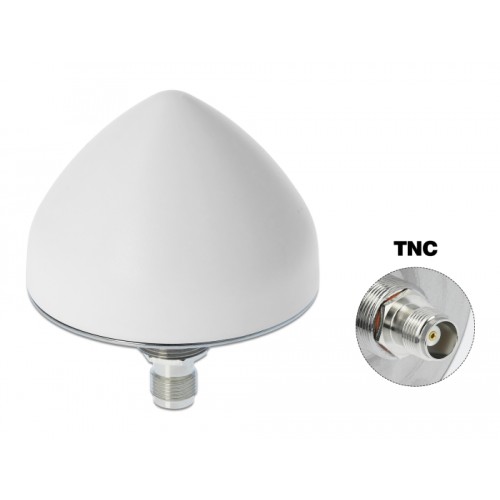

1 x TNC jack
• GNSS:
Frequency range:
Galileo: L1 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Antenna Gain: 4 dBic
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA:
Frequency range:
Galileo: L1, 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Package content
Package
• Box
This antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS and GALILEO satellite signals at the same time.
Specification
• Connector:

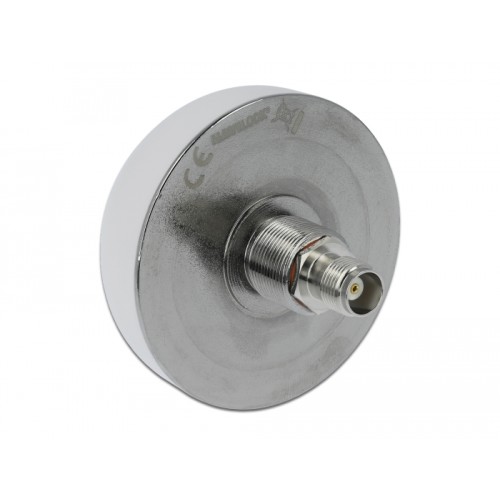

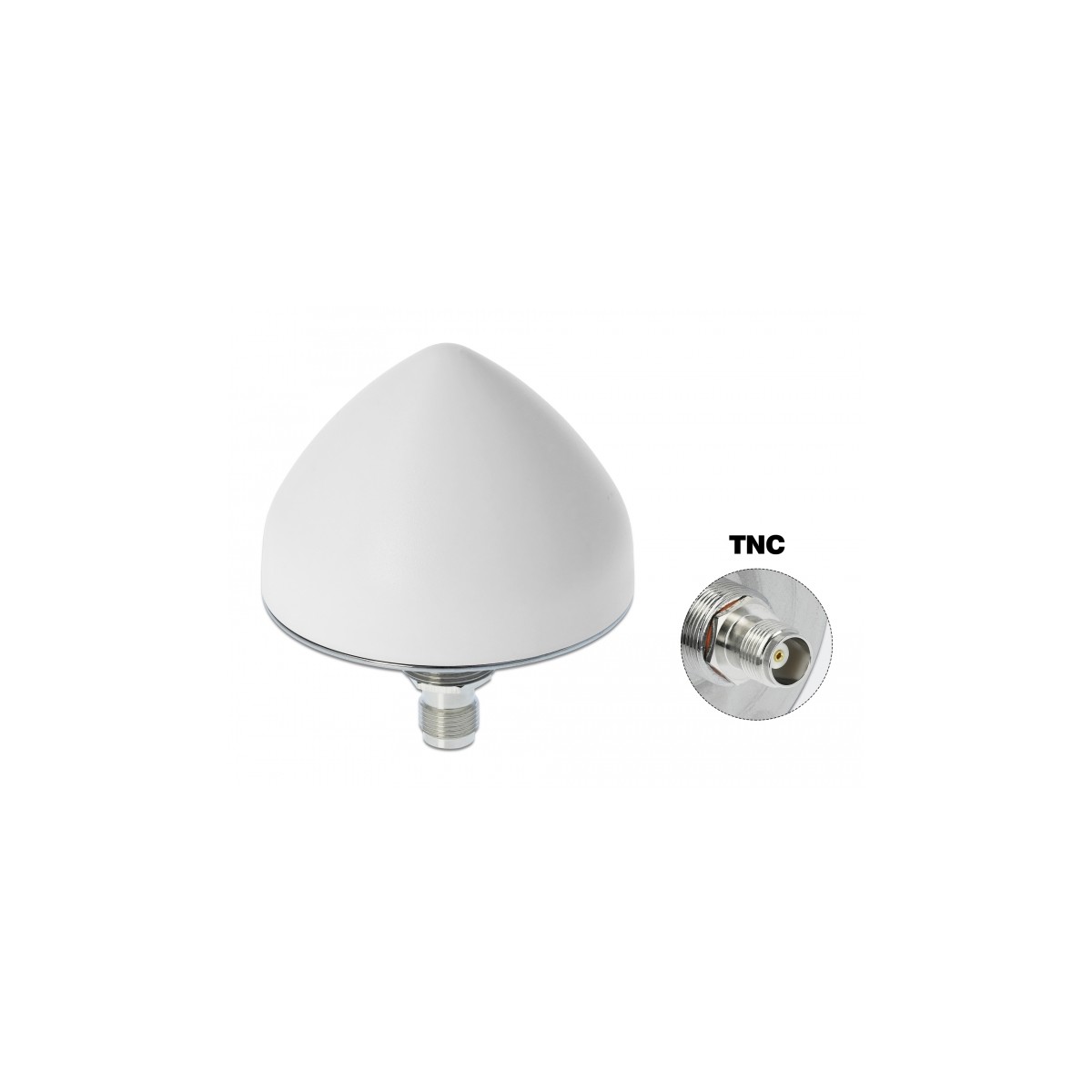

1 x TNC jack
• GNSS:
Frequency range:
Galileo: L1 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Antenna Gain: 4 dBic
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA:
Frequency range:
Galileo: L1, 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Operating voltage: 2.7 V - 10.0 V
Gain: 40 dB
Impedance: 50 Ohm
Current consumption: 25 mA
VSWR: 2.0
• Mounting type: screw mounting
• Housing colour: white
• Housing material: ABS
• Protection class: IP67
• Suitable for outdoor: yes
• Operating temperature: -40 °C ~ 85 °C
• Diameter: 66.5 mm
• Height: 46 mm
• Thread type: M18
• Surge protection: 15 kV
• Surge protection: 15 kV

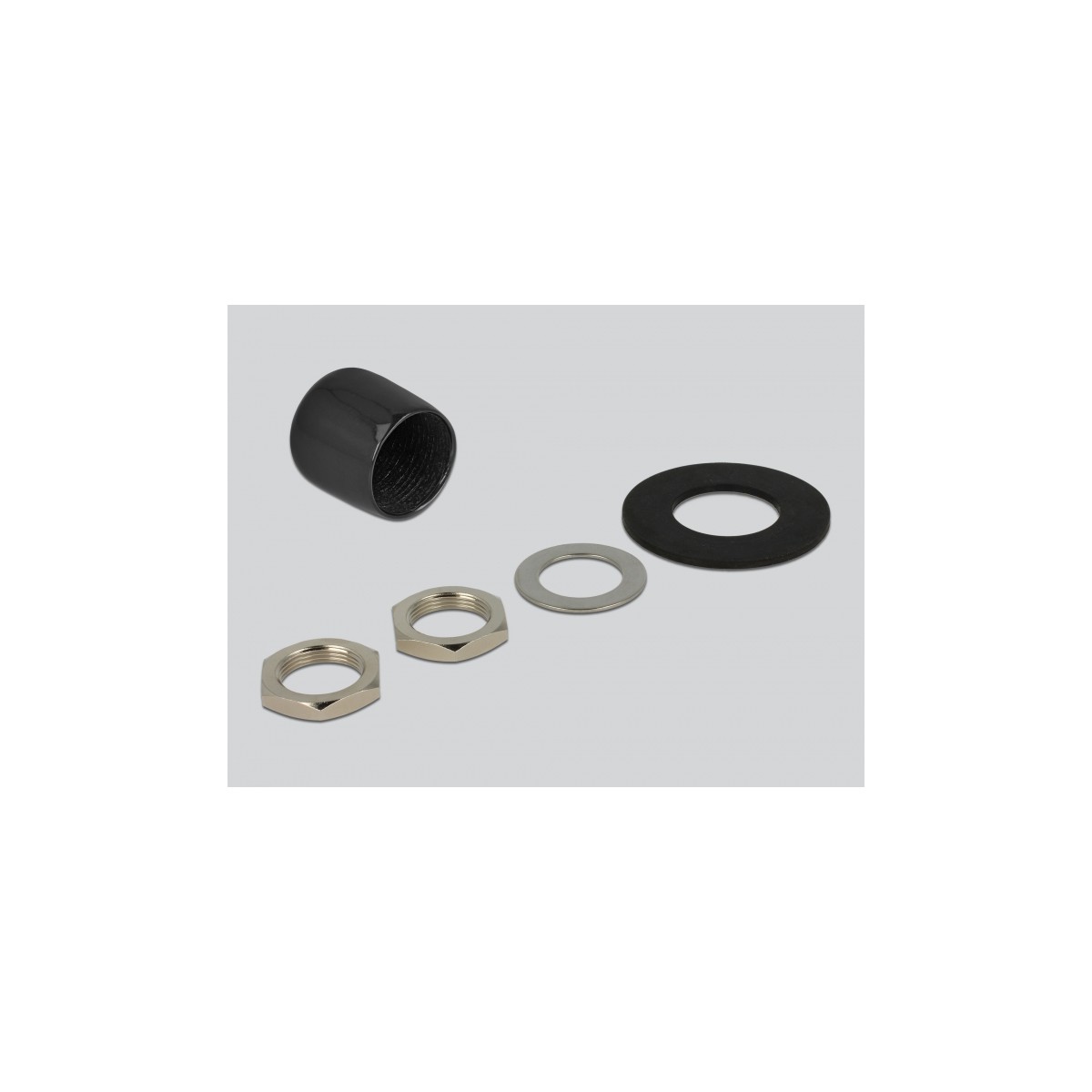

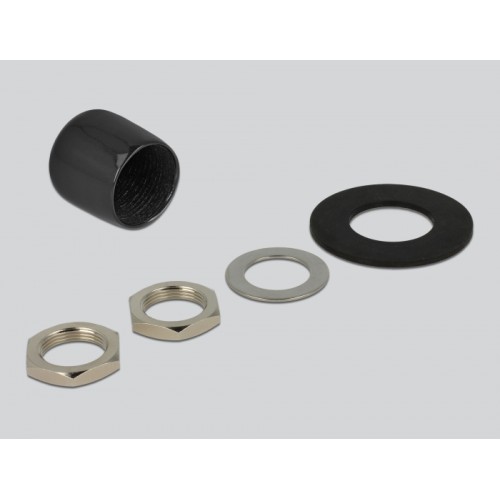

Package content
• GNSS antenna
• 1 x rubber seal
• 1 x Washer
• 2 x Nuts
• 1 x Washer
• 2 x Nuts
Package
• Box
New
4043619605590
