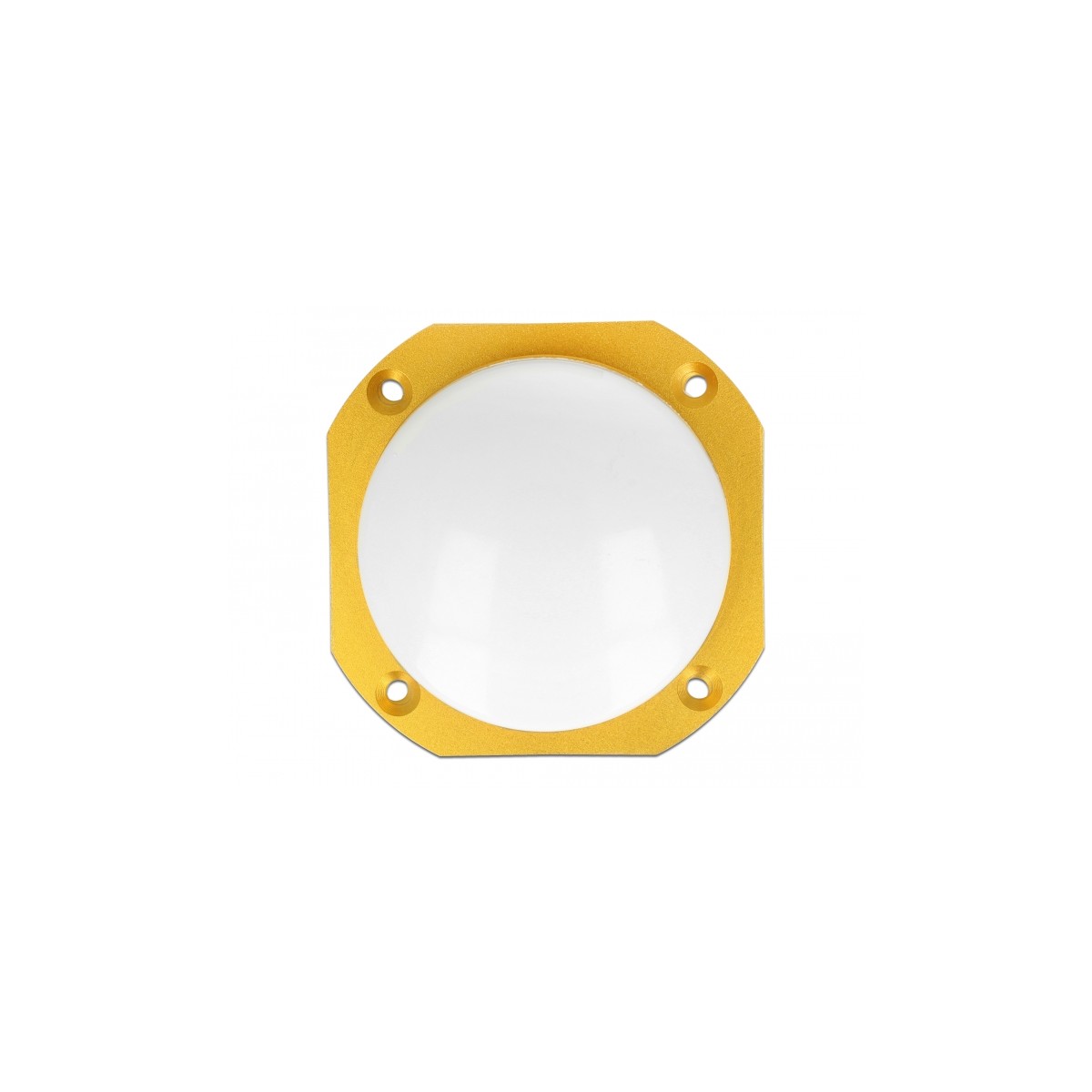

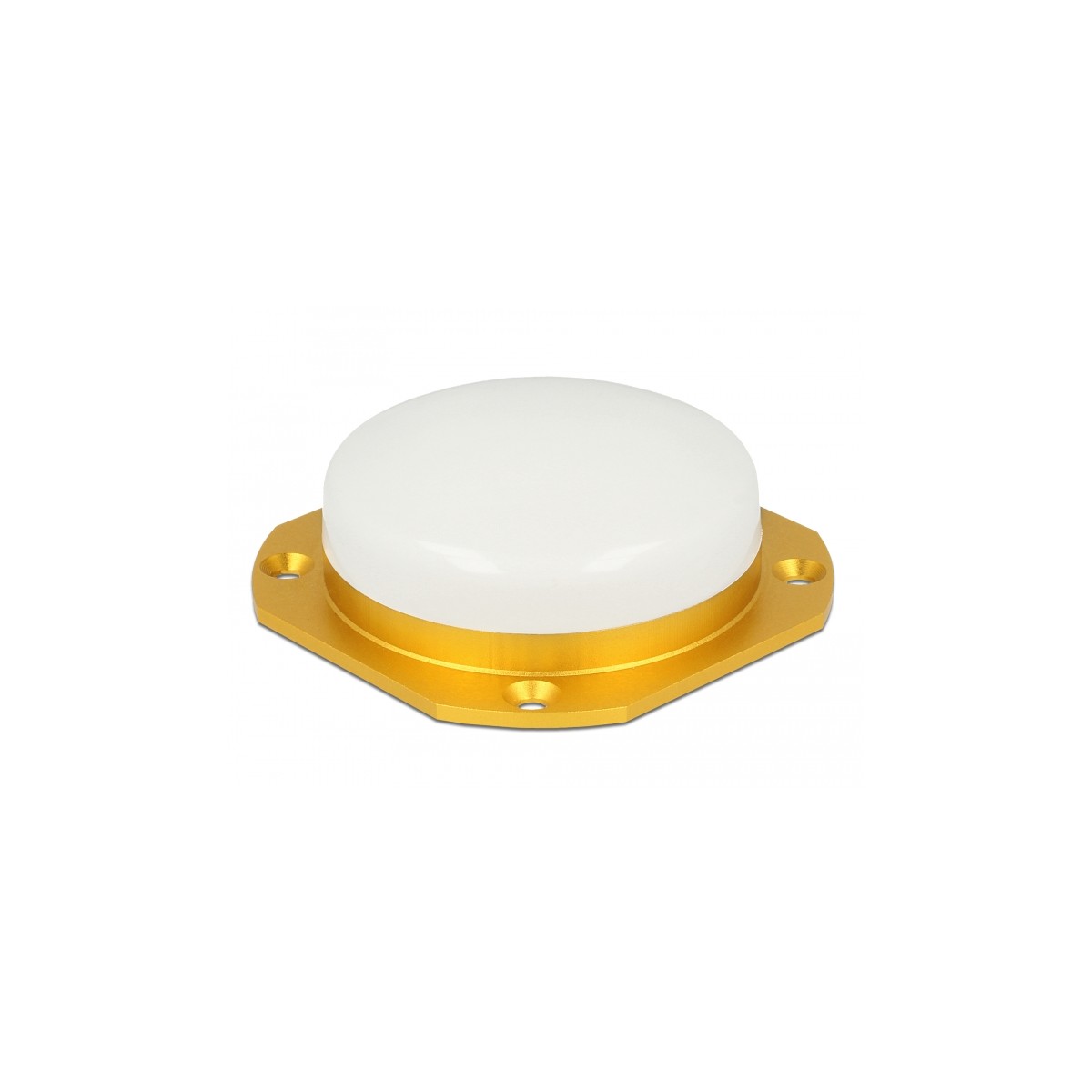

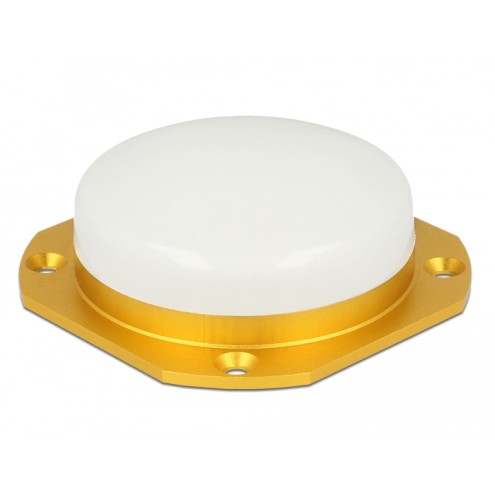

Navilock NL-60561M Dualfeed Multi GNSS BEIDOU GALILEO GLONASS GPS TNC jack Active Antenna roof mount outdoor

Description
This precise antenna by Navilock receives signals from BEIDOU, GALILEO, GLONASS and GPS satellites simultaneously on GNSS devices.

Specification

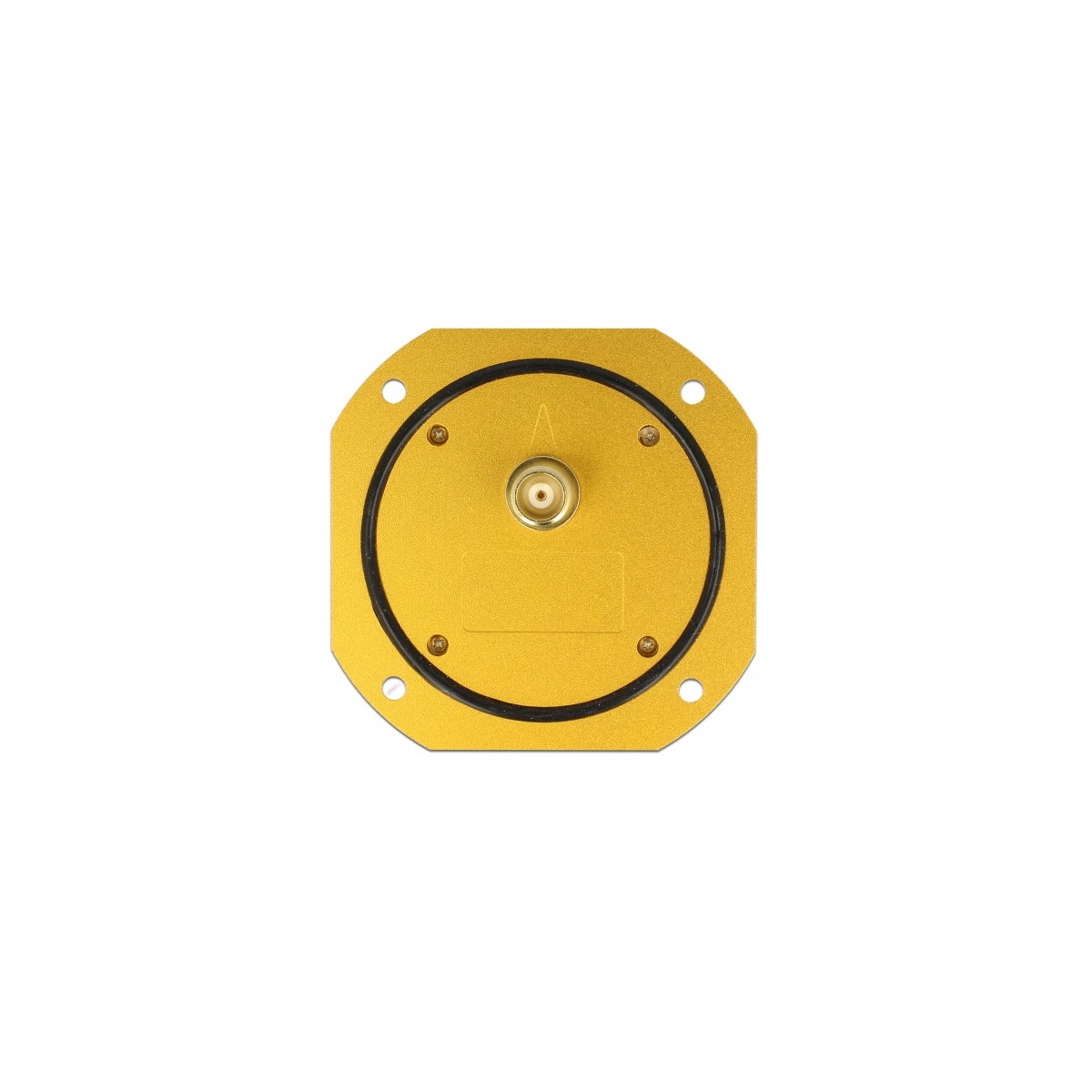

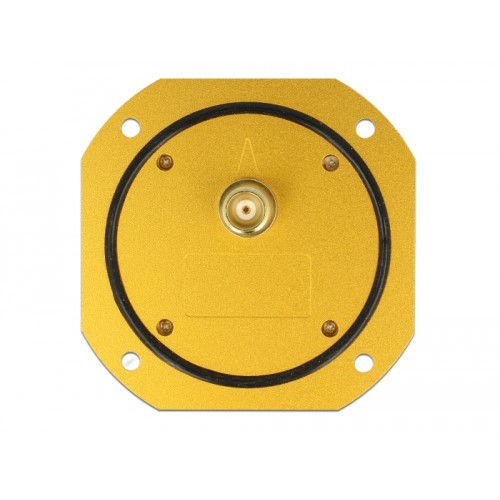

• Connector: 1 x TNC jack
• Patch antenna GNSS
  Frequency range:
  1559.052 - 1616.000 MHz
  1205.094 - 1278.750 MHz
  GNSS bands:
  BEIDOU:        B1, B1-2
  GALILEO:      E1
  GLONASS:    G1, G2
  GPS:              L1, L2
  Antenna gain: 3 dBi
  VSWR: 2
  Impedance: 50 Ohm
  Polarisation: RHCP
• LNA GNSS:
  Frequency range:
  1559.052 - 1616.000 MHz
  1205.094 - 1278.750 MHz
  GNSS bands:
  BEIDOU:        B1, B1-2
  GALILEO:      E1
  GLONASS:    G1, G2
  GPS:              L1, L2
  Gain: 40 dBi
  Noise figure: < 1.5 dB
  Passband fluctuation: +/- 1 dB
  Voltage: 3.3 - 5.0 V
  Current: 45 mA
  VSWR: < 2
  1 dB compression point P1dB: > 0 dB
  Impedance: 50 Ohm
• Housing colour: white
• Housing material: ABS
• Protection class: IP67
• Operating temperature: -40 °C ~ 85 °C
• Weight: ca. 150 g
• Diameter: ca. 90.0 mm
• Height: ca. 30.3 mm

System requirements
• Antenna cable with a free TNC plug
• GNSS receiver

Package content
• GNSS antenna

Package
• Box
