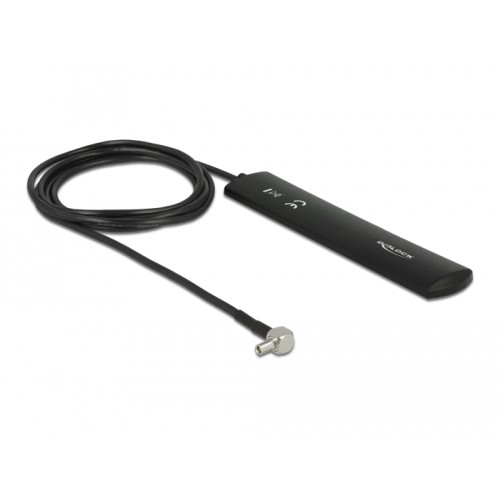

Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive
Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive

Delock LTE Antenna TS-9 plug 90° 3 dBi omnidirectional fixed black self adhesive

12479
New
€6.95



Description
This Delock LTE antenna allows the use of different LTE bands indoors. It is completely Bluetooth, GSM, UMTS, WLAN 2.4 GHz, Z-Wave and ZigBee compatible.

Specification
• Connector: TS-9 plug
• LTE Band 1 - 10 / 12 - 20 / 23 / 25 - 30 / 33 - 41 / 44
• Frequenzy range: 690 - 960 / 1710 - 2700 Mhz
• Bluetooth / GSM / UMTS / WLAN 2.4 GHz / Z-Wave / ZigBee
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Horizontal beam angle: 360°
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS UV resistant
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
• Cable: coaxial
• Cable type: RG-174
• Cable color: black
• Cable loss: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 1 m

System requirements
• Device with a free TS-9 connector

Package content
• LTE antenna

Package
• Poly bag

New
4043619124794
