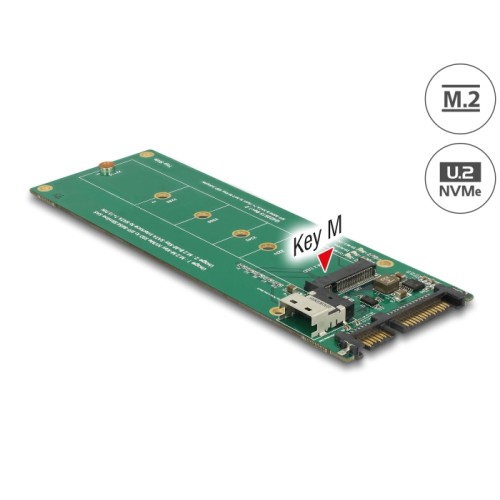

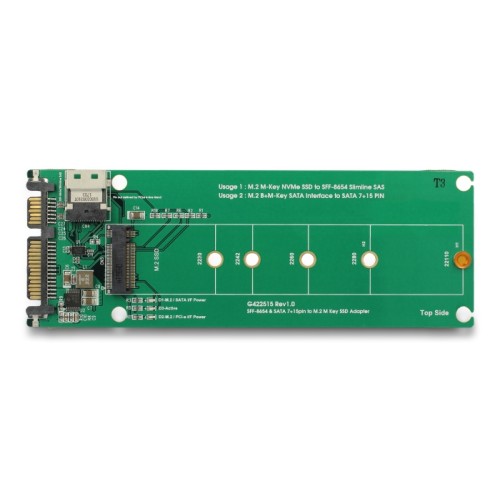

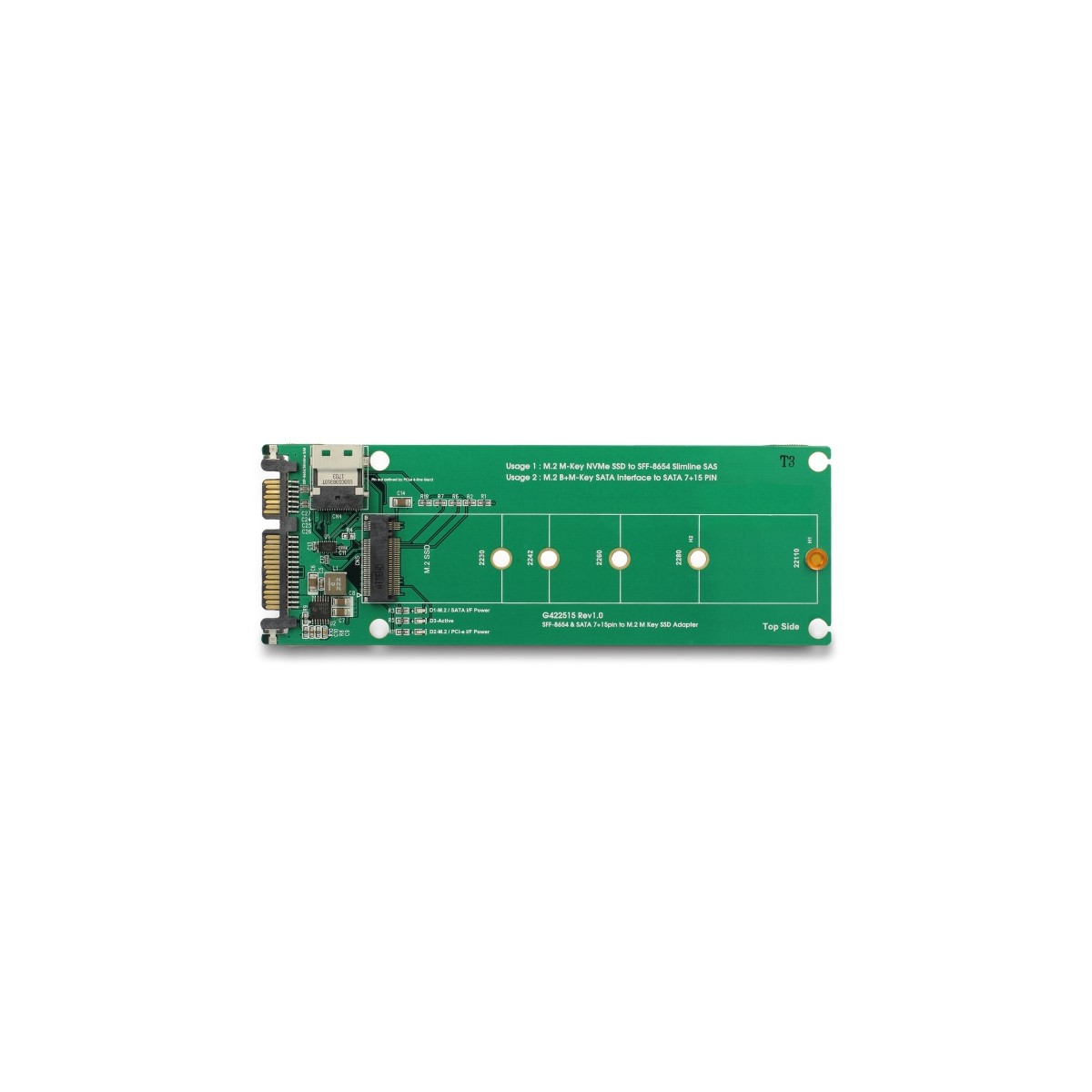

Delock U.2 SFF-8654 or SATA Converter to 1 x M.2 Key M slot

Description

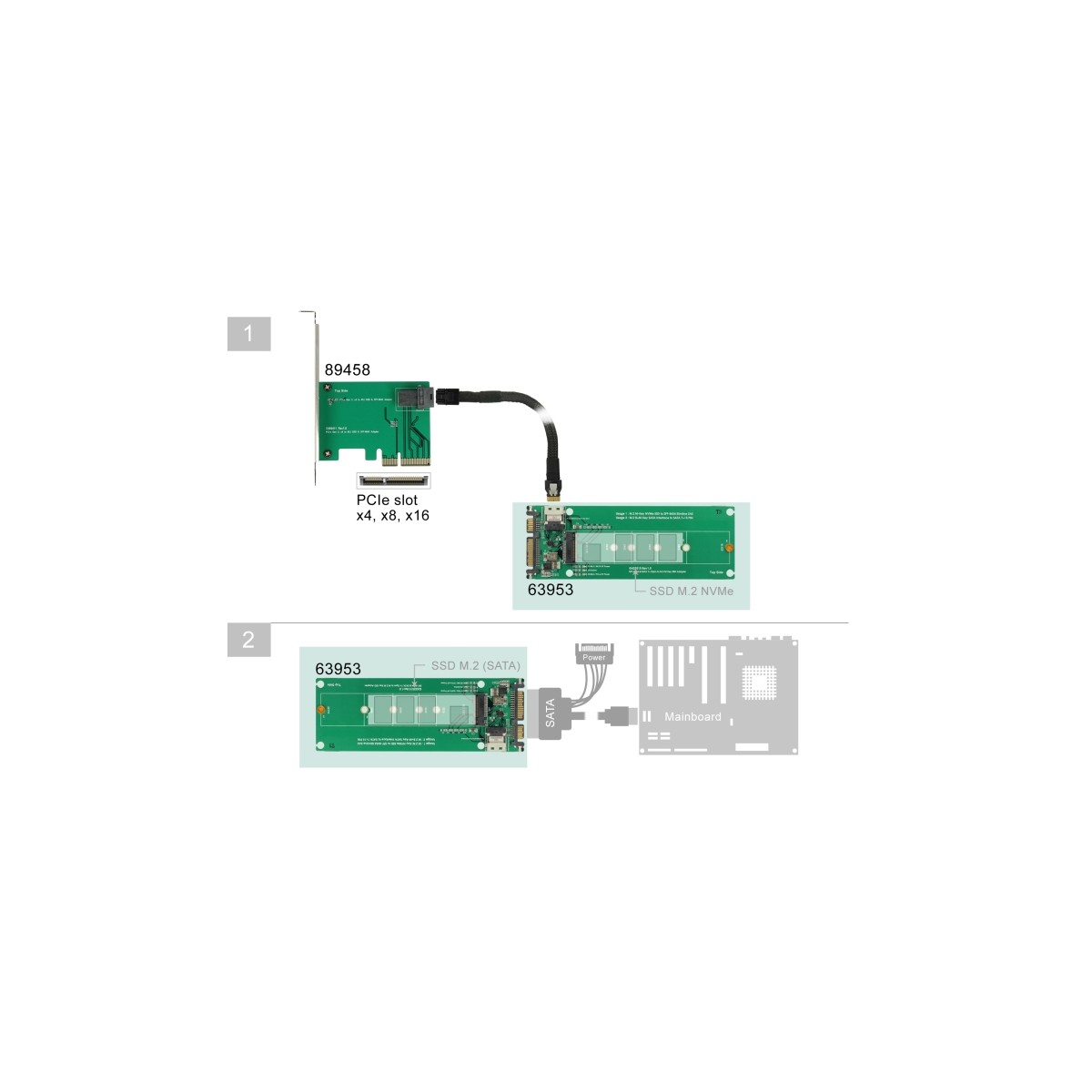

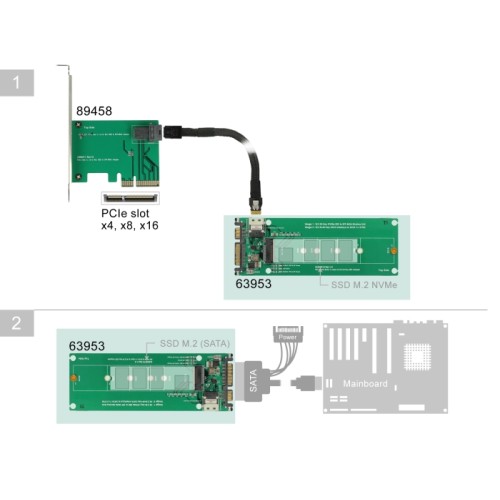

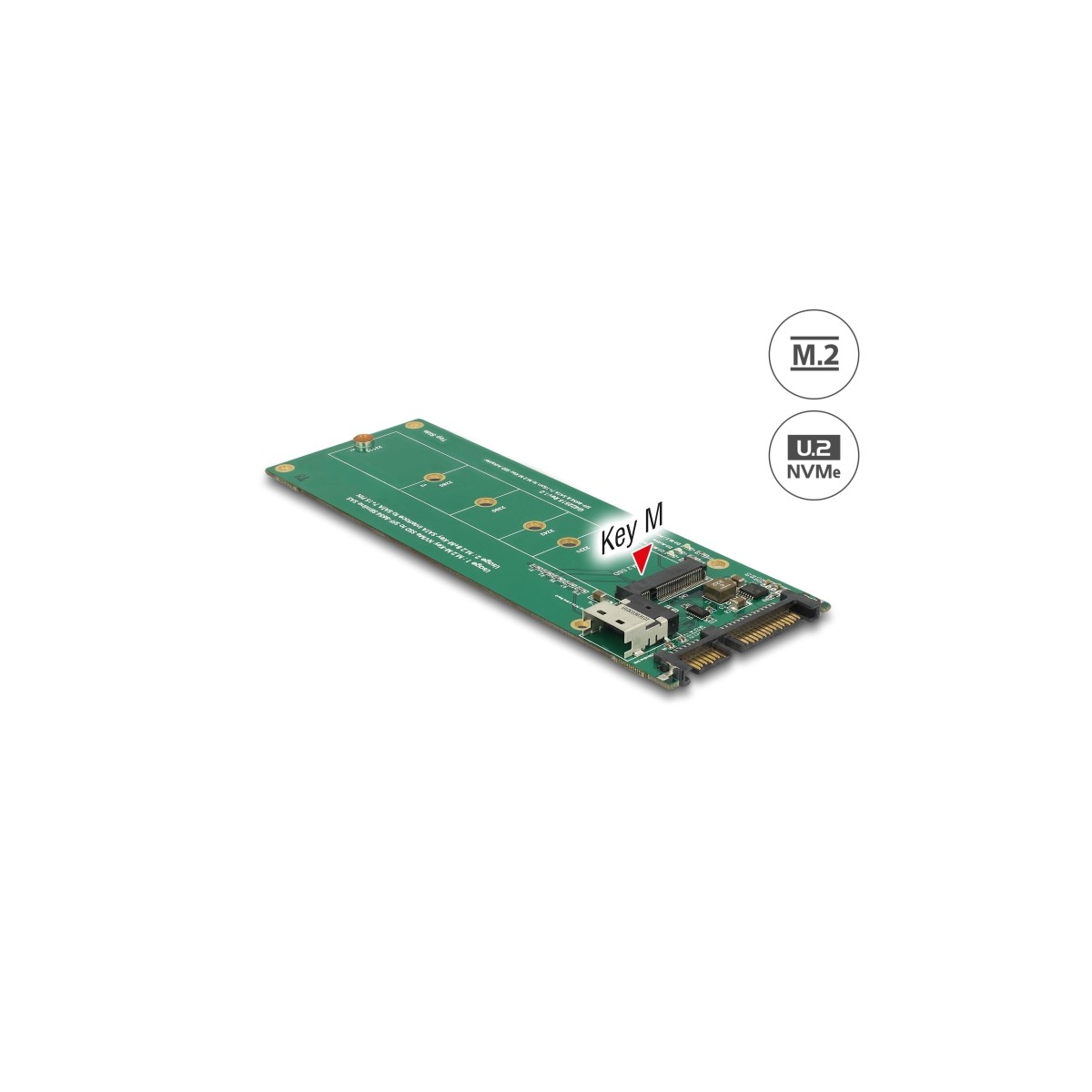

This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the possibility to connect a PCIe or SATA M.2 SSD. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the U.2 interface while using a PCIe M.2 SSD.

Specification

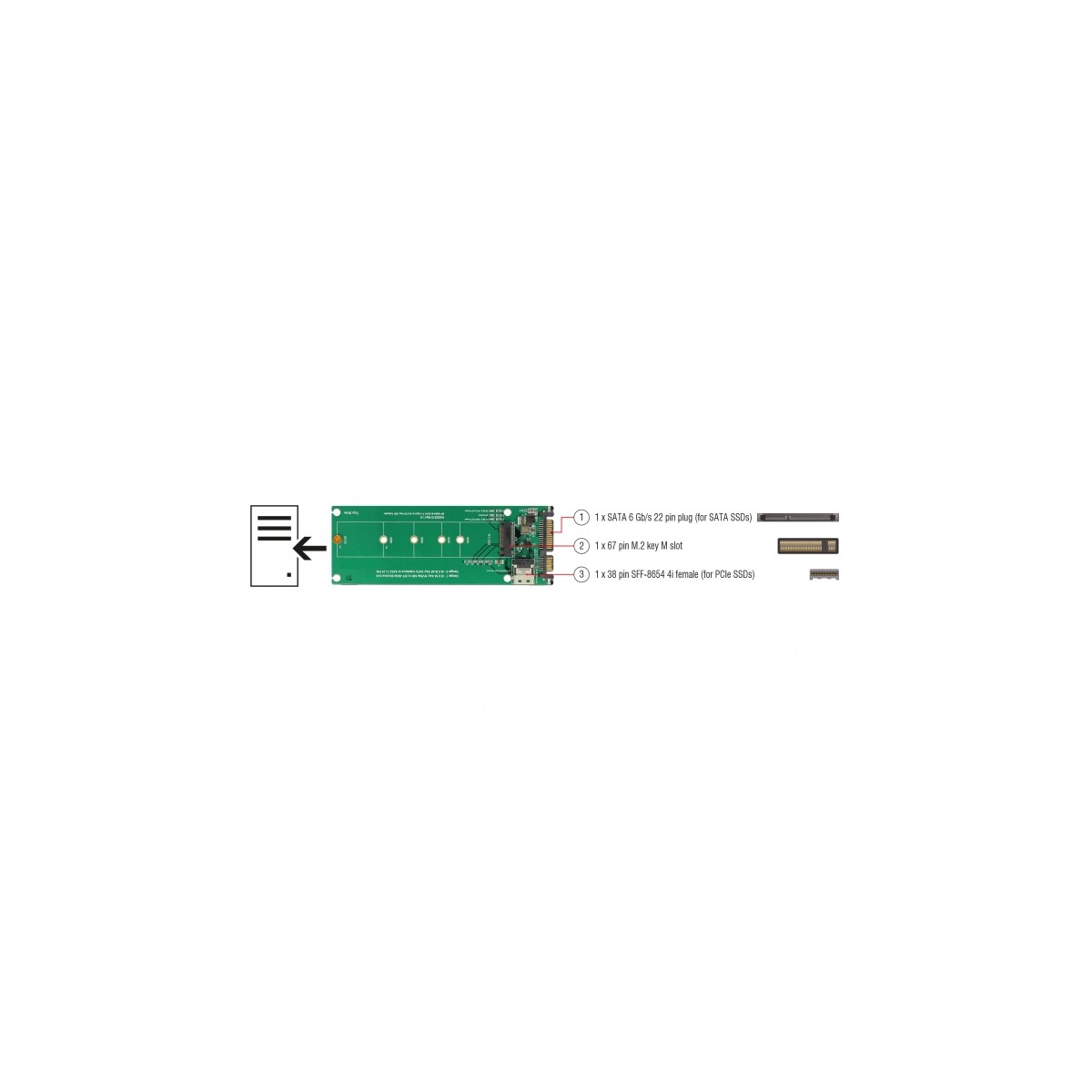

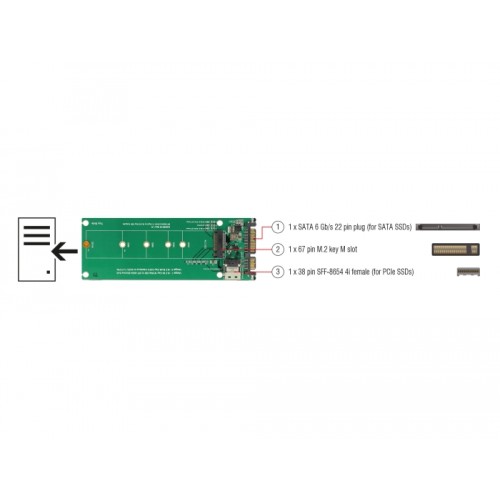

• Connectors:
  1 x 38 pin SFF-8654 4i female (for PCIe SSDs)
  1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs)
  1 x 67 pin M.2 key M slot
• Interface: PCIe / SATA
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
  or key B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 51 x 9 mm

System requirements
• Linux Kernel 3.19 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8643 interface (PCIe SSD) or
• A free SATA 22 pin interface (SATA SSD)

Package content
• Converter

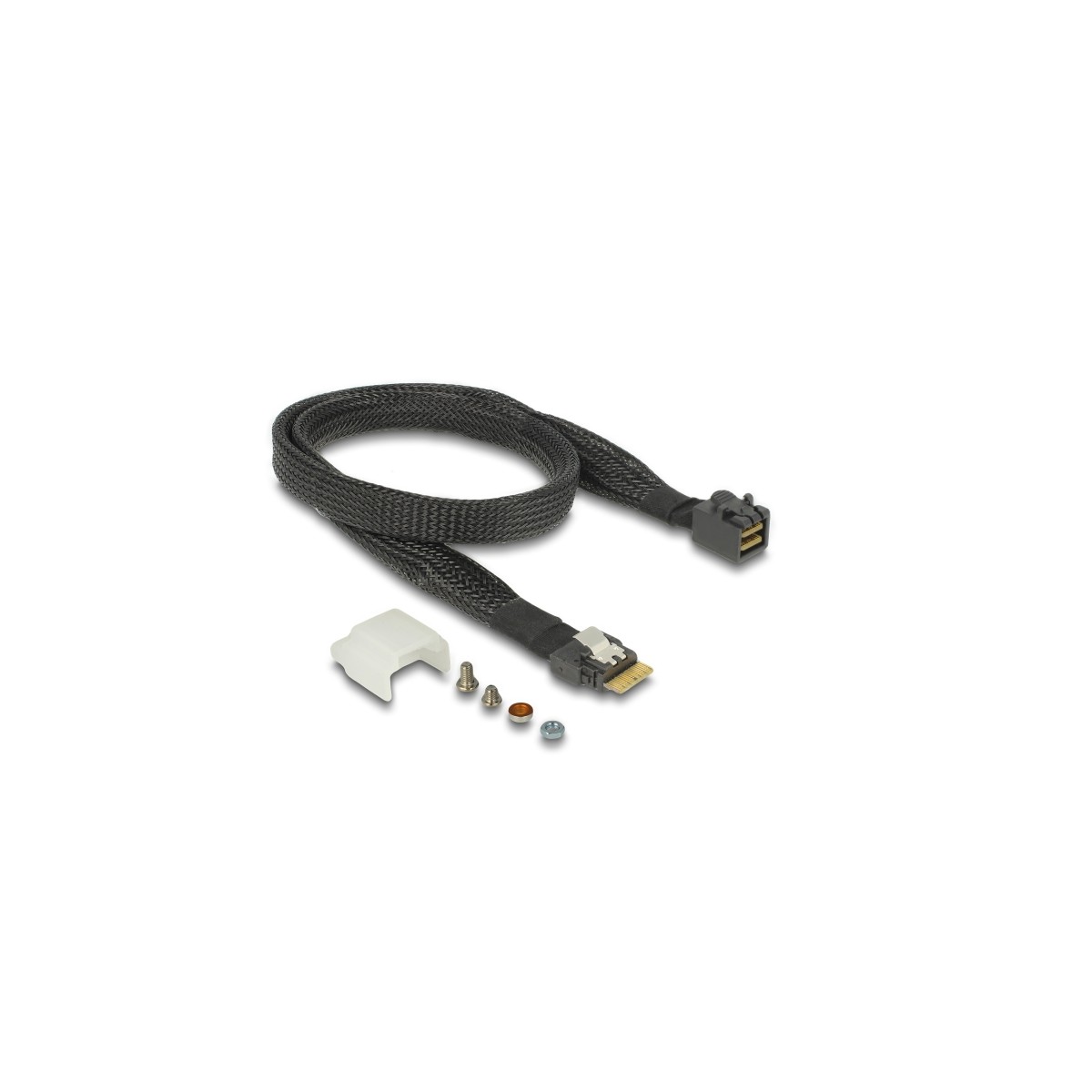

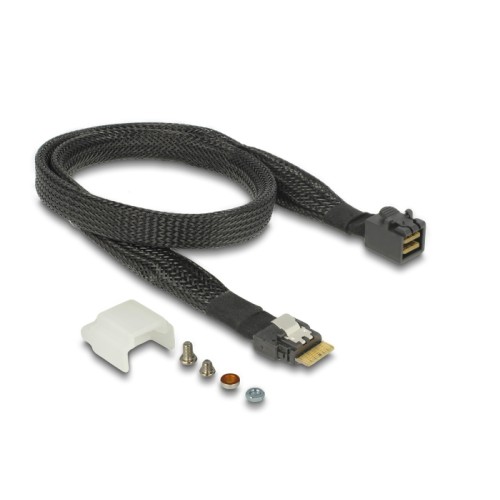

• Cable SFF-8654 4i female to SFF-8643 male, length ca. 50 cm
• Mounting material
• User manual

Package
• Box
