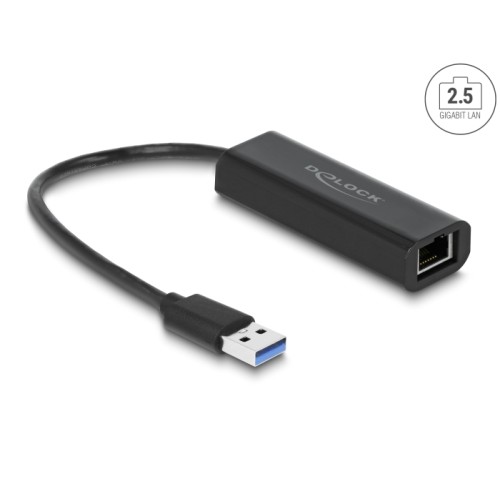

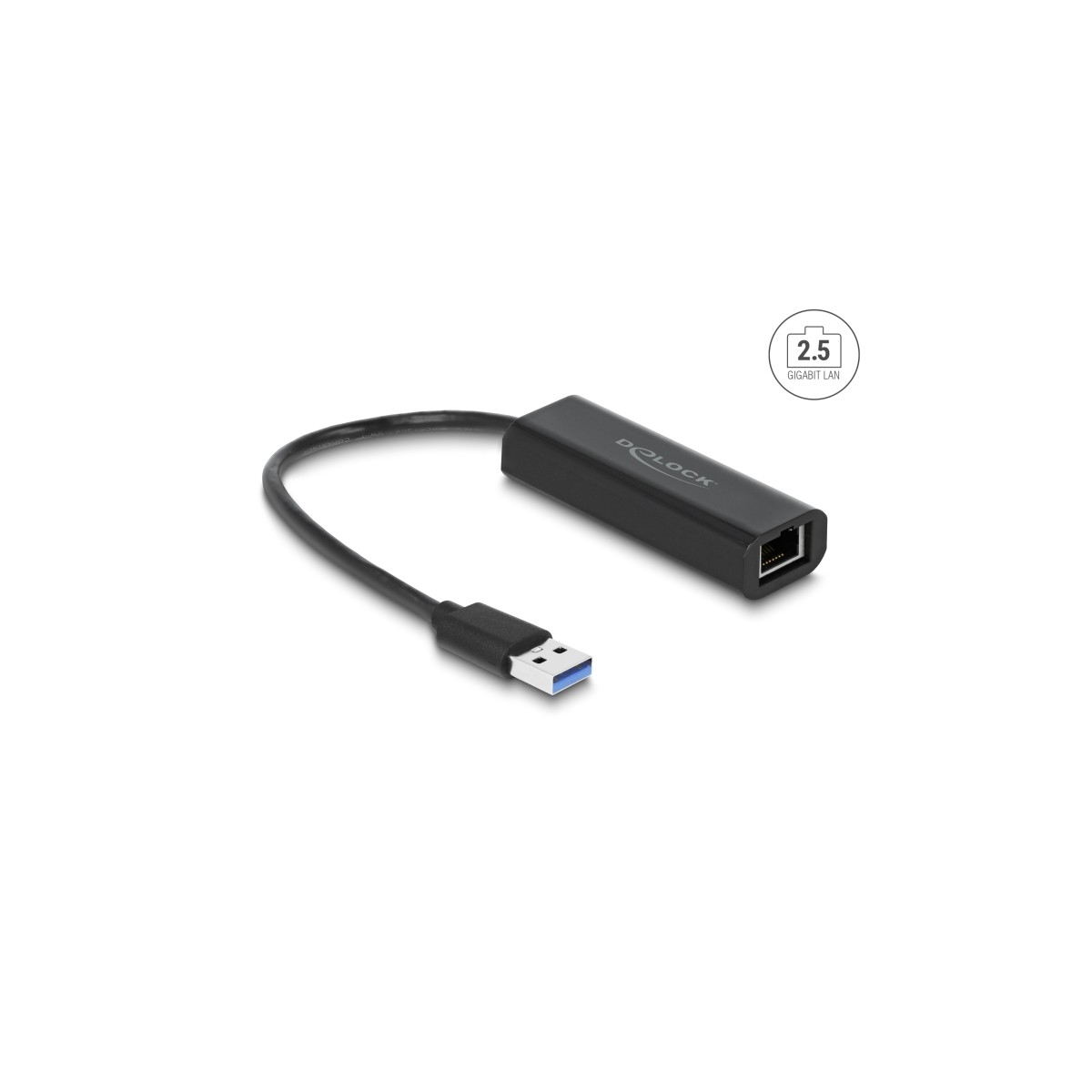

Delock Adapter USB Type-A male to 2.5 Gigabit LAN

Description
The adapter by Delock expands a PC or laptop by one network interface via the USB Type-A interface.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Specification
• Connectors:
 1 x SuperSpeed USB (USB 3.1 Gen 1) Type-A male >
 1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8156
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
 Fast Ethernet up to 100 Mbps (Half/Full Duplex)
 Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
 NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
• Compatible with:
 IEEE 802.3u: 100BASE-TX
 IEEE 802.3ab: 1000BASE-T
 IEEE 802.3bz: 2.5GBASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and
 half duplex operation with back-pressure flow control
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Dimensions (LxWxH): ca. 75 x 25 x 11 mm
• Cable length without connectors: ca. 15 cm

System requirements
• Linux Kernel 4.2 or above
• Mac OS 10.14 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Device with a free USB Type-A female port

Package content
• USB Type-A 2.5 Gigabit LAN adapter
• User manual

Package
• Retail Box
