Description

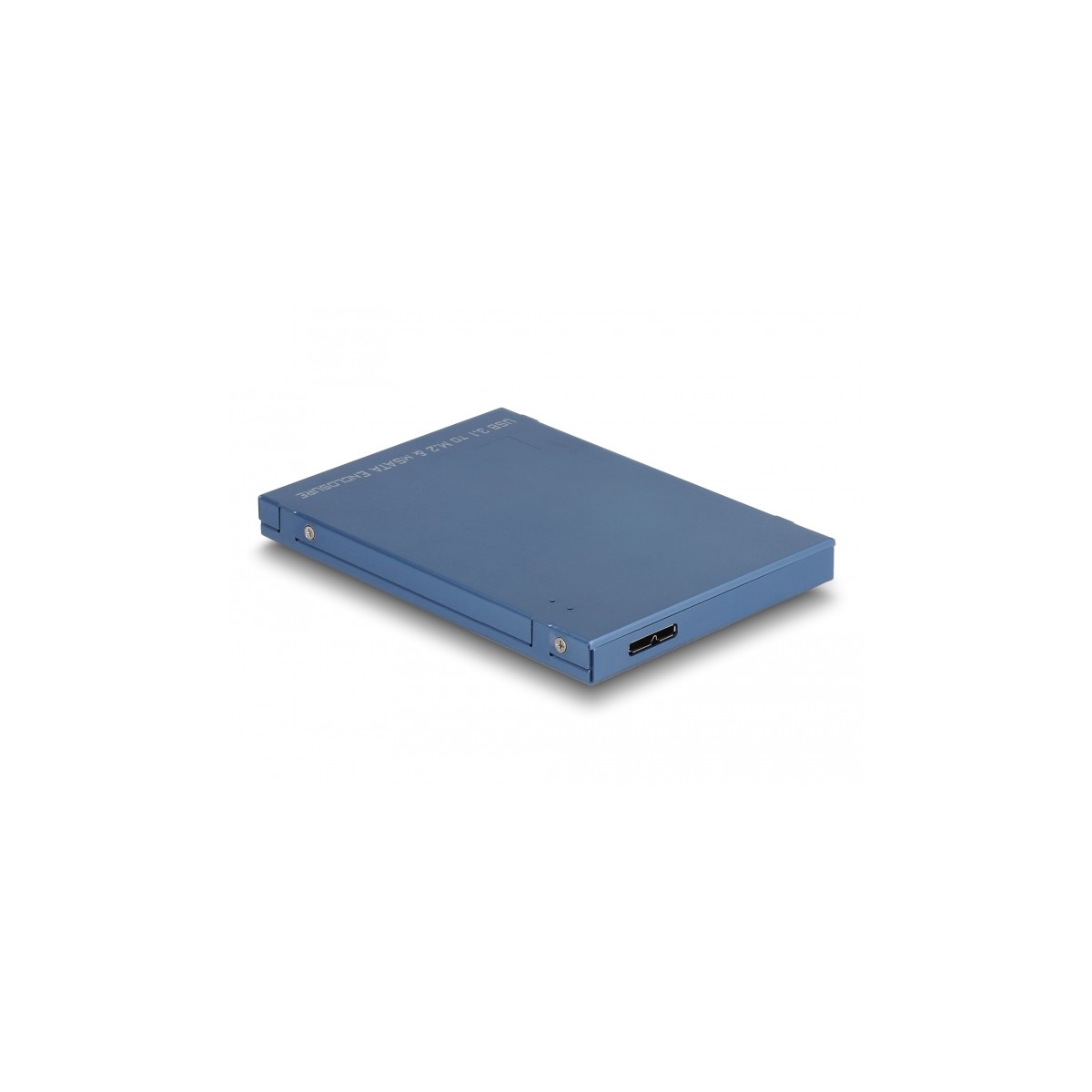

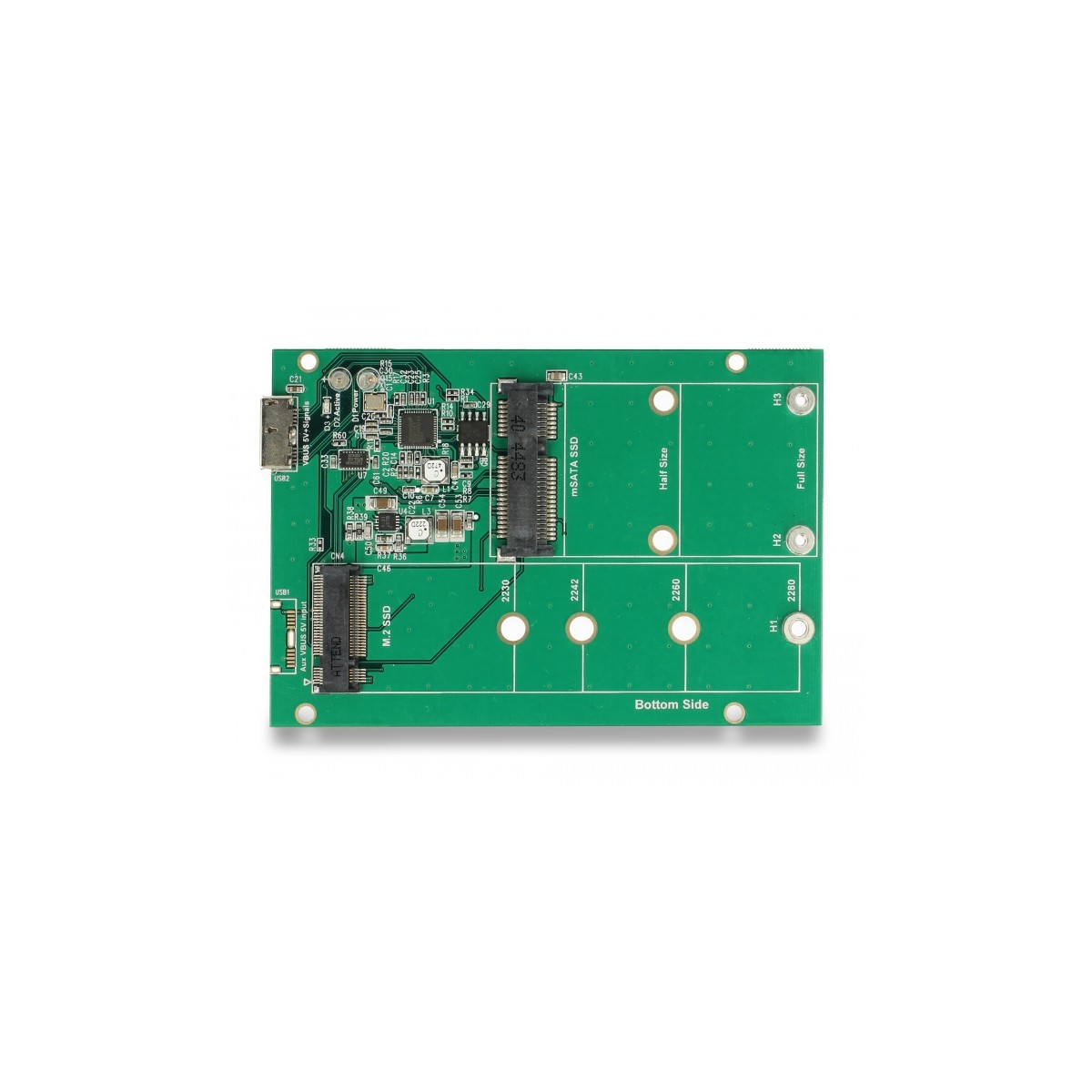

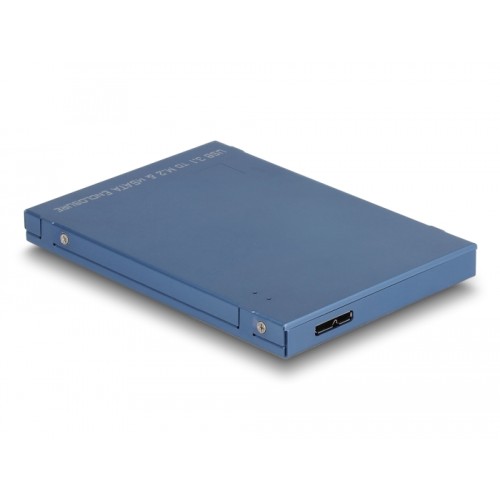

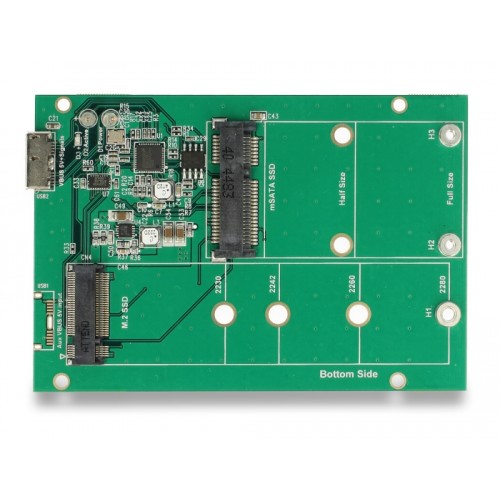

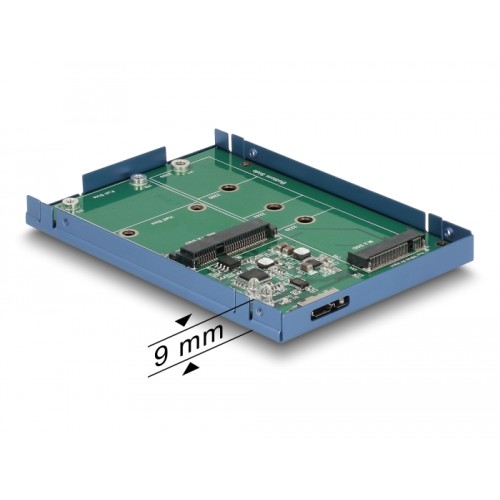

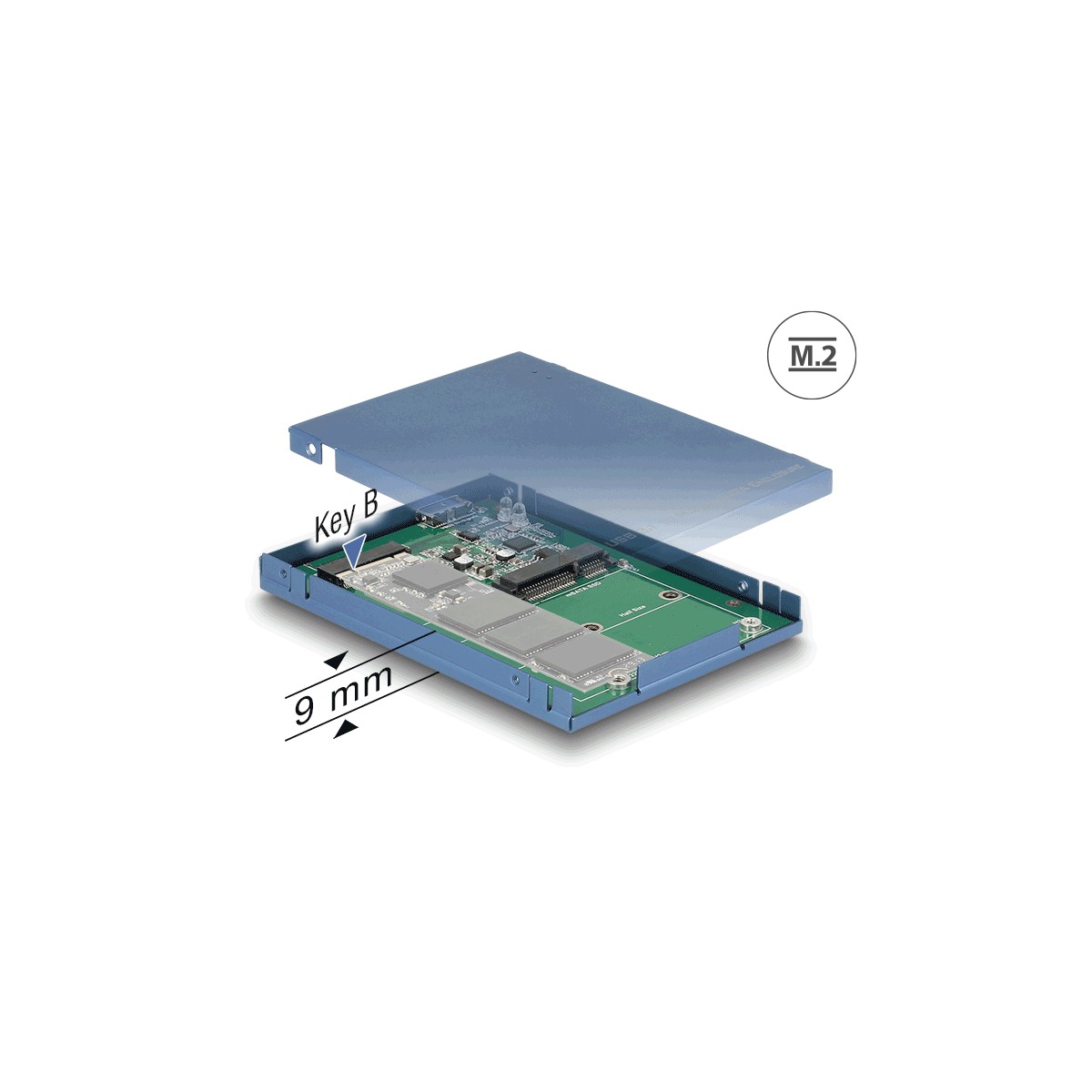

This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format or an mSATA SSD in half size or full size format. If both slots are occupied, only the M.2 SSD can be used. The converter can be installed into the system through the USB interface.
Specification
• Connector:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type Micro-B female >
1 x 67 pin M.2 key B slot
1 x mSATA slot (half size / full size)
• Interface: SATA
• Form factor: 2.5″

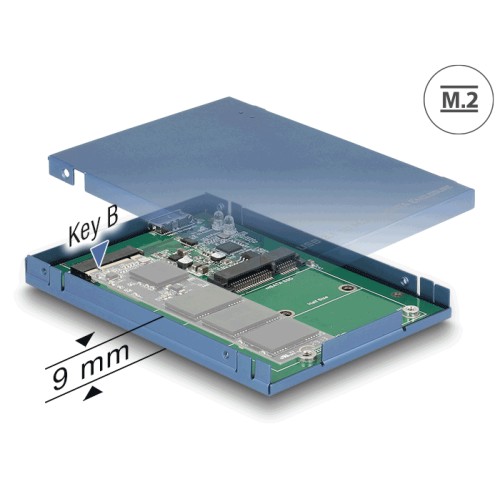

• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based
on SATA
• Maximum height of the components on the module: 1.35 mm application of double-sided
assembled modules supported
• LED indicator
• Maximum current for M.2 module: 3 A
• Short circuit protection, over heating protection
• ESD protection up to 2 Kv

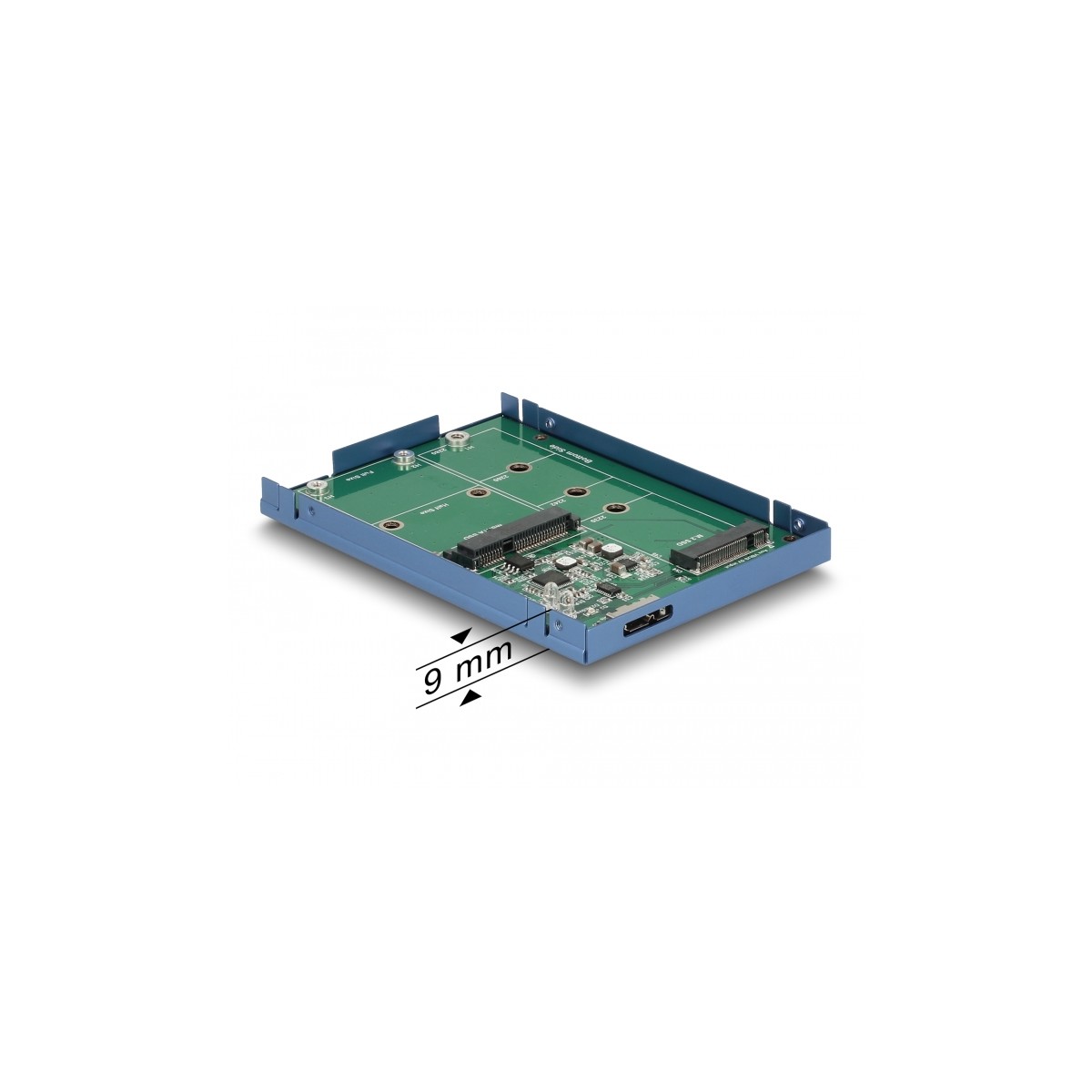

• Dimensions (LxWxH): ca. 100 x 70 x 9 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6
• A free USB interface

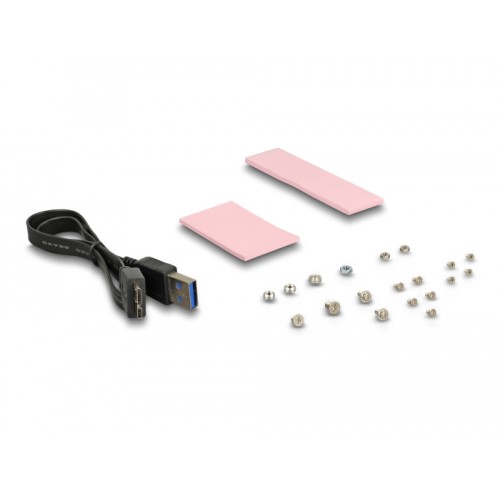

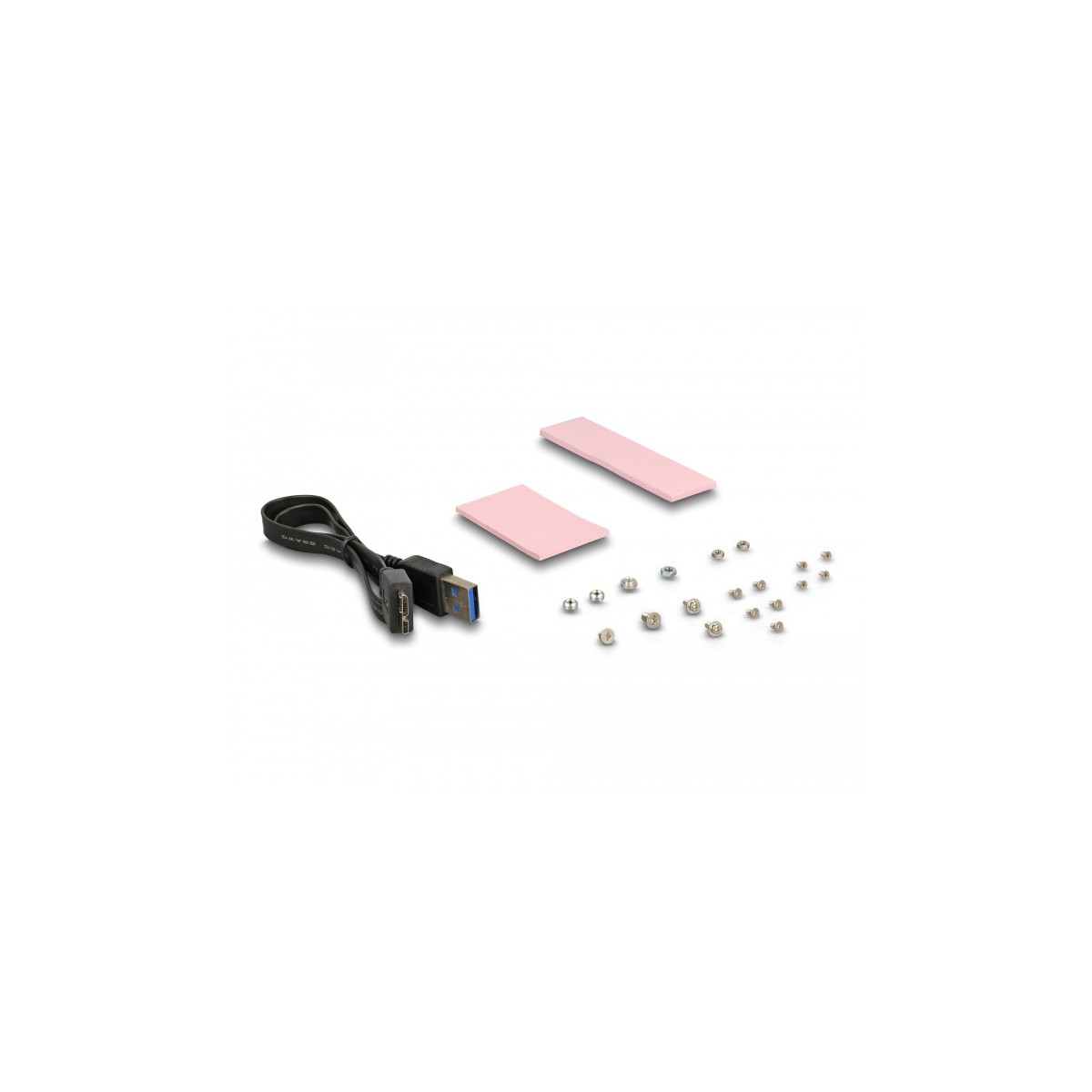

Package content
• Converter

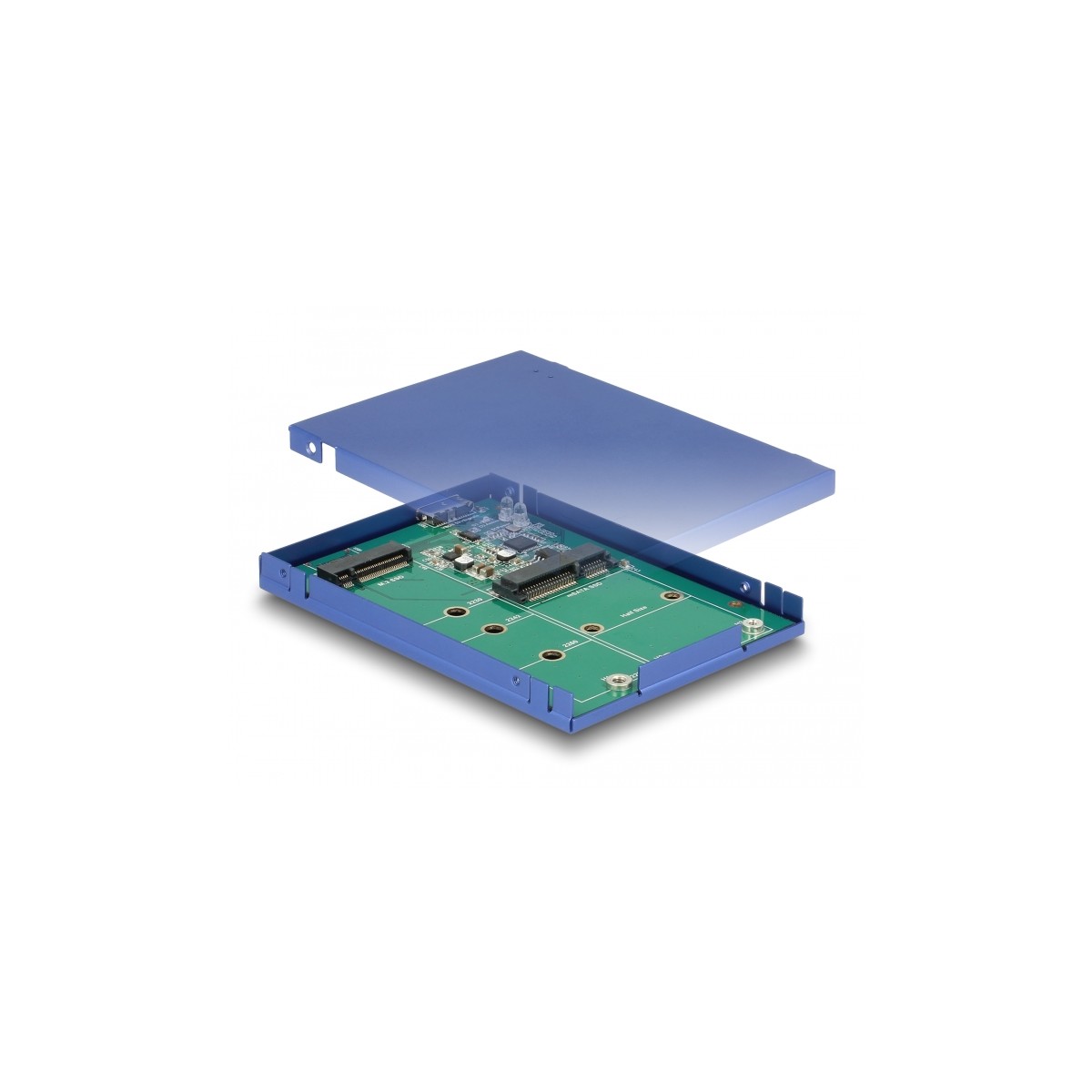

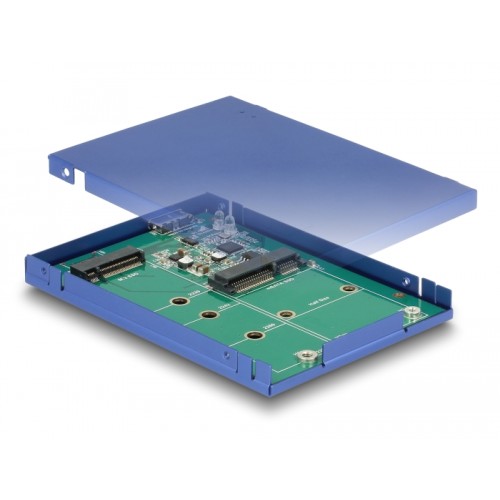

• 2.5″ enclosure
• Fixing screws for M.2 module, mSATA module and enclosure
• USB cable, length ca. 35 cm
• Cooling pad for M.2 and mSATA module
• User manual
Package
• Retail Box
New
4043619627318
