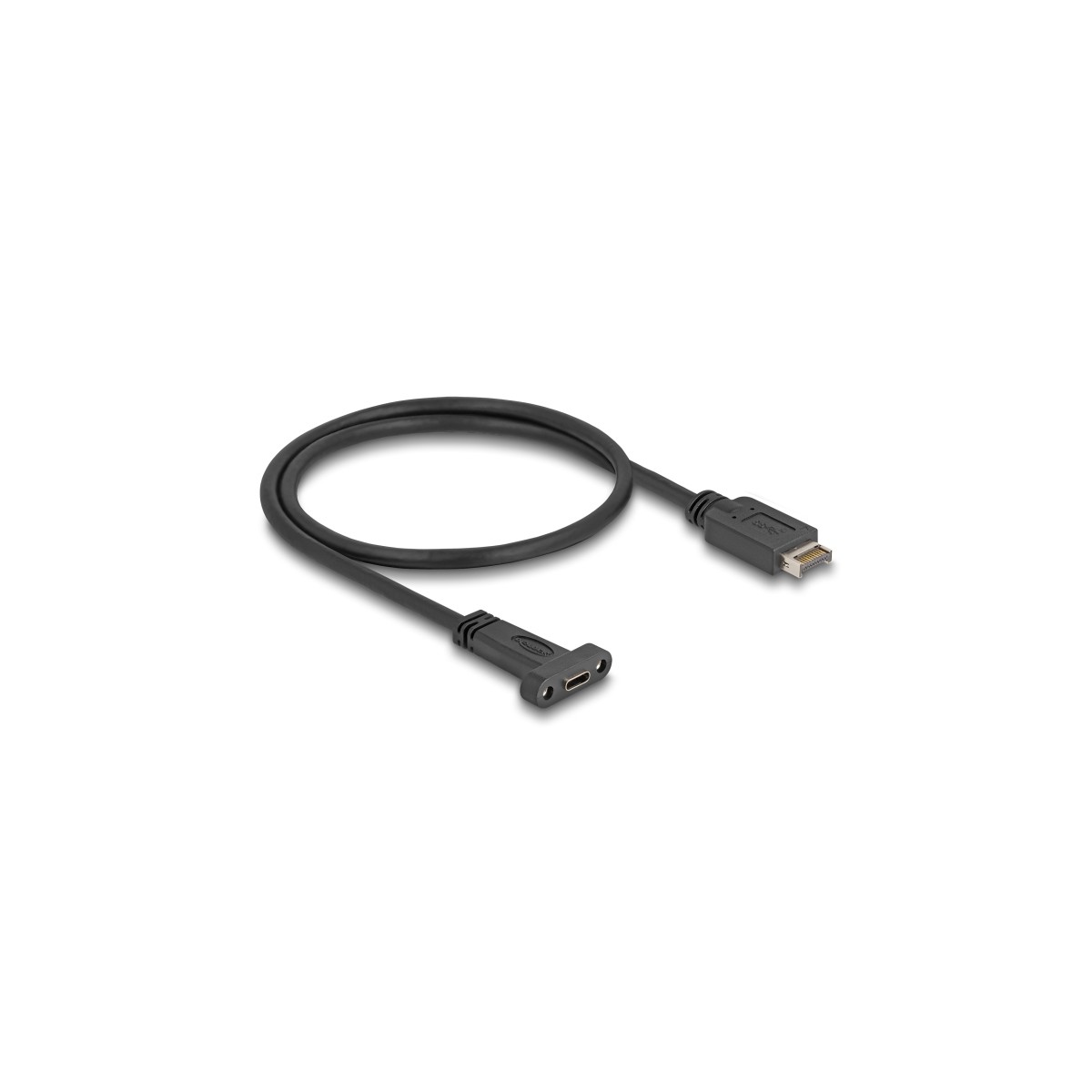

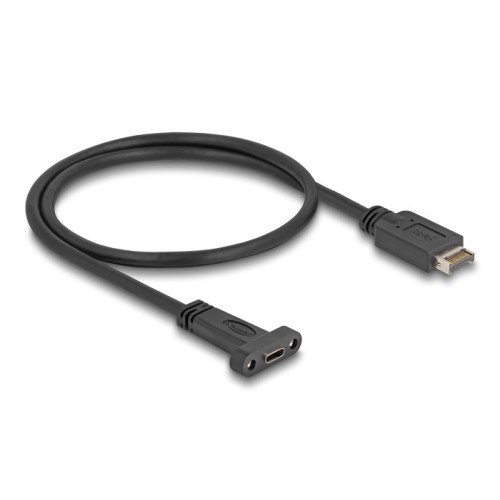

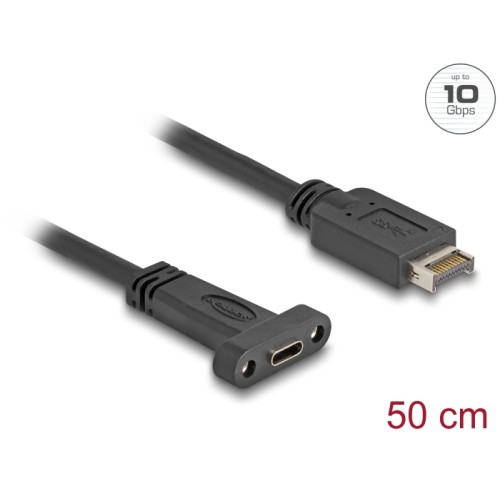

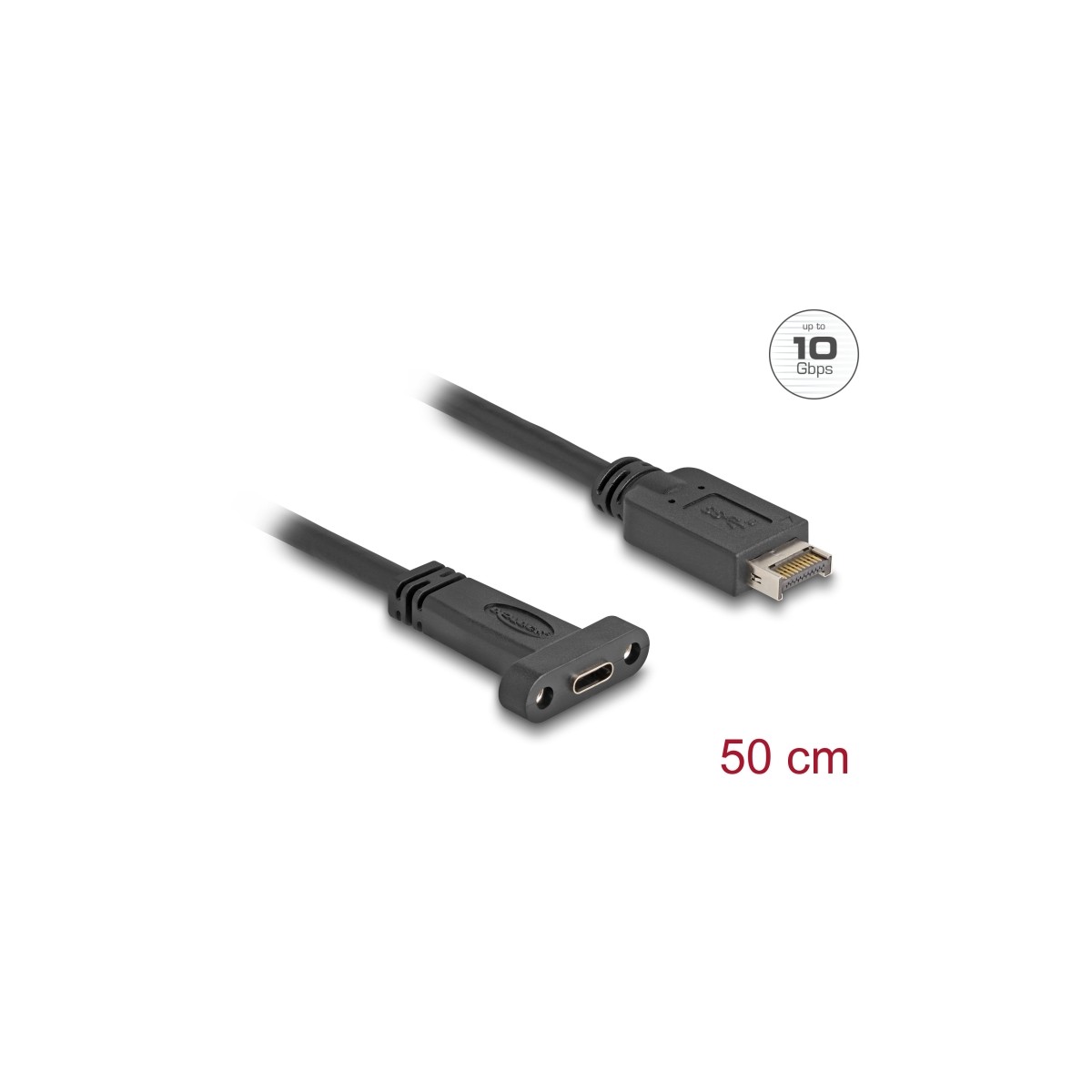

Delock USB 10 Gbps Cable USB Type-E Key A 20 pin male to USB Type-C™ female panel-mount 50 cm
85526
New
Description
This cable by Delock can be connected to the internal USB 10 Gbps USB Type-E Key A socket of a motherboard or a PCI Express card and can be used to extend a USB connection. The USB Type-C™ connector can be attached with two existing screws, e.g. on a slot bracket or a chassis with the corresponding recess. In this way, it is possible to install a USB connector in an easily accessible position.
Specification
• Connectors:
1 x USB 10 Gbps type-E Key A 20 pin male
1 x USB 10 Gbps USB Type-C™ female
• Two mounting holes for screws, spacing 20 mm, with M3 thread
• Output: 5.0 V / 1.5 A
• Cable gauge:
32 AWG data line
24 AWG power line
• Cable diameter: ca. 4.5 mm
• Length incl. connectors: ca. 50 cm
System requirements
Package content
• USB cable
This cable by Delock can be connected to the internal USB 10 Gbps USB Type-E Key A socket of a motherboard or a PCI Express card and can be used to extend a USB connection. The USB Type-C™ connector can be attached with two existing screws, e.g. on a slot bracket or a chassis with the corresponding recess. In this way, it is possible to install a USB connector in an easily accessible position.
Specification
• Connectors:
1 x USB 10 Gbps type-E Key A 20 pin male
1 x USB 10 Gbps USB Type-C™ female
• Two mounting holes for screws, spacing 20 mm, with M3 thread
• Output: 5.0 V / 1.5 A
• Cable gauge:
32 AWG data line
24 AWG power line
• Cable diameter: ca. 4.5 mm
• Length incl. connectors: ca. 50 cm
System requirements
Package content
• USB cable
