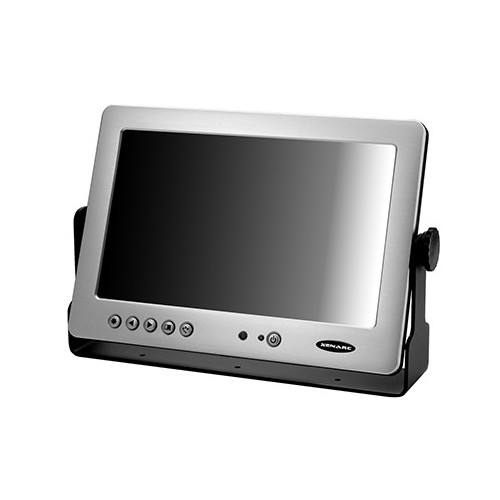

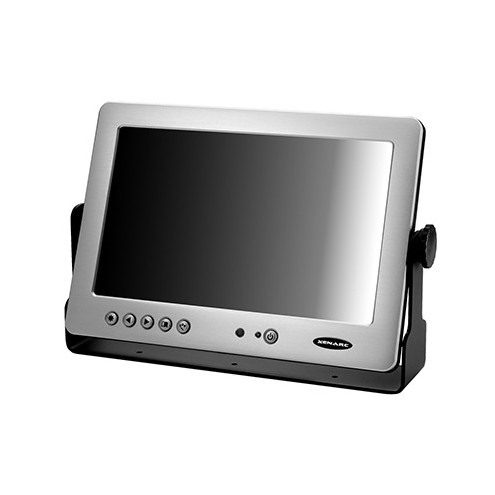

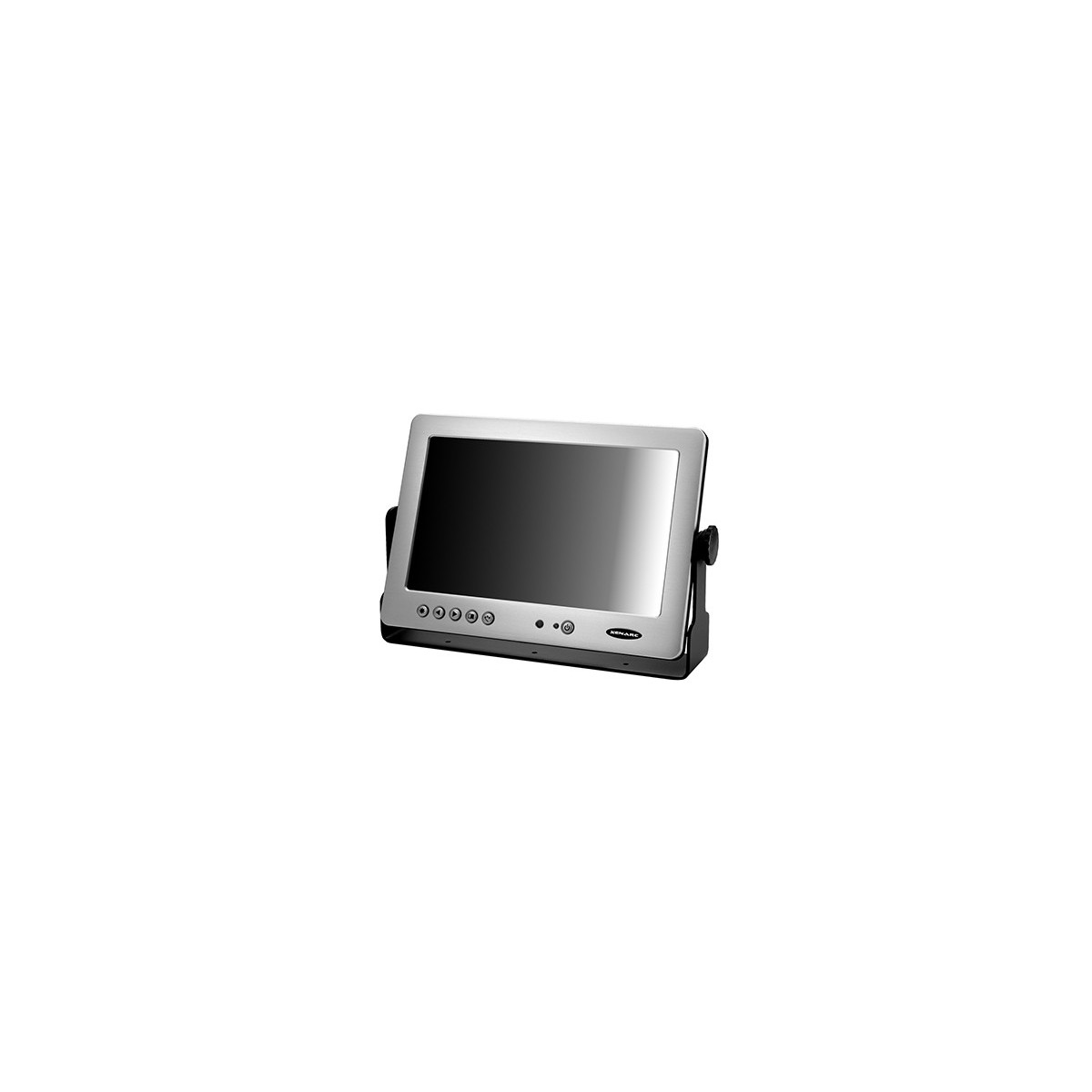

10.1" LCD Display Monitor with HDMI, DVI, VGA & AV Inputs (touchscreen optional)

Small 10.1 "industrial monitor with HDMI port for video input. The use of solid capacitors increase stability and durability especially in high temperature conditions.

The front plate in anodized aluminum gives the 10.1 "touchscreen monitor a futuristic but elegant appearance.

Applications:

• Transportation: Naval, Avionics, Heavy Vehicles, Onboard Computer, Public Transportation
• Integration: Machine Control, Industrial Automation, Environmental Monitoring, Home Automation, Home Automation
• Selling Points: Receptions, Digital Signage, Self-Service Stations, Outdoor Totems

Specifications:

• Screen Size: Diagonal 10.1"  (16:9)
• Physical Resolution: 1024 (H)  x 600 (V) WXGA
• Supported Resolution: 640 x 480 ~ 1920 x 1080
• Dot Resolution: 3072 x 600 = 1,843,200 (dots)
• Brightness: 400 cd/m²
• Contrast Ratio: 600:1
• Viewing Angle: 140° Horizontal, 120° Vertical
• Response Time (Tr/Tf): 5/20ms (Typ.)
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 9V ~ 36V
• Power Supply: DC 12V
• Power Consumption: ≤ 20W
• Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
• Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
• Vibration: Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
• Shock: Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 265W x 186H x 33.2D
• Weight (kg): 1,5

• 400NIT Hight Brightness Long Life LED Backlight
• Automatic Backlight Adjustment through Built-in Ambient Light Sensor
• 5-Wire Resistive Touchscreen
• Anti-Glare Coating
• Multi-Monitor Touchscreen Support
• HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• DVI Input through included DVI to HDMI Adaptor
• Audio Input x 3 / Built-In Speakers
• 1024x600 Native Resolution, 16x9 Aspect Ratio
• Solid Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• IR Remote Control
• Auto Power-On upon signal detection
• Mirror and Vertical Image Flip
• Function to Disable Front Button(s) and On Screen Text
• AV2 Auto Switching for Backup Camera

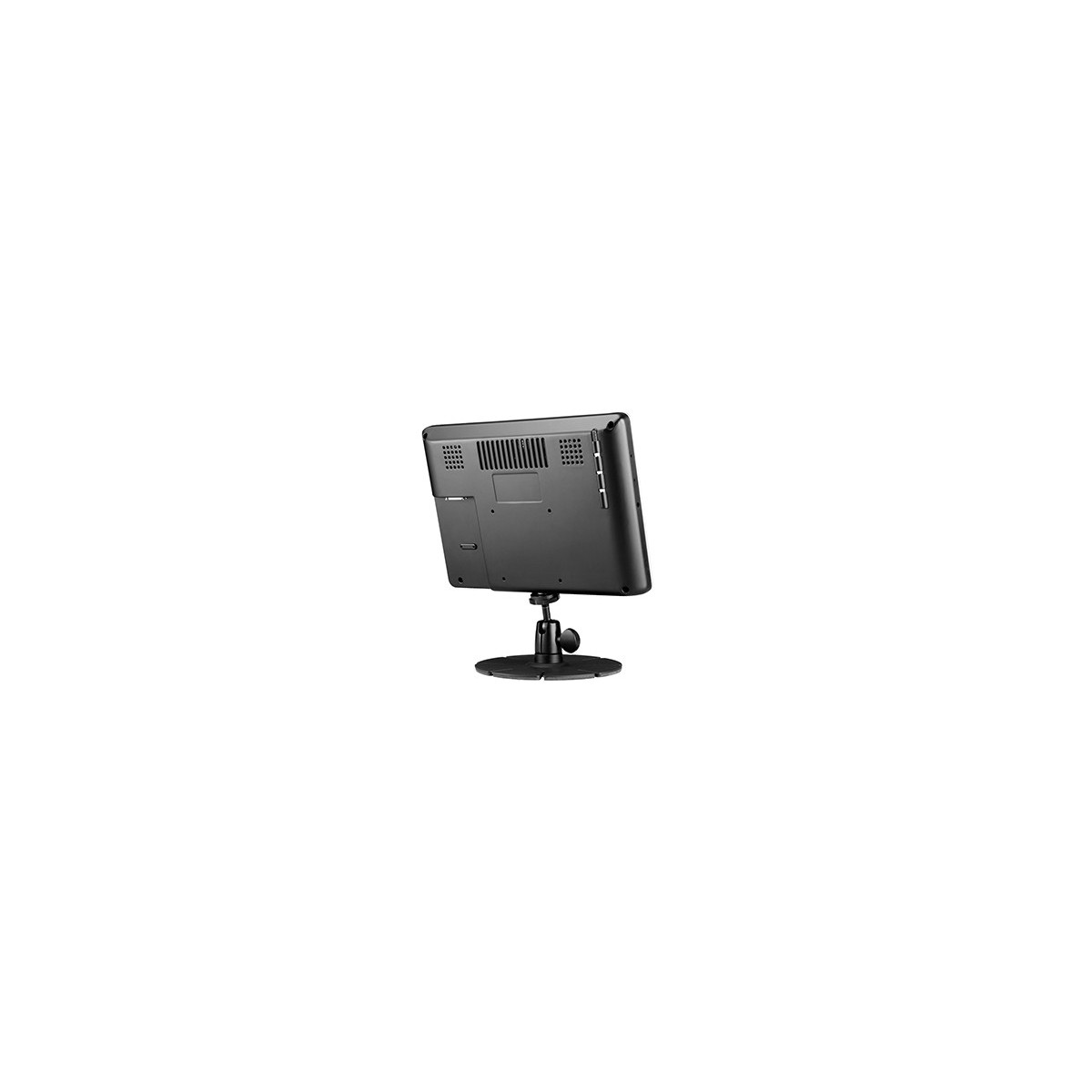

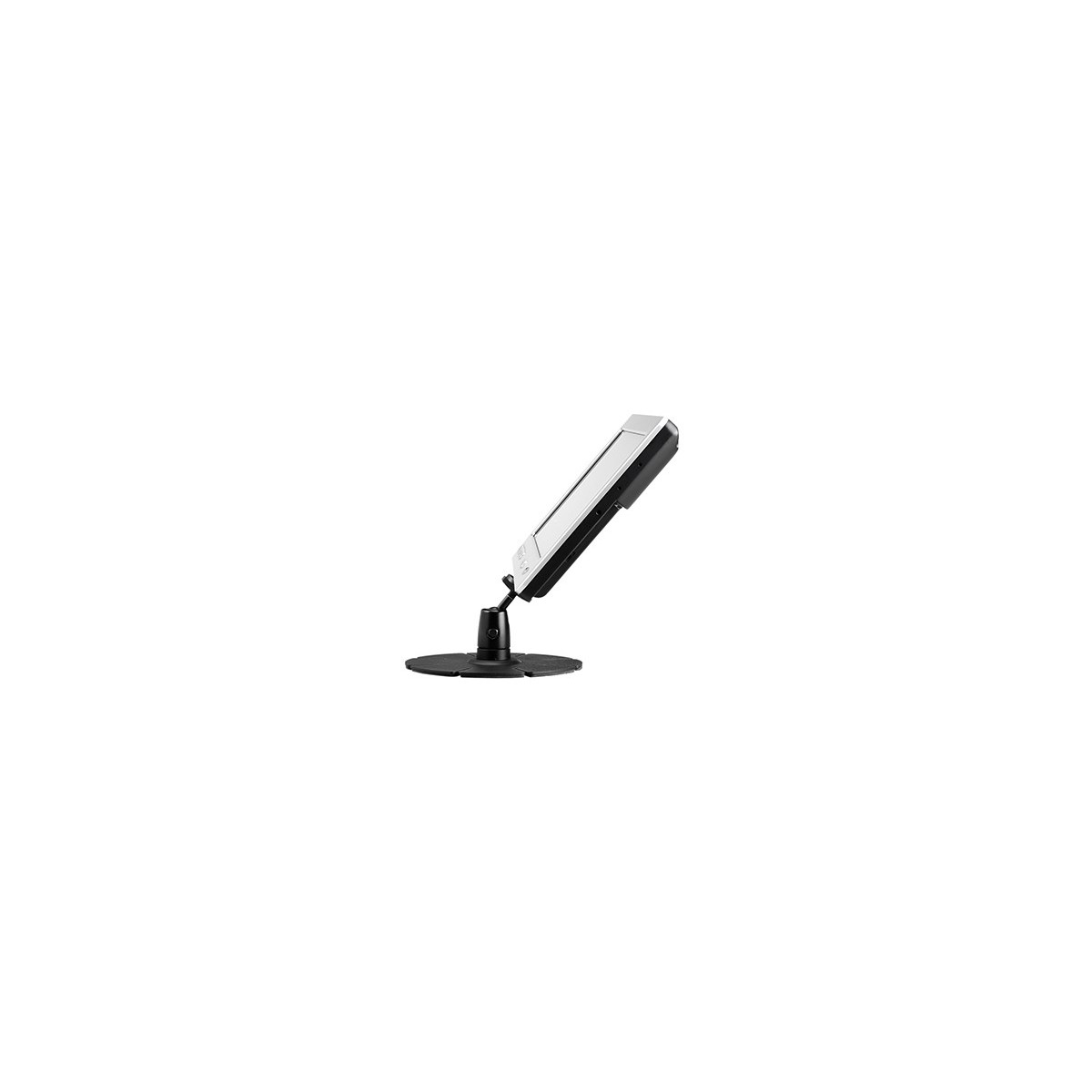

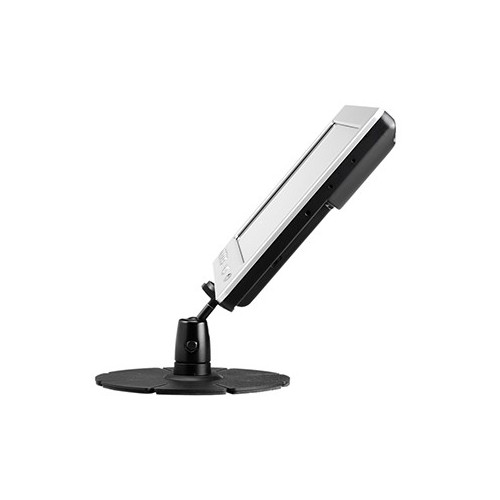

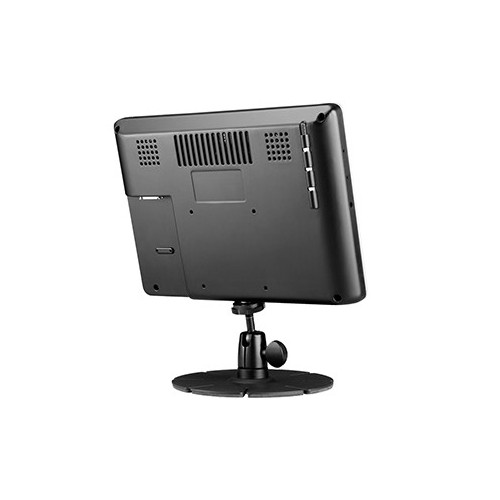

• 360° Copper Monitor Stand or U-Shape Mount
• VESA 75mm Mounting Holes
• 26-Pin Heavy-Duty Connector with Connector Locking
• Ruggedized Aluminum Casing
• Supports 9V DC ~ 36V DC
• "E" Mark Certified for Automotive use
• FCC, CE, E13 Certification
• ROHS Compliant
