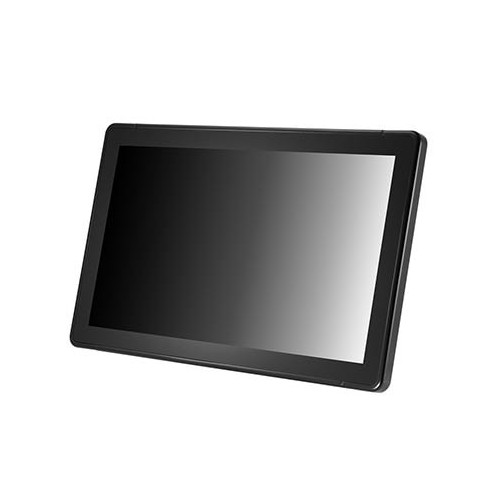

18.5" IP54 LCD Display Monitor with HDMI, DVI & VGA Inputs and Capacitive Touchscreen

The 18.5” small touchscreen monitor boasts an advanced projected capacitive touch screen functionality, built in speakers, and an IP54 rated spill and dust proof rimless front bezel.  This versatile 18.5" small monitor has DVI and VGA inputs for video, and touchscreen interfaced through USB. It has VESA standard 75mm and 100mm holes for mounting in just about any application.

Applications:

• Transportation: Naval, Avionics, Heavy Vehicles, Onboard Computer, Public Transportation
• Integration: Machine Control, Industrial Automation, Environmental Monitoring, Home Automation, Home Automation
• Selling Points: Receptions, Digital Signage, Self-Service Stations, Outdoor Totems

Specification:

• Screen Size: Diagonal 18.5"
• Physical Resolution: 1366 (H) x 768 (V)
• Supported Resolution: 640 x 480 ~ 1366 x 768
• Dot Resolution: 4098 x 768 = 3,147,264 (dots)
• Brightness: 250 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 170° Horizontal, 160° Vertical
• Response Time: 5ms (Typ.)
• Power Supply: DC 12V
• Power Consumption: 20W
• Operating Temperature: 32°F ~ 104°F
• Storage Temperature: 14°F ~ 122°F
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 472W x 292.6H x 42.8D
• Weight (kg): 5,8
• IP54 Spill and Dust Proof Rimless Front Bezel
• 250NIT Long Life LED Backlight
• Projected Capacitive (PCAP) Touch Screen (USB)
• Anti-Glare Coating
• Multi-Monitor Touchscreen Support
• DVI Input x 1, VGA Input (15 pin D-SUB) x 1
• HDMI Input through included DVI to HDMI Cable
• 1366x768 Native Resolution, 16x9 Aspect Ratio
• Solid Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• Auto Power-On upon signal detection

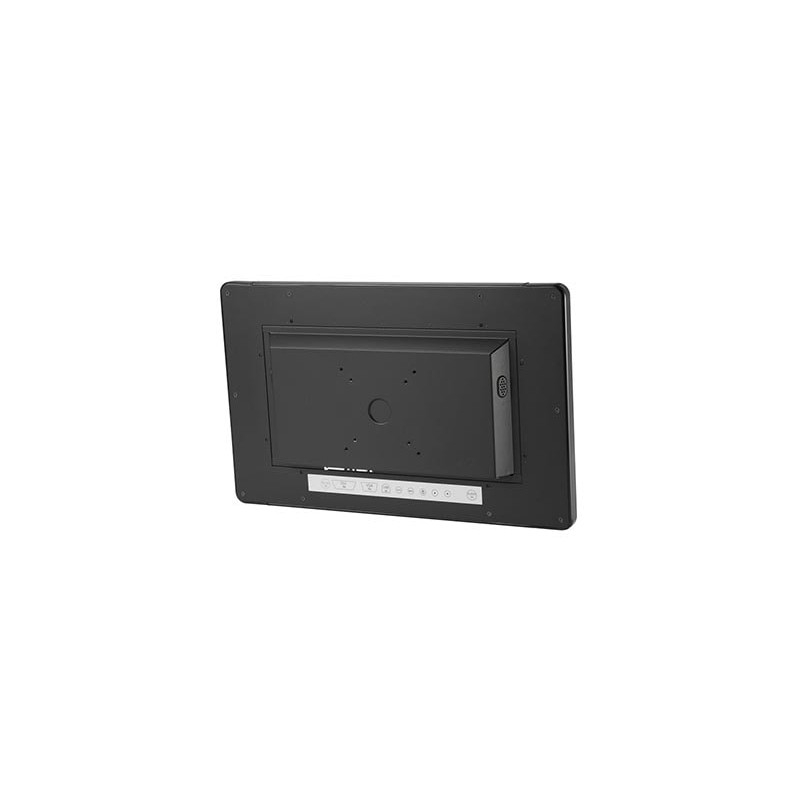

• VESA 100mm and 75mm Mounting Holes
• Ruggedized Metal Casing
• Supports 12V DC
• FCC, CE Certification
• ROHS Compliant
