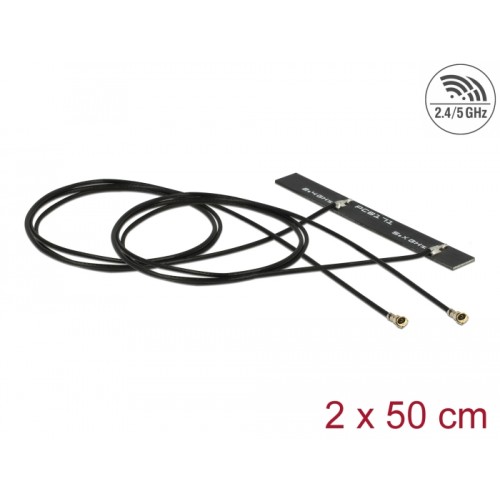

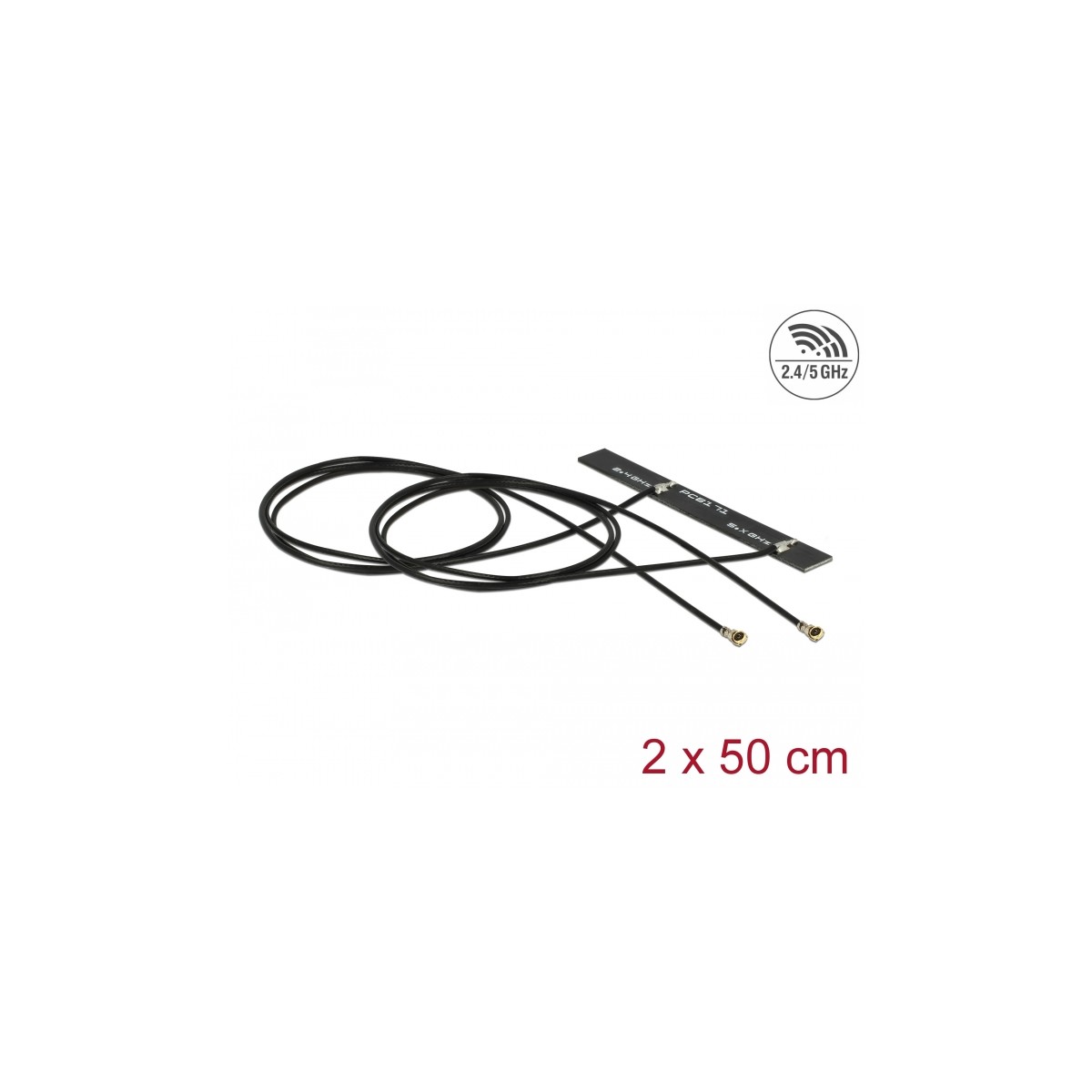

Delock WLAN 802.11 ac/a/h/b/g/n Twin Antenna 2 x MHF® 4L plug 3 - 5 dBi 1.13 2 x 50 cm PCB internal self adhesive
Delock WLAN 802.11 ac/a/h/b/g/n Twin Antenna 2 x MHF® 4L plug 3 - 5 dBi 1.13 2 x 50 cm PCB internal self adhesive

Delock WLAN 802.11 ac/a/h/b/g/n Twin Antenna 2 x MHF® 4L plug 3 - 5 dBi 1.13 2 x 50 cm PCB internal self adhesive

89933
New
€11.23
tax excl.

Do you need information or want to request a customized quote?
Click here

Fast ShippingFast and secure shipping worldwide.
Custom Industrial HardwareWe manufacture specific custom-made computers in our laboratory.​
Secure PaymentsSimple, easy, and secure payment methods.
Certified StoreStore with ISO 9001 & 14001, IQNET, ESG AA- certification.


Description
This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

Specification
• Connector: 2 x MHF® 4L plug
• Frequency range:
 2400 - 2500 MHz
 5150 - 5850 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 3 - 5 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FPC
• Colour: black
• Cable: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 2.5 dB @ 2400 MHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 61.60 x 7.00 x 1.60 mm
• Length incl. connectors (L): 2 x ca. 50 cm

System requirements
• Device with two free MHF® 4L connectors

Package content
• Antenna

Package
• Poly bag

New
4043619899333
