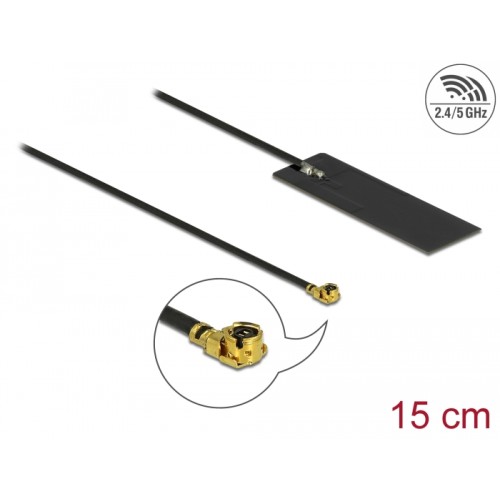

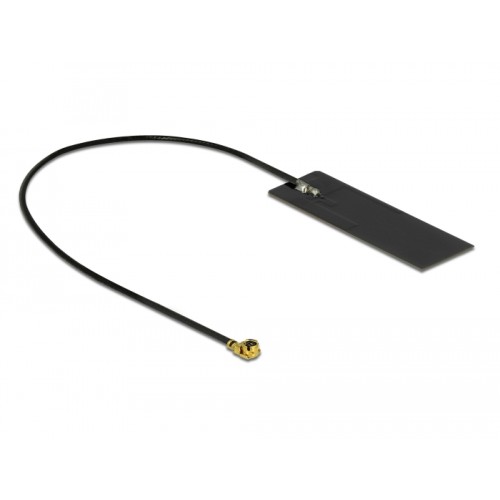

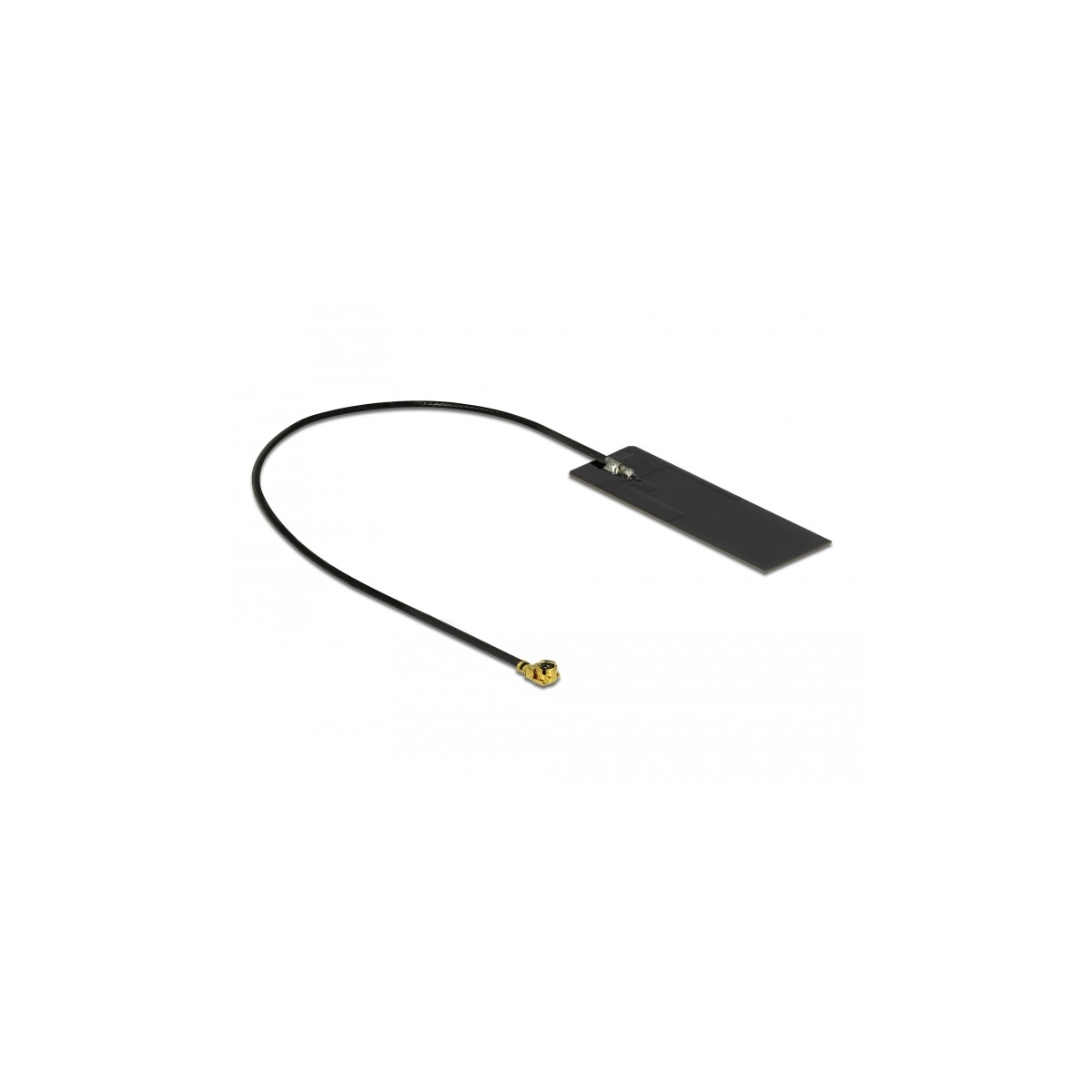

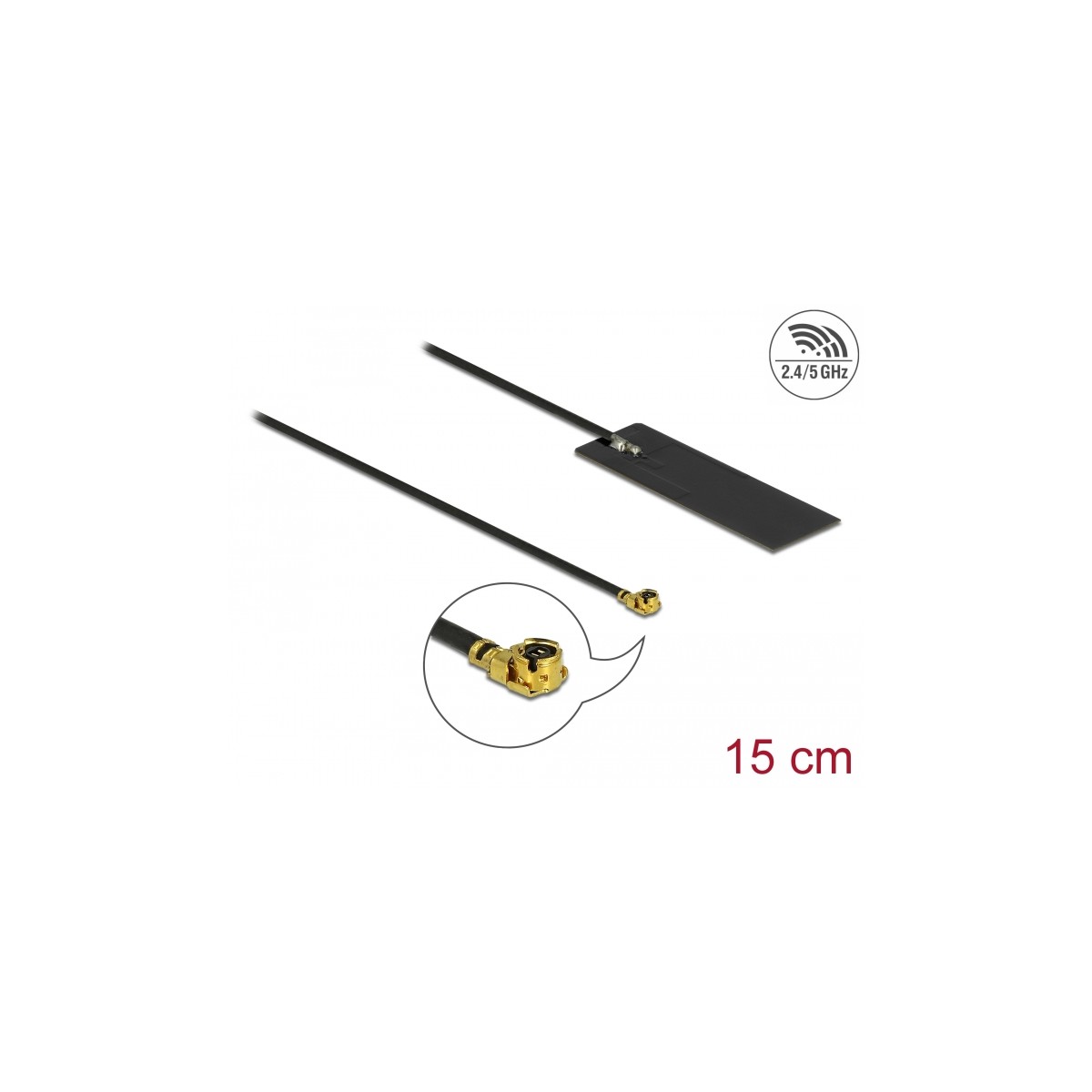

Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenna MHF® I plug 2 - 4 dBi 15 cm PCB internal self adhesive

Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenna MHF® I plug 2 - 4 dBi 15 cm PCB internal self adhesive

Name: Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenna MHF® I plug 2 - 4 dBi 15 cm PCB internal self adhesive
Brand: Delock
SKU: 12608
Price: 7.24 EUR
Availability: InStock

Reference 12608

Condition New

€7.24

tax excl.

Do you need information or want to request a customized quote?
Click here

Fast ShippingFast and secure shipping worldwide.

Custom Industrial HardwareWe manufacture specific custom-made computers in our laboratory.

Secure PaymentsSimple, easy, and secure payment methods.

Certified StoreStore with ISO 9001 & 14001, IQNET, ESG AA- certification.

Description
Product Details

Description
This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

Specification
• Connector: 1 x MHF® I plug
• Frequency range:
2400 MHz - 2500 MHz
5150 MHz - 5875 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 2 - 4 dBi
• VSWR: 2.5
• Impedance: 50 Ohm
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Housing material: FR4
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxW): ca. 44.5 x 14.0 mm
• Cable length incl. connector: ca. 15 cm

System requirements
• Device with one free MHF® I port

Package content
• Antenna

Package
• Poly bag

Condition New

EAN13 4043619126088
