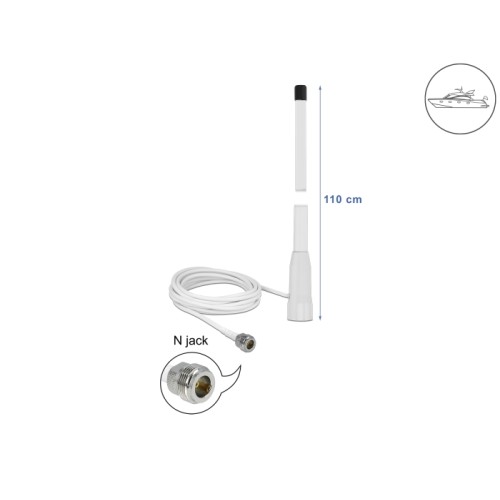

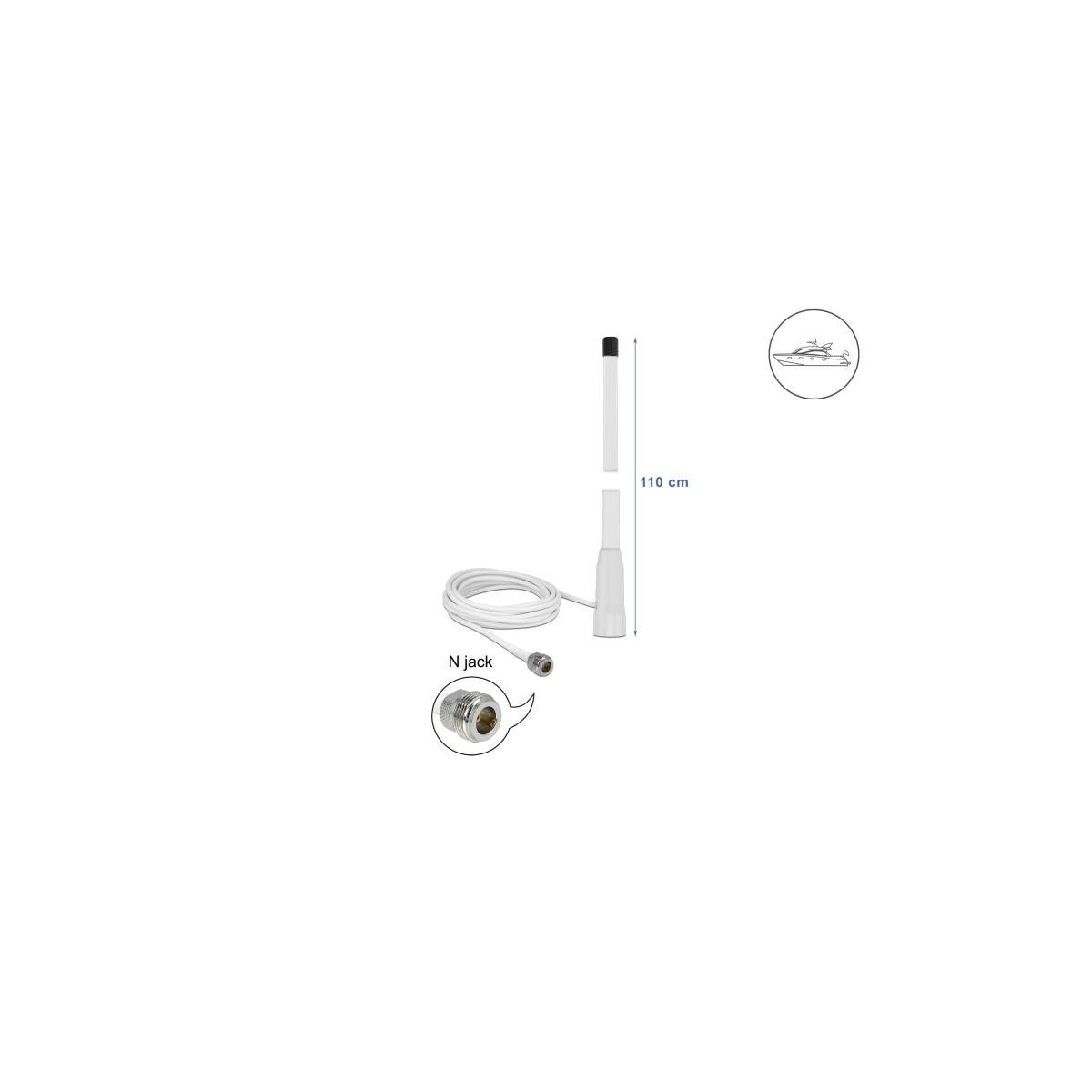

Delock WLAN 802.11 b/g/n Marine Antenna N jack 10 dBi 110.5 cm fixed omnidirectional with connection cable RG-58 U 3 m outdoor w
12576
New
Description
This antenna by Delock allows the usage of the 2.400 GHz band indoors and outdoors. It is completely compatible to Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz and ISM 2.400 GHz. The material is particularly weather resistant.
Specification
• Connector: 1 x N jack
• Frequency range: 2.400 - 2.500 GHz
• Bluetooth, WLAN 2.400 GHz, ZigBee 2.400 GHz, ISM 2.400 GHz
• Antenna gain: 10 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 47°
• Operating temperature: -50 °C ~ 80 °C
• Housing material: GFRP
• Colour: white
• Cable: coaxial
• Cable type: RG-58 U
• Cable attenuation:
0.57 dB @ 1.0 GHz per meter
1.20 dB @ 3.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Cable length incl. connector: ca. 3.0 m
• Weight: ca. 0.5 kg
• Dimensions (L): ca. 1.105 m
System requirements
• Device with one free N port
Package content
• Antenna
Package
Roll
New
4043619125760
