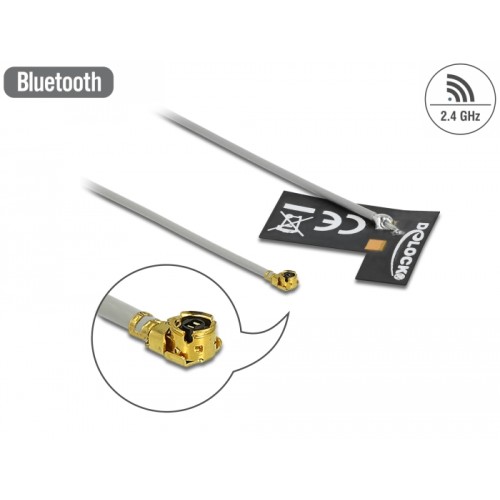

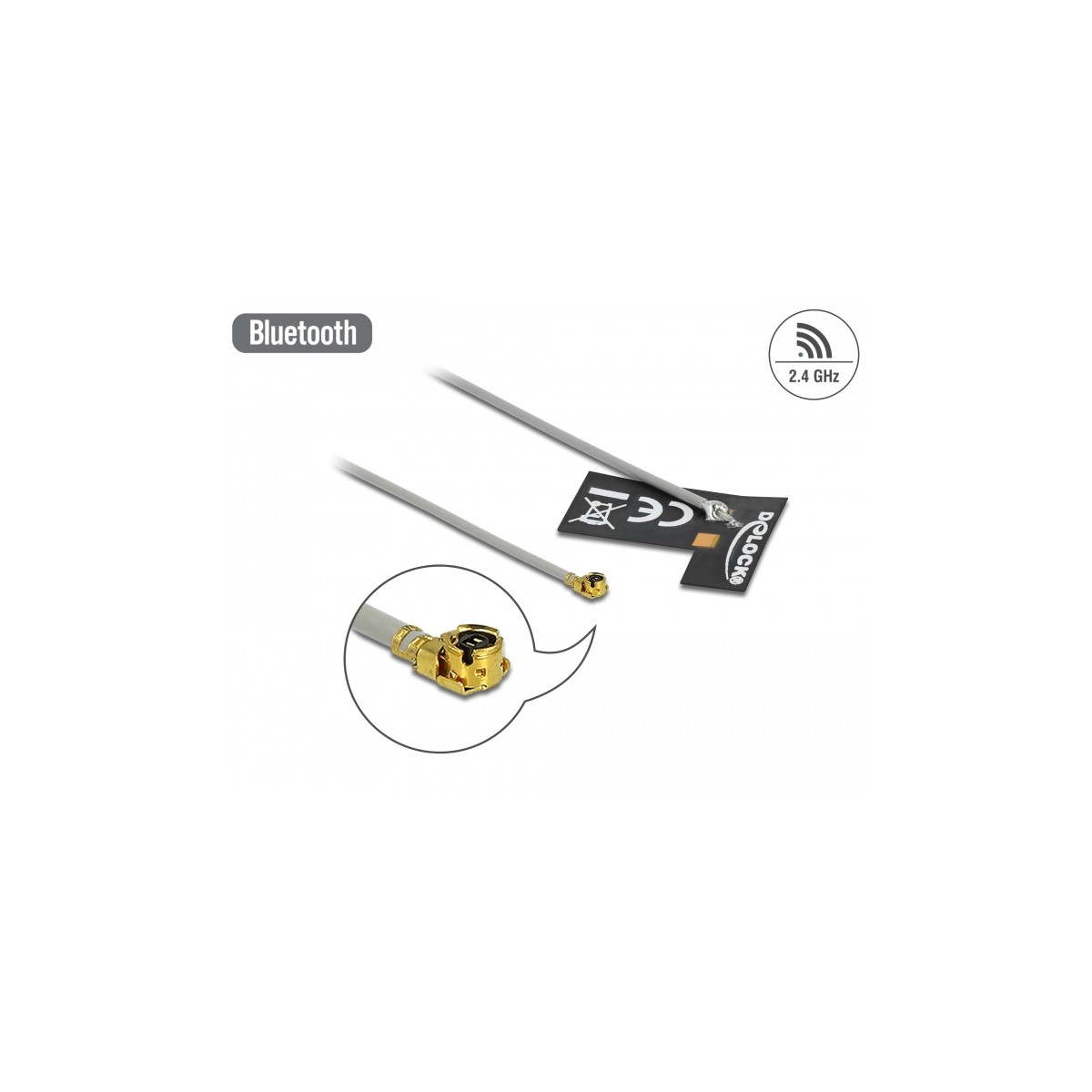

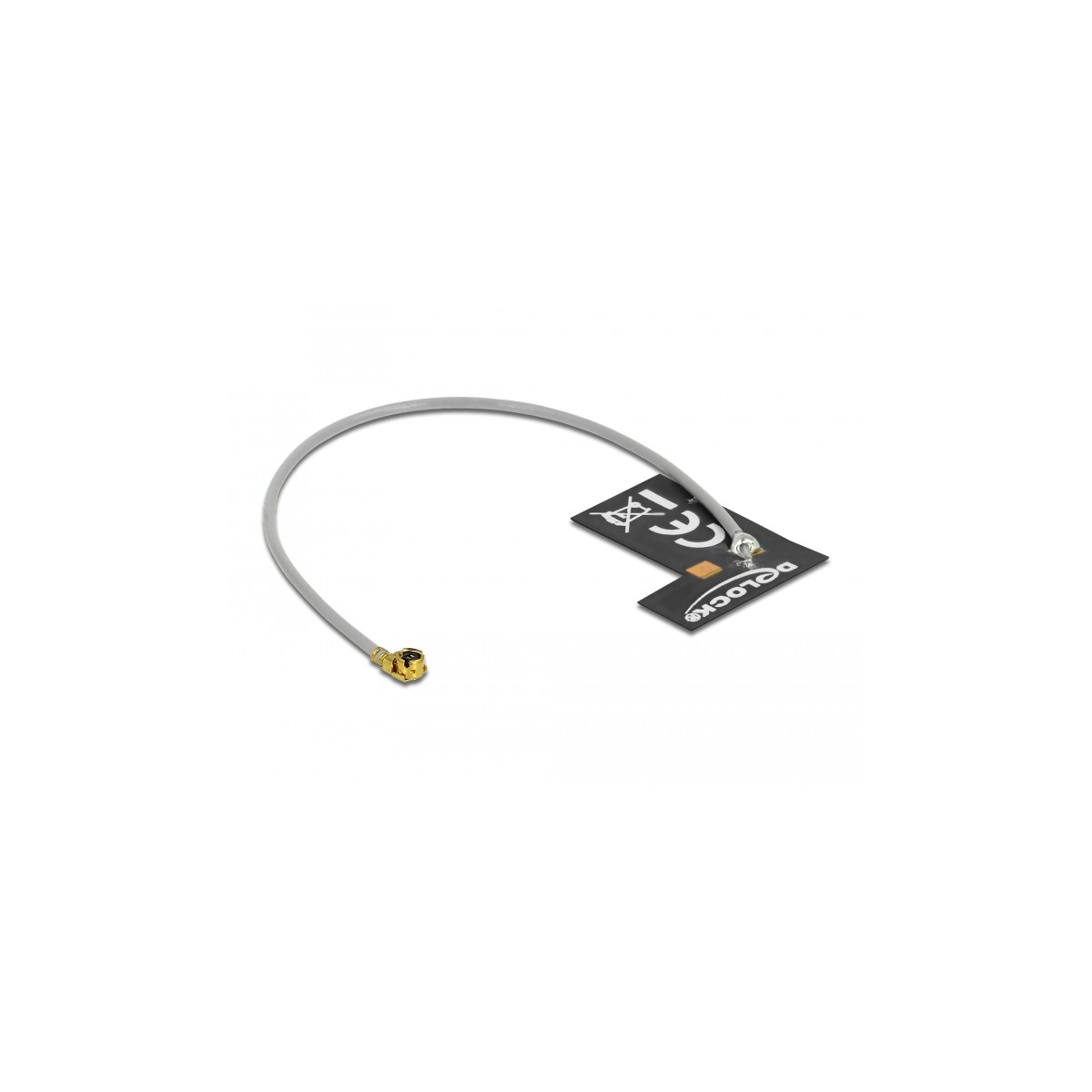

Delock WLAN 802.11 b/g/n Antenna I-PEX Inc., MHF® I plug 2 dBi 1.13 10 cm FPC internal self-adhesive
12693
Nuovo
Description
This antenna by Delock allows the usage of the 2.4 GHz band indoors.
Specification
• Connector: 1 x I-PEX Inc., MHF® I plug
• Frequency range: 2400 MHz - 2500 MHz
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 2 dBi
• VSWR: 2.5
• Impedance: 50 Ohm
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 70 °C
• Housing material: FPC
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: grey
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Cable diameter: ca. 1.13 mm
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 22 x 18 x 0.2 mm
• Cable length incl. connector: ca. 10 cm
System requirements
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
