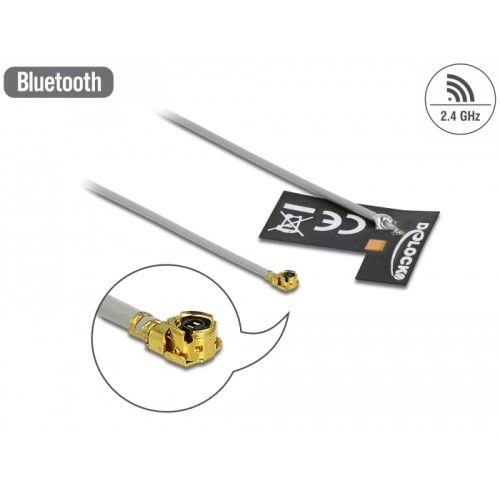

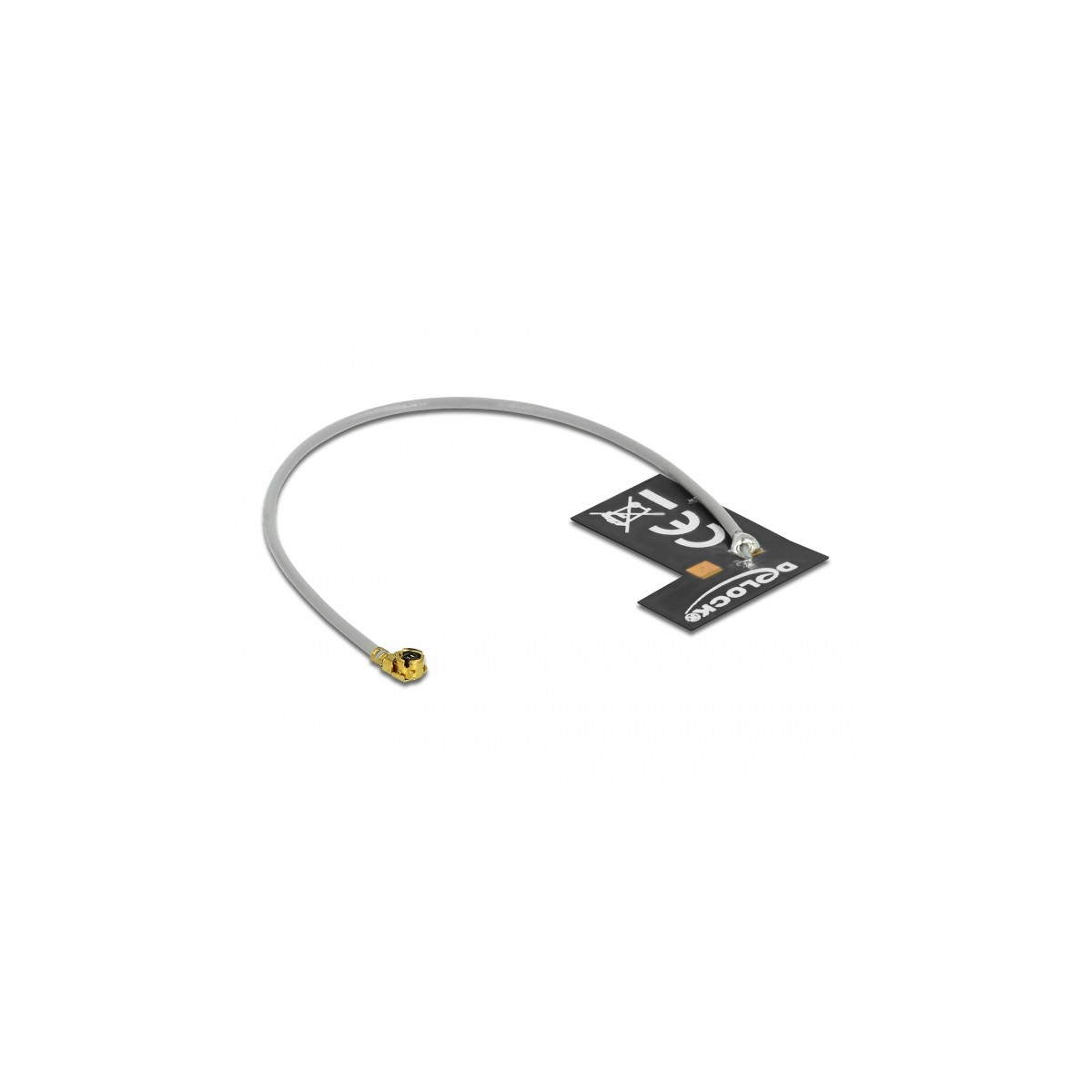

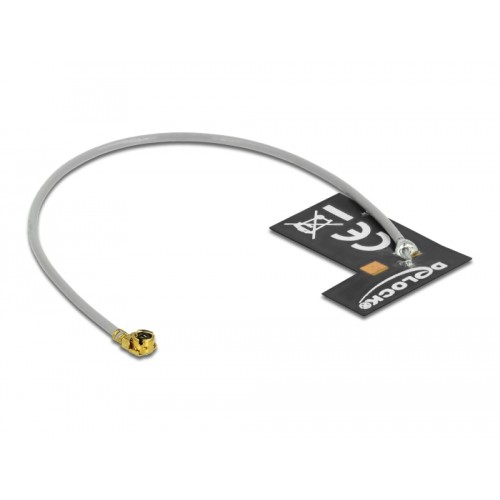

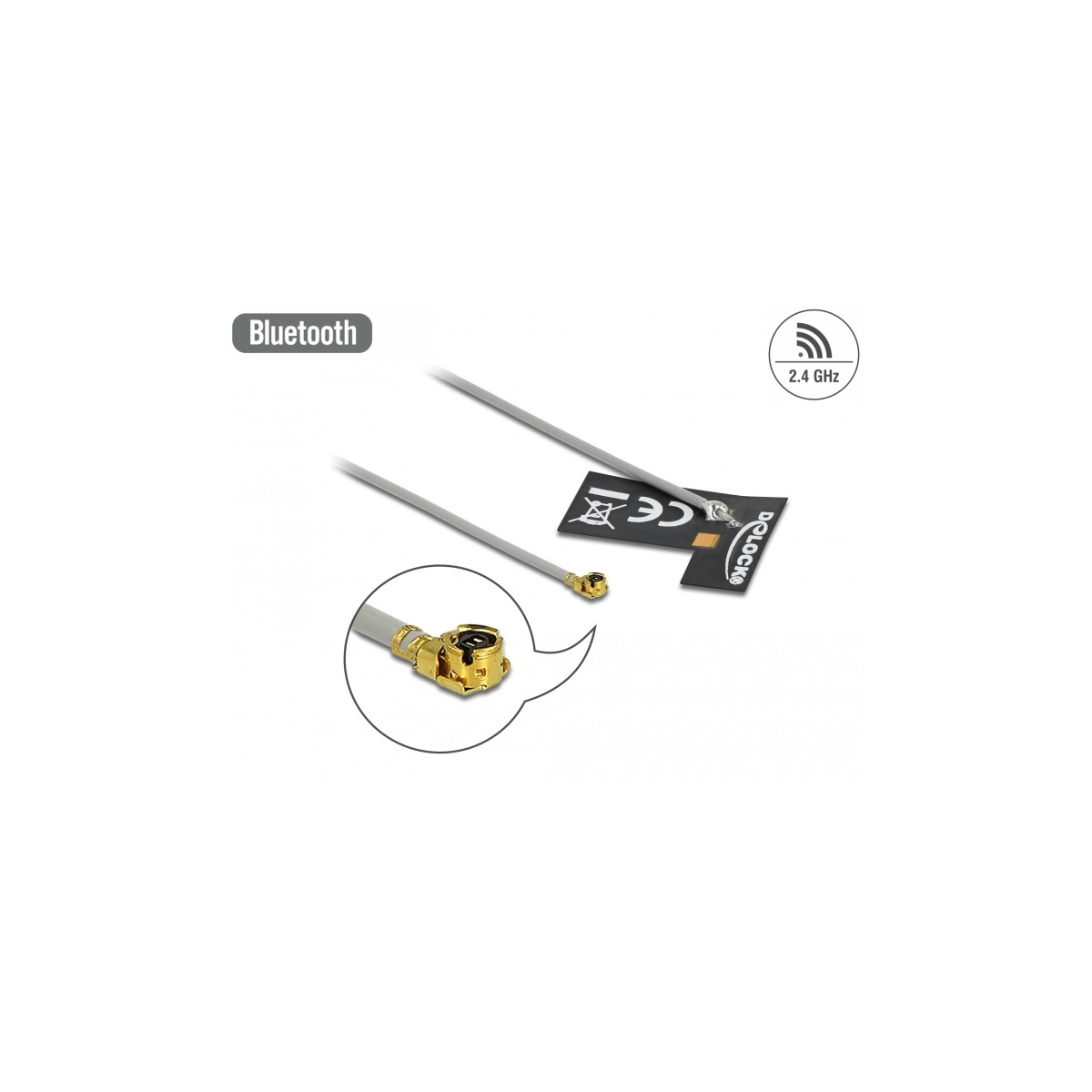

Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 1.13 10 cm FPC internal self-adhesive
Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 1.13 10 cm FPC internal self-adhesive
Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 1.13 10 cm FPC internal self-adhesive
Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 1.13 10 cm FPC internal self-adhesive

Delock WLAN 802.11 b/g/n Antenna MHF® I plug 2 dBi 1.13 10 cm FPC internal self-adhesive

12693
New
€4.18
tax excl.

Do you need information or want to request a customized quote?
Click here

Fast ShippingFast and secure shipping worldwide.
Custom Industrial HardwareWe manufacture specific custom-made computers in our laboratory.​
Secure PaymentsSimple, easy, and secure payment methods.
Certified StoreStore with ISO 9001 & 14001, IQNET, ESG AA- certification.


Description

This antenna by Delock allows the usage of the 2.4 GHz band indoors.



Specification

• Connector: 1 x MHF® I plug
• Frequency range: 2400 MHz - 2500 MHz
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 2 dBi
• VSWR: 2.5
• Impedance: 50 Ohm
• Mounting type: self-adhesive
• Operating temperature: -10 °C ~ 70 °C
• Housing material: FPC
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: grey
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Cable diameter: ca. 1.13 mm
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 22 x 18 x 0.2 mm
• Cable length incl. connector: ca. 10 cm



System requirements

• Device with one free MHF® I port



Package content

• Antenna



Package

• Zip poly bag

New
4043619126934
